Description
TC-R/S Breakout for RED DSMC3
The TC-R/S is our Timecode IN + Run/Stop (Record/Stop) for RED KOMODO OG, KOMODO X, V-RAPTOR and V-RAPTOR X cameras and feeds timecode and R/S triggering via the 9pin EXT port on DSMC3 cameras).
|
Features for TC-R/S BNC version:
BNC Timecode IN
Fischer 3 R/S port (pin 1 = Ground, Pin 2 = N/C, Pin 3 = R/S
6″ Multi-terminal cable built in
1/4-20 through hole for mounting
2x M3 threaded locating pin holes with spacing for ⌀15mm and ⌀10.4mm(ARRI) standards
Includes 1x 1/4-20 mounting captive screw and 1x removable locating pin 1.5mm
|

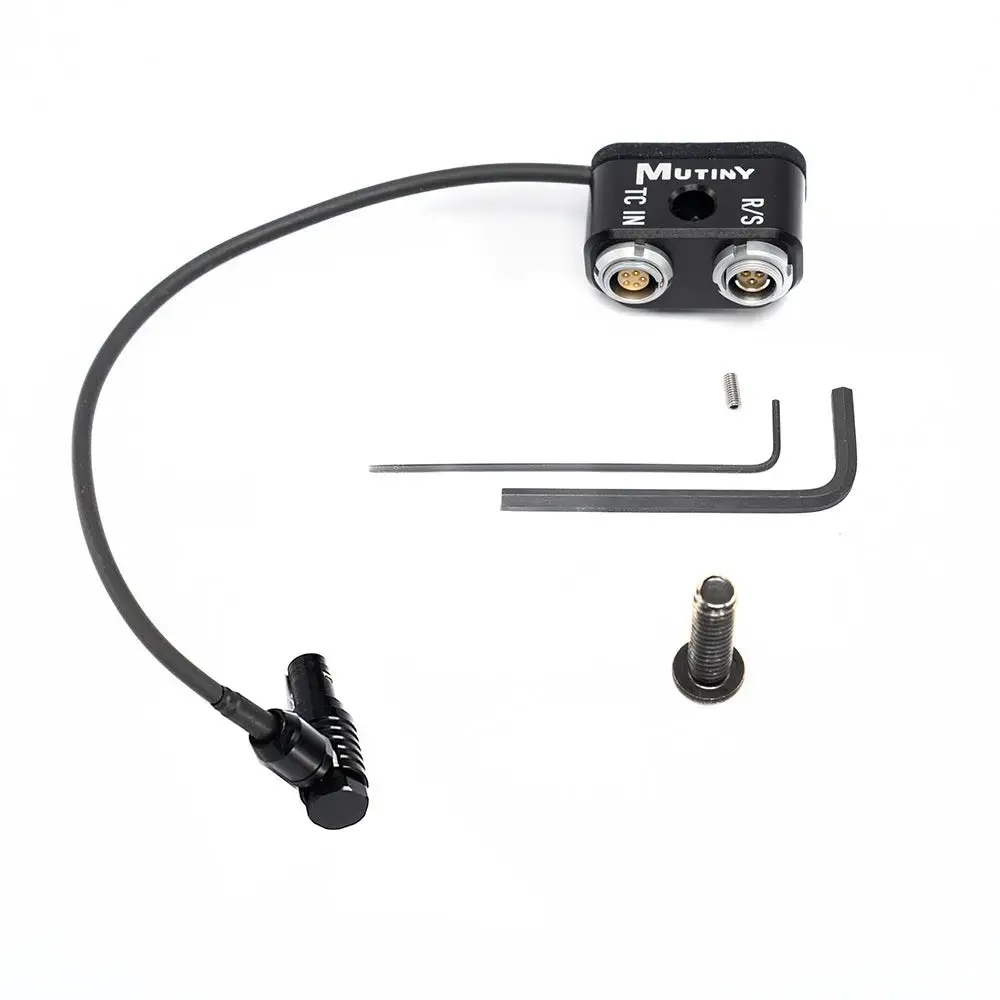

Features for TC-R/S 5pin version:
5pin 0B Timecode IN port
Fischer 3 R/S port (pin 1 = Ground, Pin 2 = N/C, Pin 3 = R/S
6″ Multi-terminal cable built in
1/4-20 through hole for mounting
2x M3 threaded locating pin holes with spacing for ⌀15mm and ⌀10.4mm(ARRI) standards
Includes 1x 1/4-20 mounting screw and 1x removable locating pin 1.5mm
Size: L=1.3″ x W=0.7″ x D=1″
|
|
