TC-R/S Breakout for FX2/ FX3 / FX30 / A7S III
TC-R/S Breakout for FX2/ FX3 / FX30 / A7S III

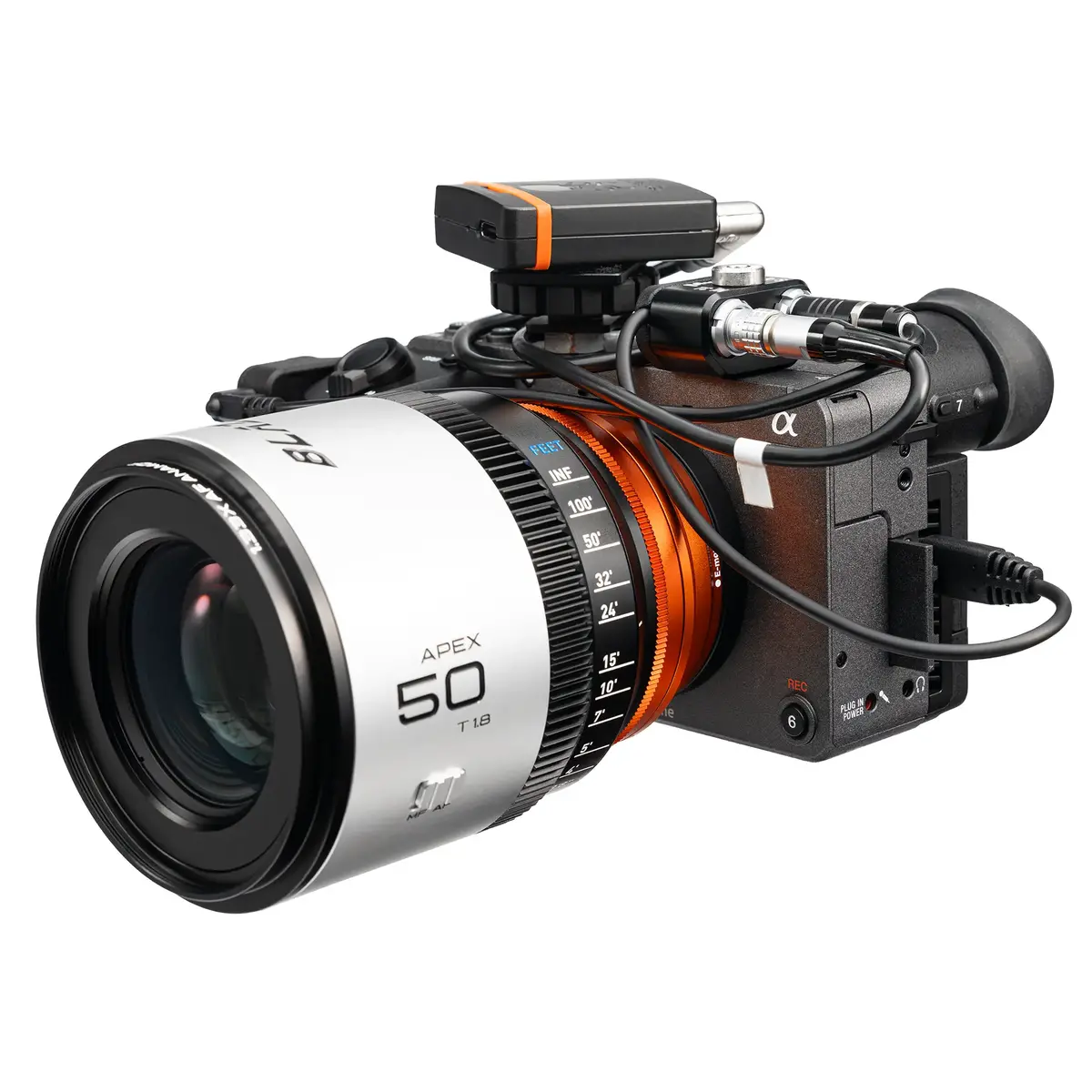

TC-R/S Breakout for FX3 / FX2 / FX30 / A7S III (with latest firmware) camera, feeds Timecode IN and R/S (remote triggering) via the multi-terminal (Multiport). Works with every FIZ wireless follow focus system (Preston, Arri, C-Motion, Nucleus, Heden, etc) as well as every timecode generator (Tentacle, Deity, Deneke, Ambient, etc). TC-R/S should trigger most sony mirrorless cameras in video mode but timecode will not work for A7S series (except mark III with latest firmware) , A9 series, A7R series etc.
|

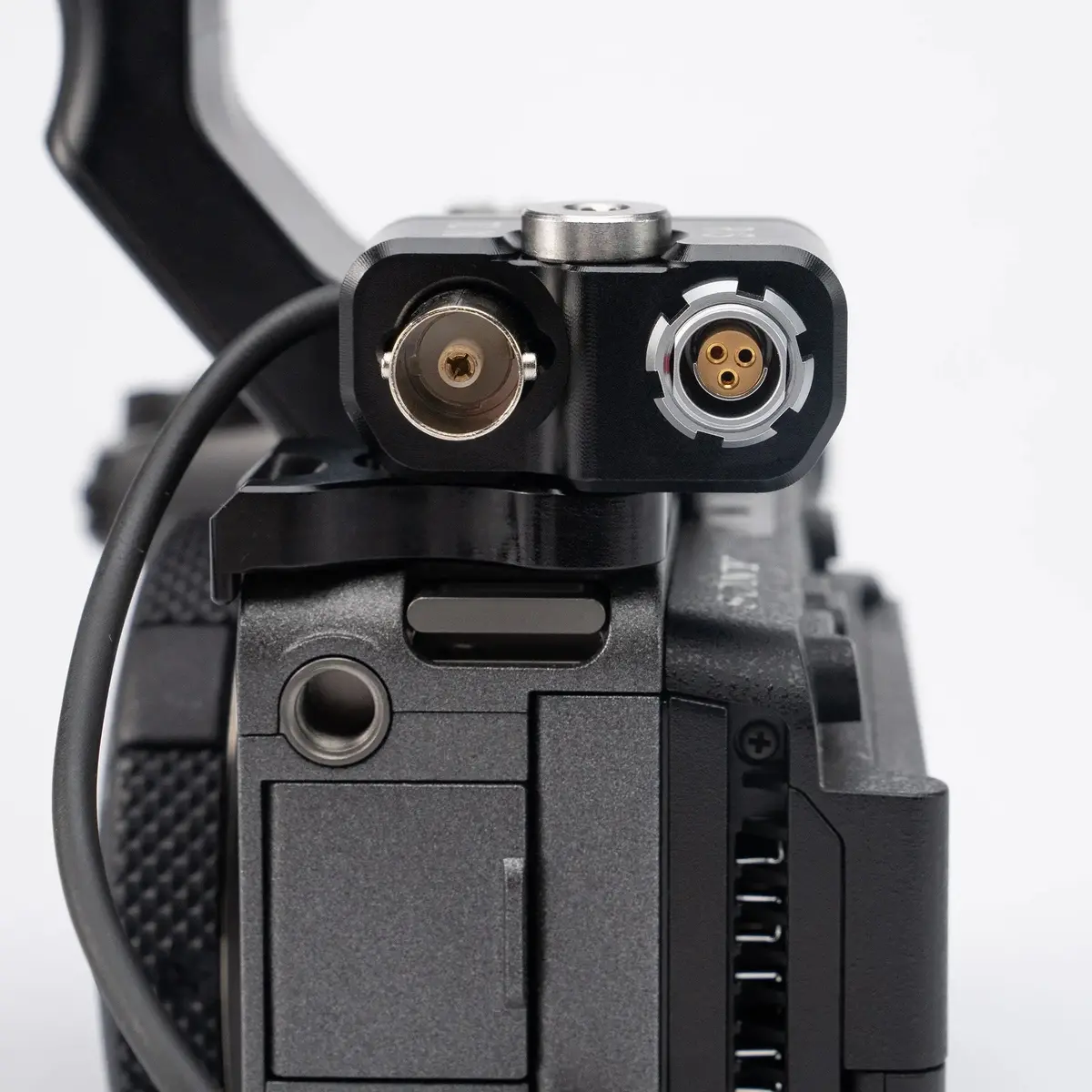

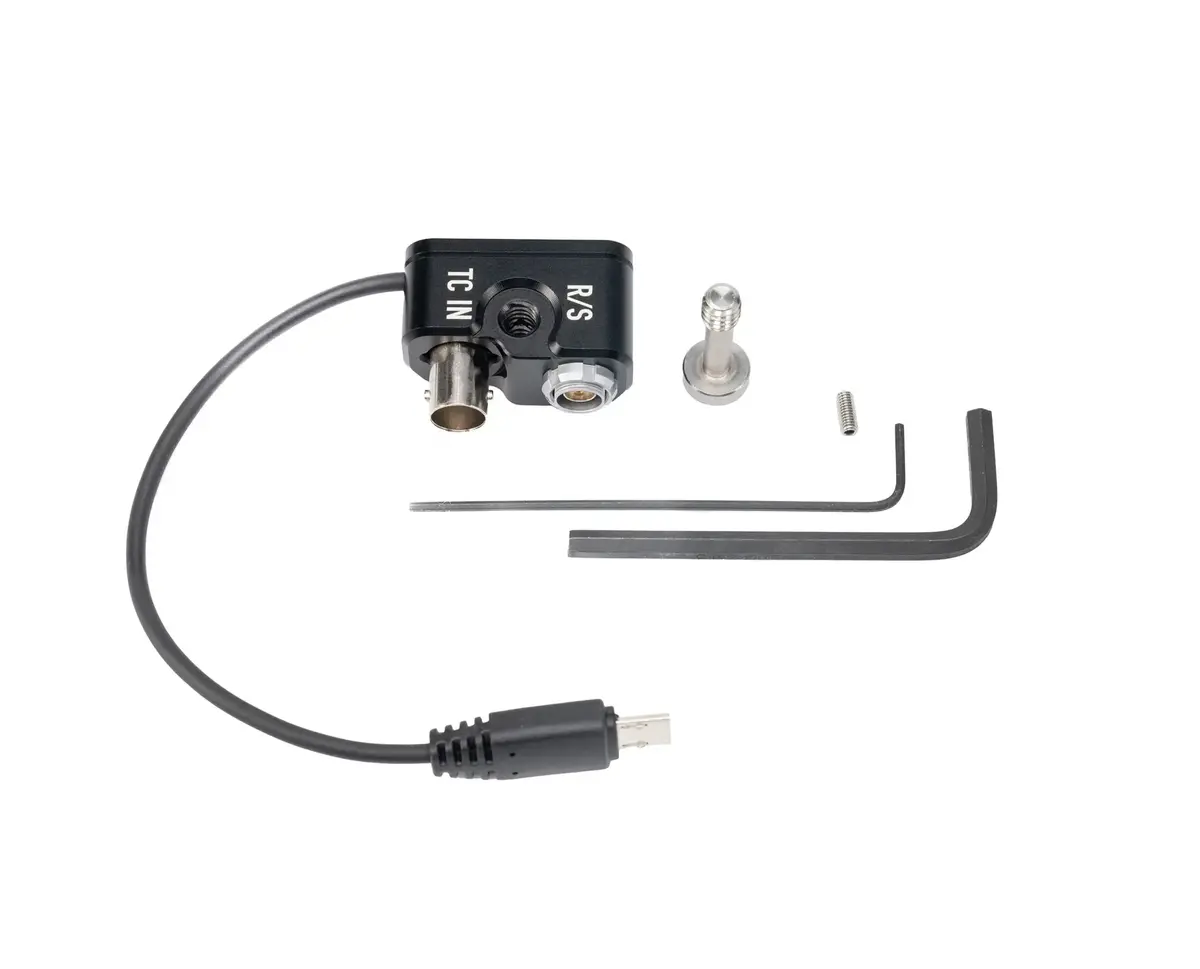

Features for TC-R/S BNC version: BNC Timecode IN Fischer 3 R/S port (pin 1 = Ground, Pin 2 = N/C, Pin 3 = R/S 6″ Multi-terminal cable built in 1/4-20 through hole for mounting 2x M3 threaded locating pin holes with spacing for ⌀15mm and ⌀10.4mm(ARRI) standards Includes 1x 1/4-20 mounting captive screw and 1x removable locating pin 1.5mm |

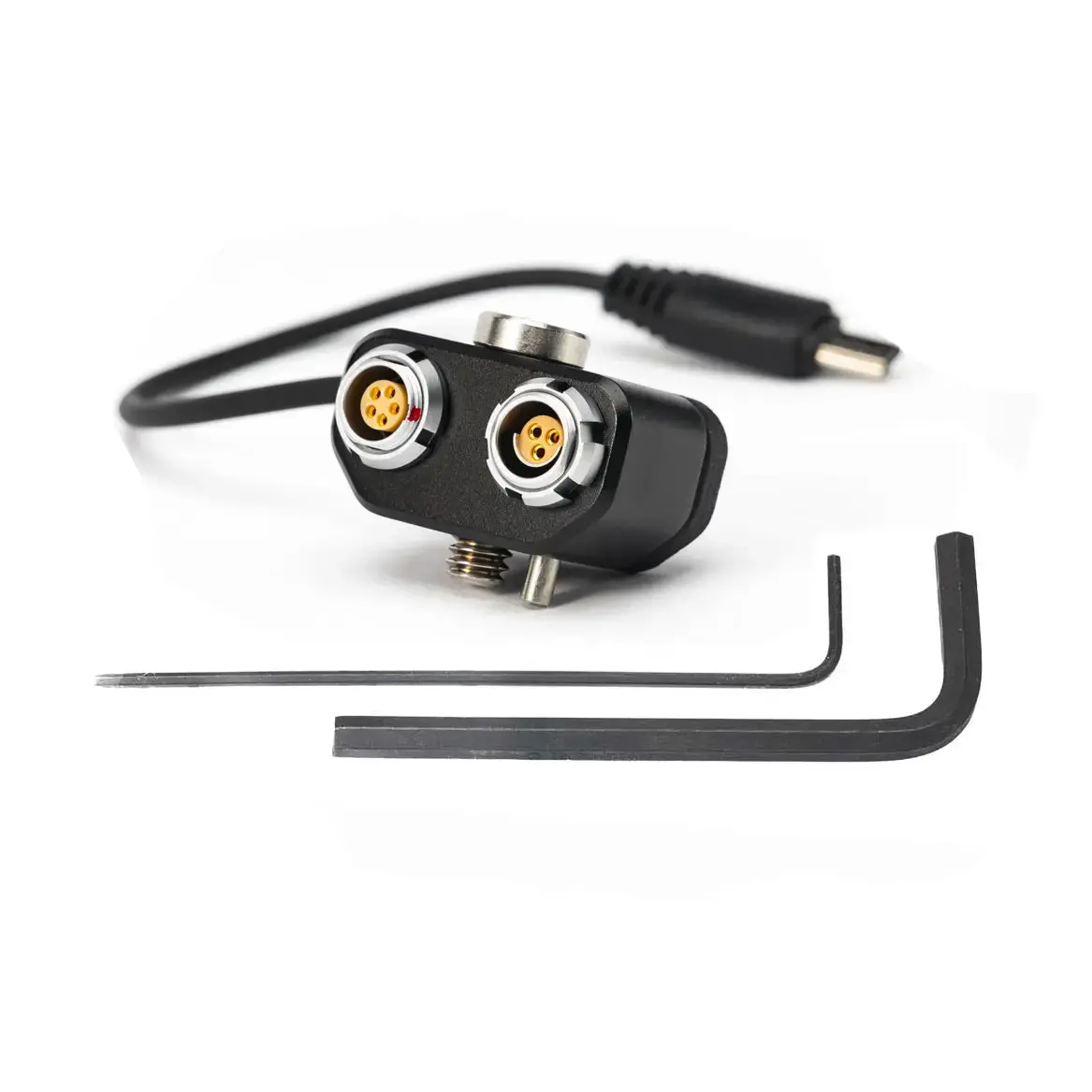

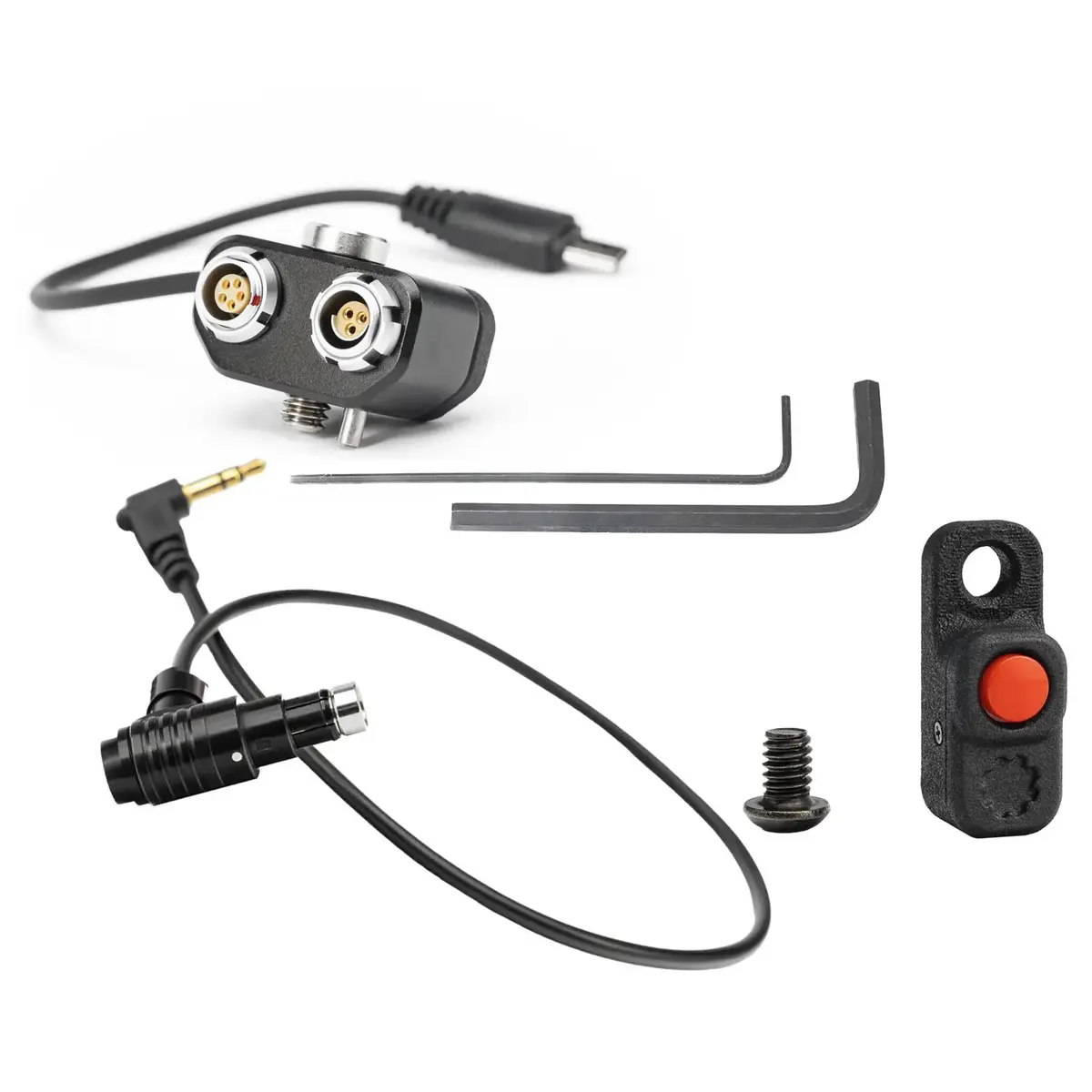

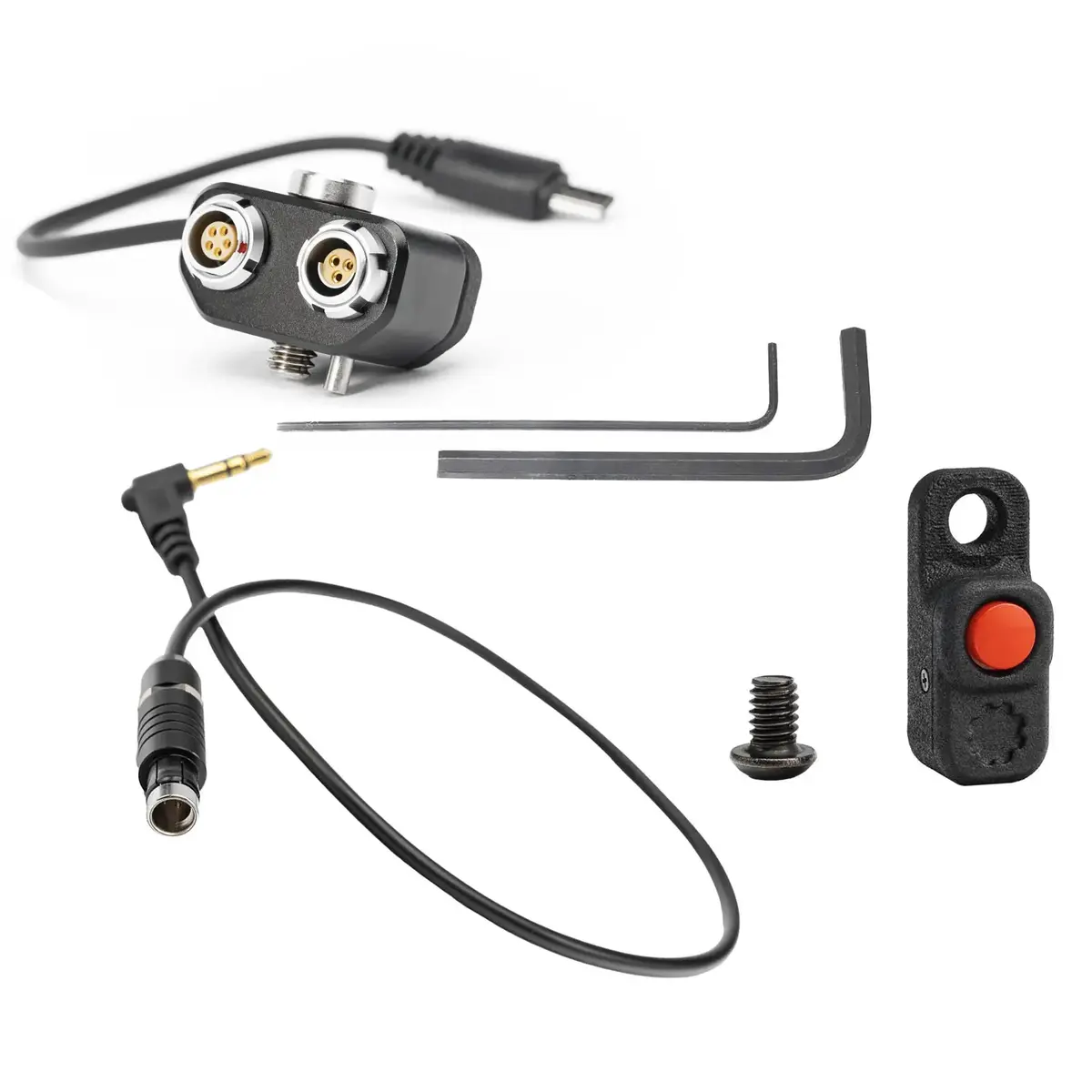

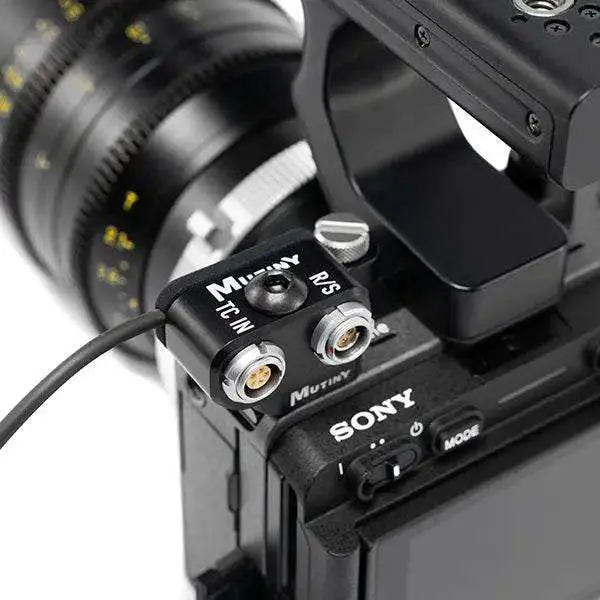

Features for TC-R/S 5pin version: 5pin 0B Timecode IN port Fischer 3 R/S port (pin 1 = Ground, Pin 2 = N/C, Pin 3 = R/S 6″ Multi-terminal cable built in 1/4-20 through hole for mounting 2x M3 threaded locating pin holes with spacing for ⌀15mm and ⌀10.4mm(ARRI) standards Includes 1x 1/4-20 mounting screw and 1x removable locating pin 1.5mm Size: L=1.3″ x W=0.7″ x D=1″
|
TC-R/S Breakout for FX3 / FX2 / FX30 / A7S III

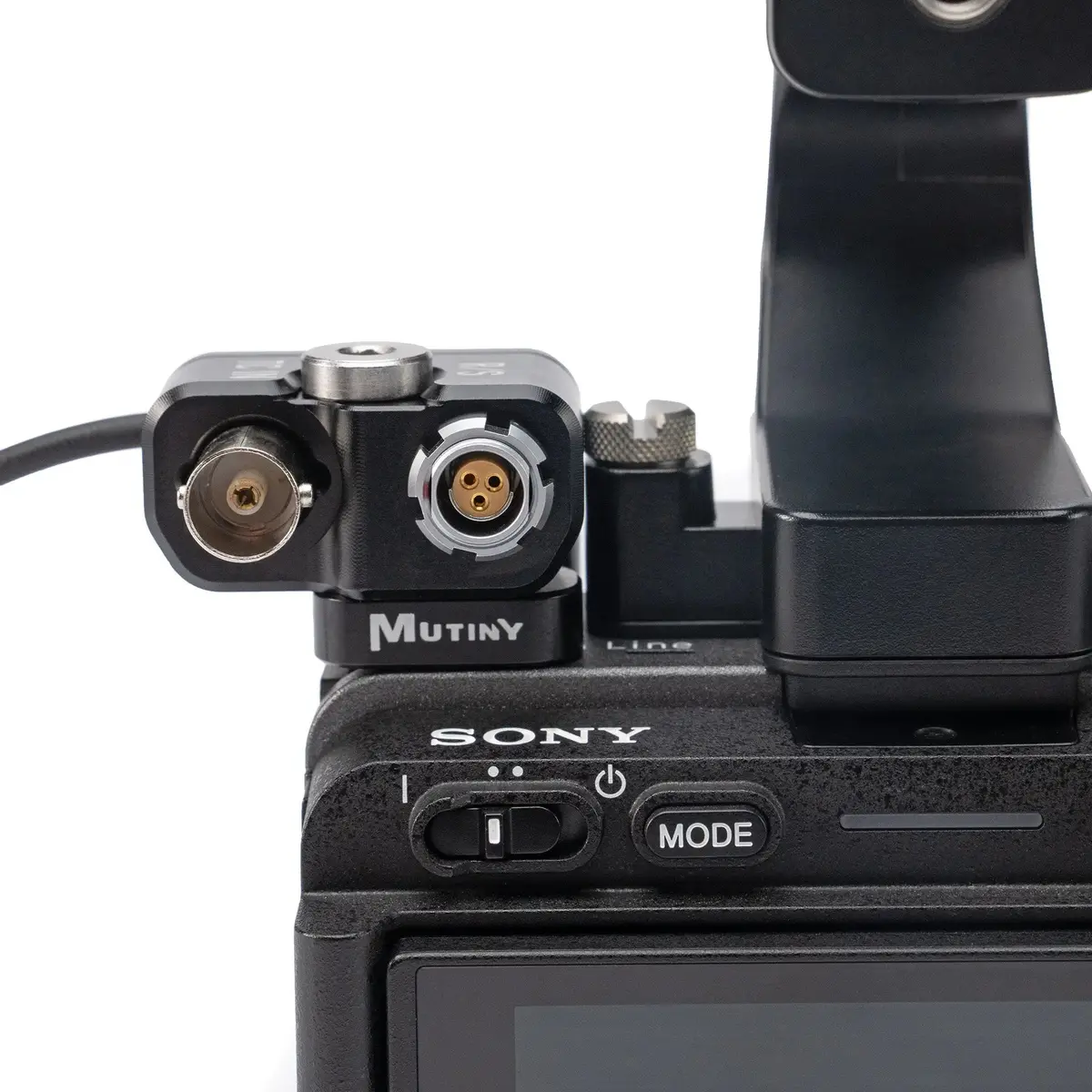

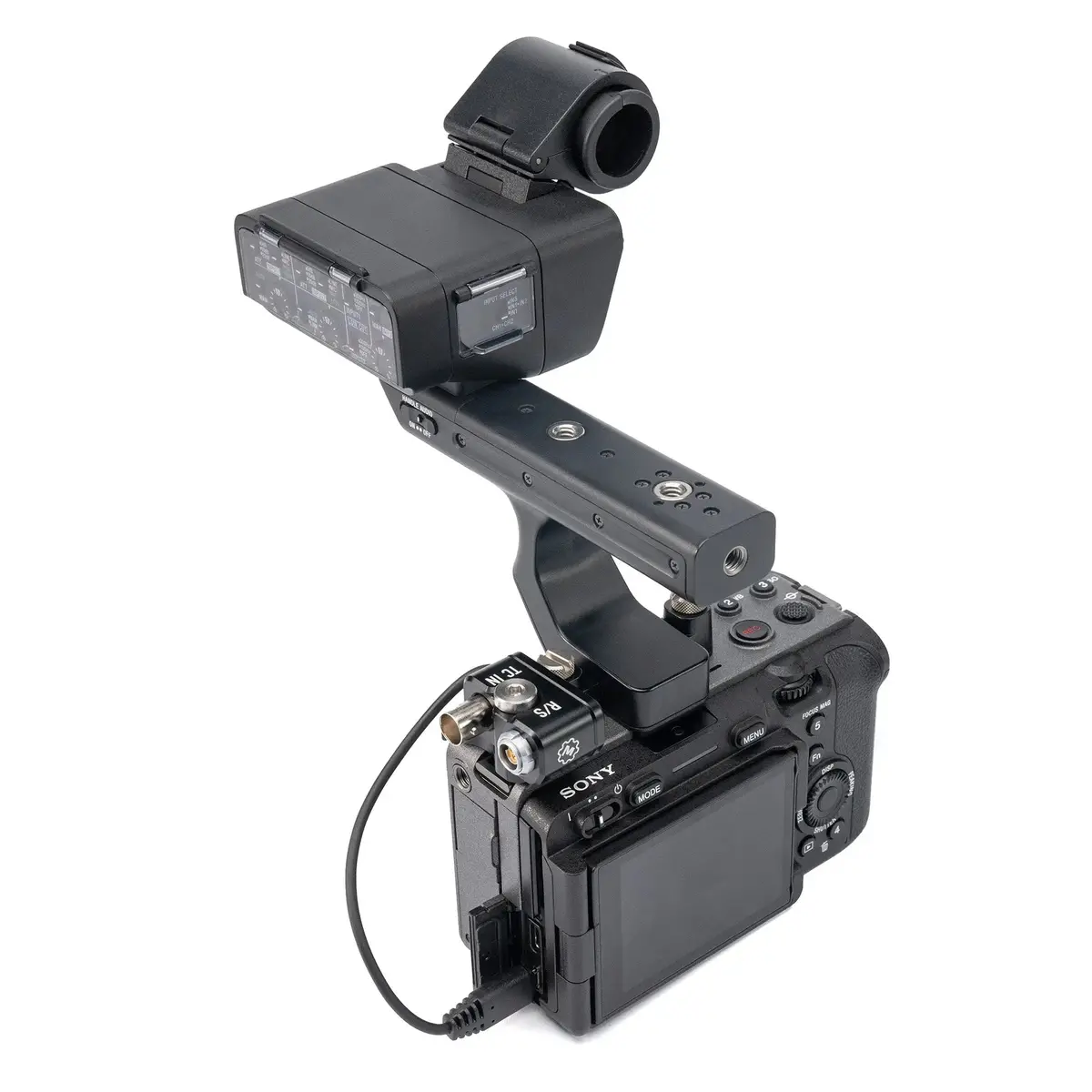

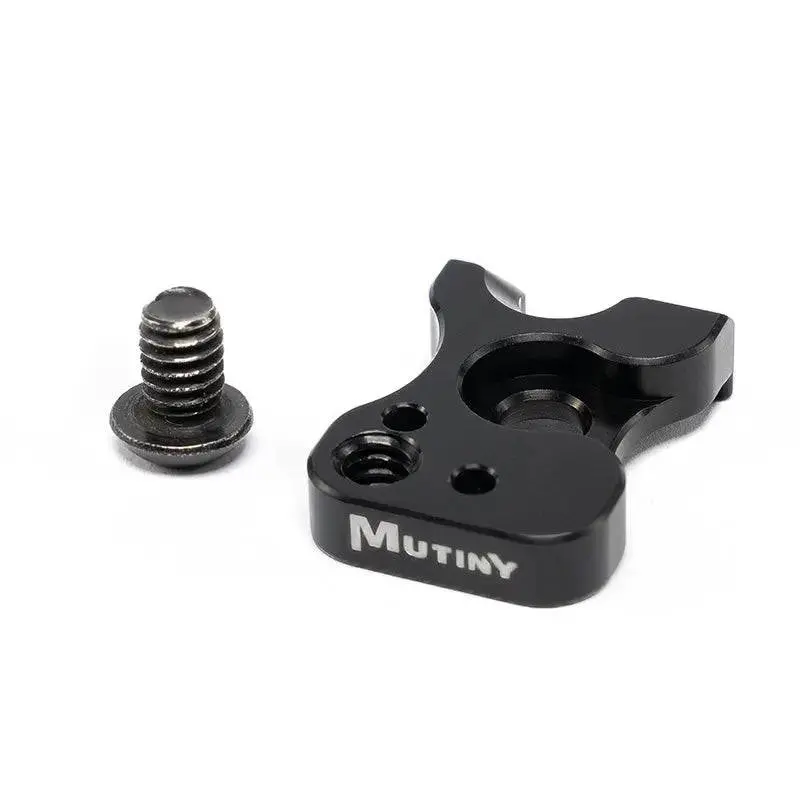

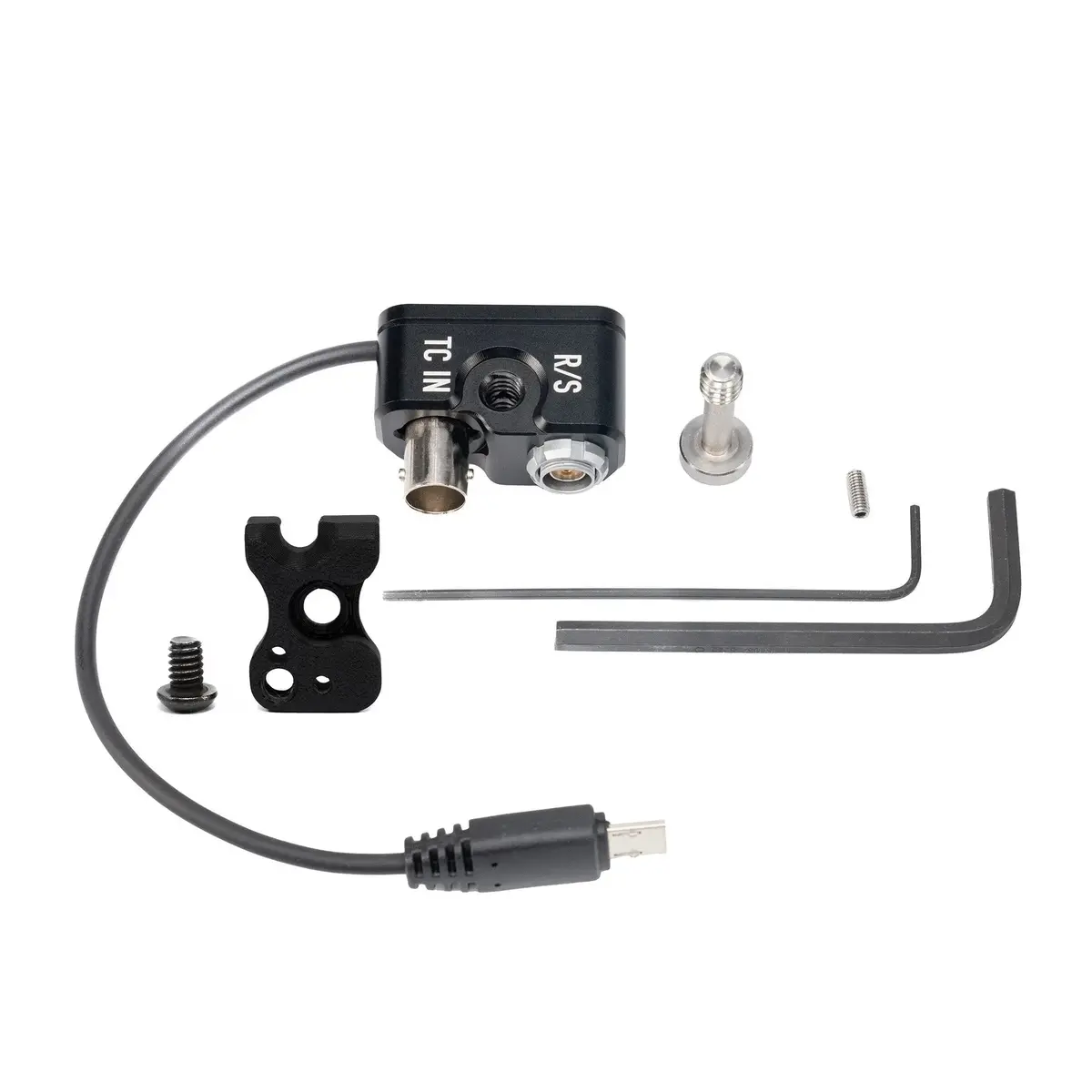

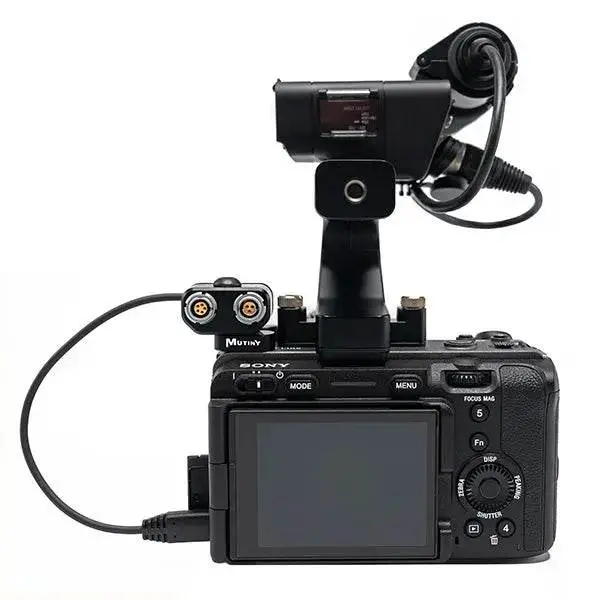

Optional is our TC-R/S Mini mounting plate for FX3/30 if you want to mount directly to those specific camera bodies and not a cage (note the mini mount will not work with FX2 or A7SIII) . This mount allows full use of the XLR and standard handle and can orient two ways.
For Timecode Change your FX3 / FX2 / FX30 / A7S III Menu Settings to:
1) In the Sony Menu select TC/UB then Timecode Run and select Free Run, and Time Code Make to Preset.
2) Set your Timecode device and camera to the same frame rate

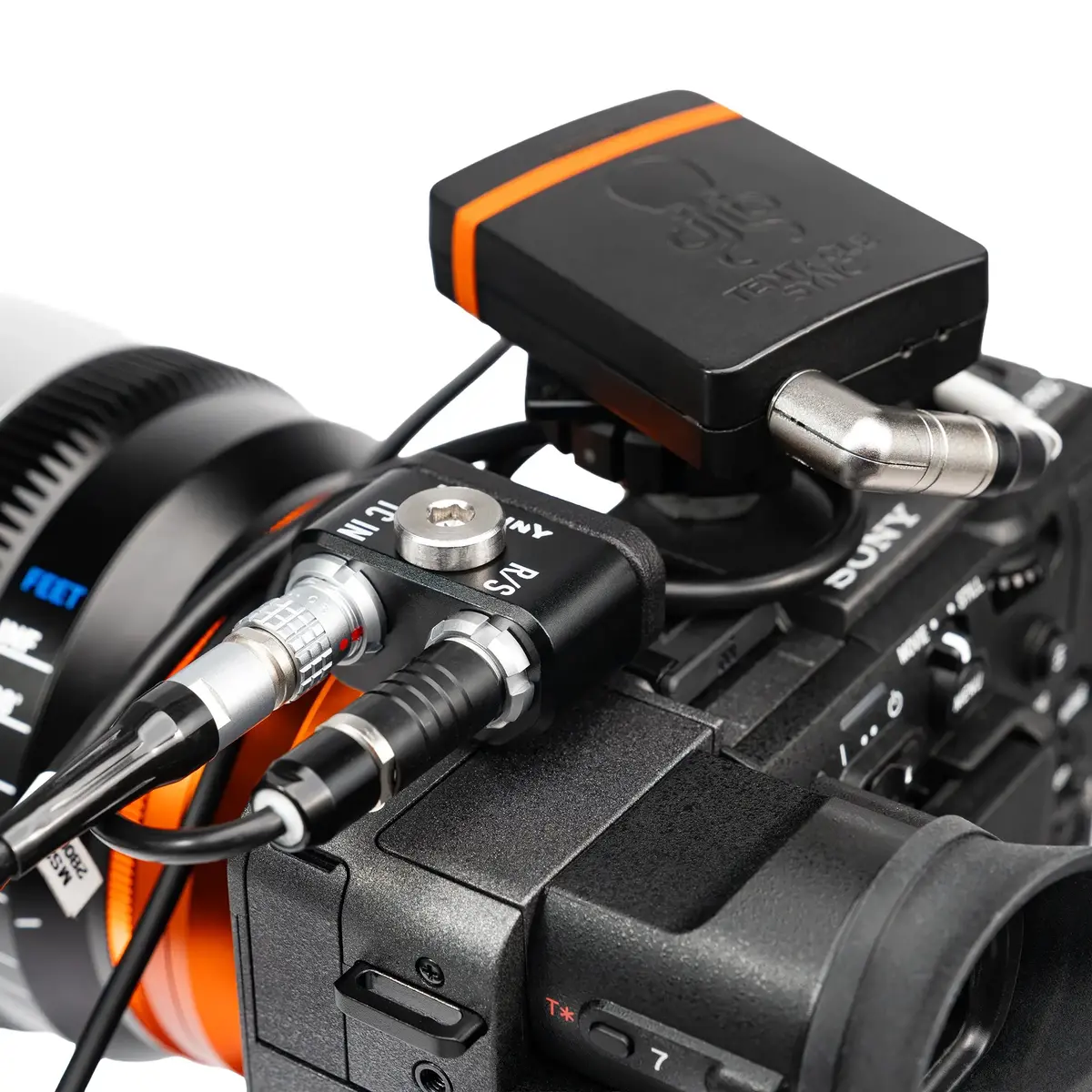

3) Connect your Timecode device (make sure you are outputting timecode and using a cable that is TC device —> Camera) to your cameras multi-terminal (multiport USB)

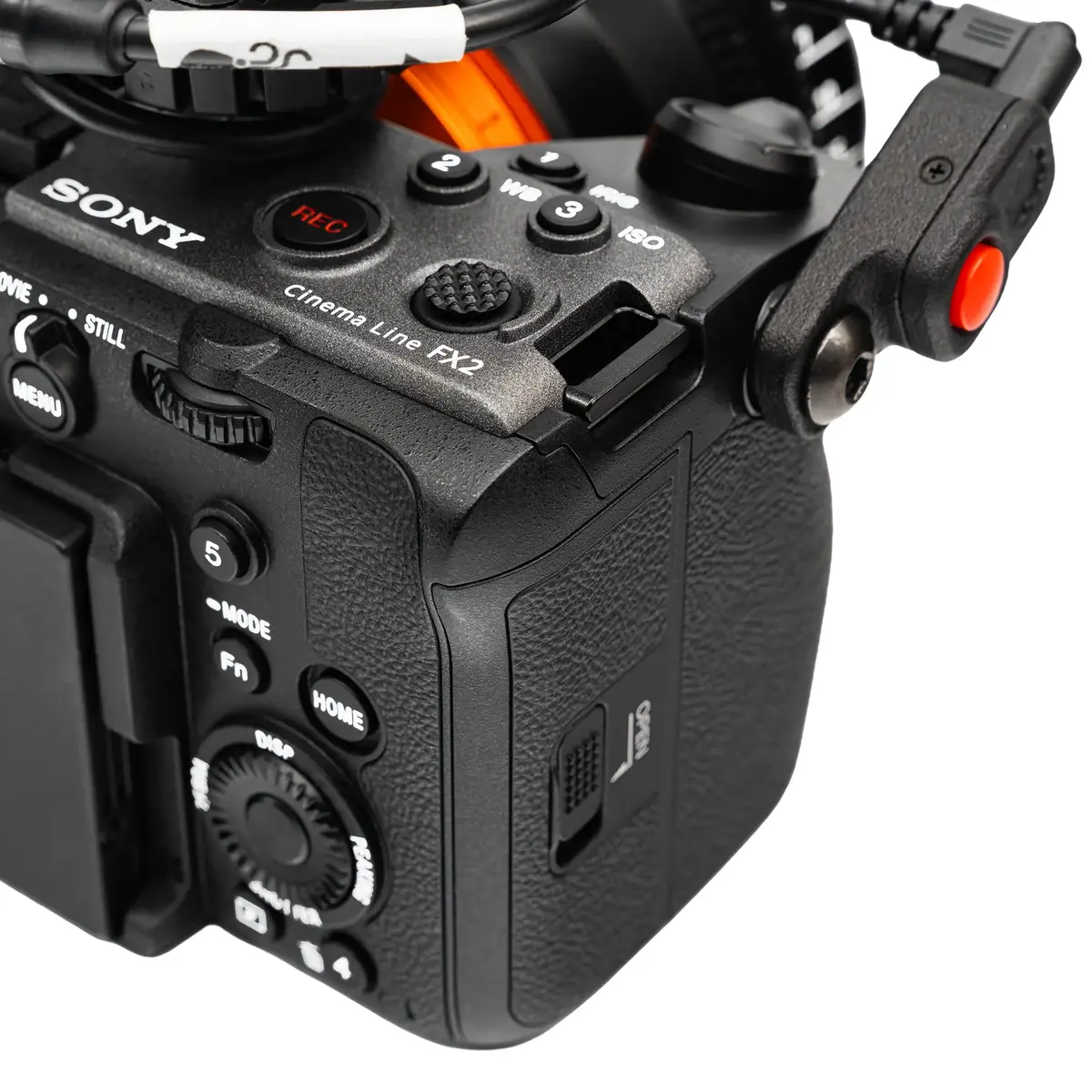

For R/S Change your FX3 / FX2 / FX30 / A7S III Menu settings to:
Menu -> Setup -> Operation Customize -> Rec w/Shutter -> On.
