Description

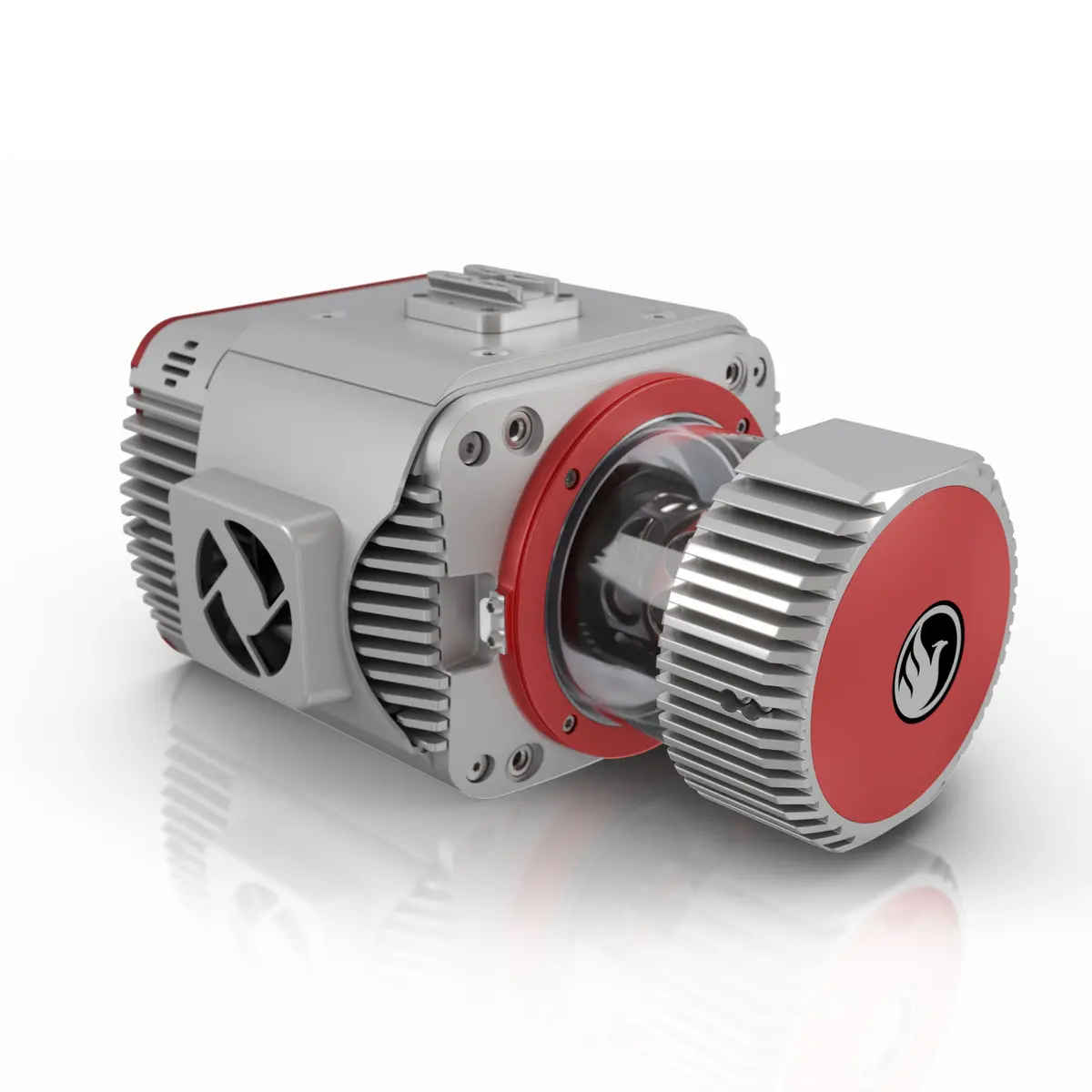

The Ranger-UAV²² Flex is Phoenix LiDAR’s most versatile system, capable of seamlessly integrating into various platforms such as backpacks, UAVs, and dual-head mobile scanning solutions. The high pulse rate measurement capability ensures exceptional precision in data collection. Whether you’re embarking on high-density UAS missions, tackling detailed mobile mapping projects, or conducting surveys with low-altitude piloted aircraft, the RRanger-UAV²² Flex is up to the task.
This system is available in UAV, VTOL, vehicle, backpack, and the ALL NEW RANGER FLEX DUAL MOBILE SYSTEM accessory configurations, depending on your needs.
Accessories & Options
Features:
- A 360° scanner FOV creates a payload designed for flexible mounting options for Backpack, UAV, and Mobile
- Class leading 10 mm range measurement accuracy
- Removable 61 MP RGB camera for UAV applications optional
- Grows with your needs – Single RANGER FLEX unit can be installed in dual scanner mobile accessory
Dimensions
Range & Point Density Examples
PRR = 400KHZ
PRR = 1200KHZ
Specs
Phoenix Recon-XT LiDAR Payload
Payload
| Dimensions |
Ranger Flex: 27.9 x 20.9 x 17.3 |
Ranger Flex w/Camera: 33.4 x 20.9 x 17.3 |
| Power Consumption | Ranger Flex: 75 W typical |
Ranger Flex w/Camera: 85 W typical |
| Weight | Ranger Flex: 4.7 kg / 10.3 lbs |
Ranger Flex w/Camera: 5.5 kg / 12.1 lbs |
| Operating Temperature | 0° – 40° C / 32° – 104° F | |
| Operating Voltage | 14 – 28 VDC |
LiDAR Sensor
| Laser Wavelength |
1550 nm |
| Range Min | 1.5 m at ≥1 MHz PRR |
| Range Max | 755 m at 20% reflectivity, 50 kHz PRR |
| Pulse Repetition Frequency | Up to 1200 kHz |
| Scan Speed | 10 – 200 lines/second |
| Max Return Count | 15 |
| Beam Divergence | 0.35 mrad @ 1/e |
| Horizontal Field of View | 360° |
| Laser Accuracy | 10 mm One sigma @ 150 m |
| Laser Safety | Class 1 |
Navigation System
| Constellation Support |
GPS + GLONASS + BEIDOU + GALILEO |
| Support Alignment | Static, Kinematic, Dual-Antenna |
| Operation Modes | Real-time, Post-Processed |
| Position Accuracy | 1 cm + 1 ppm GNSS baseline RMS horizontal |
| Attitude Accuracy | Roll, Pitch: 0.002° RMS Heading: 0.007° RMS |
