Description

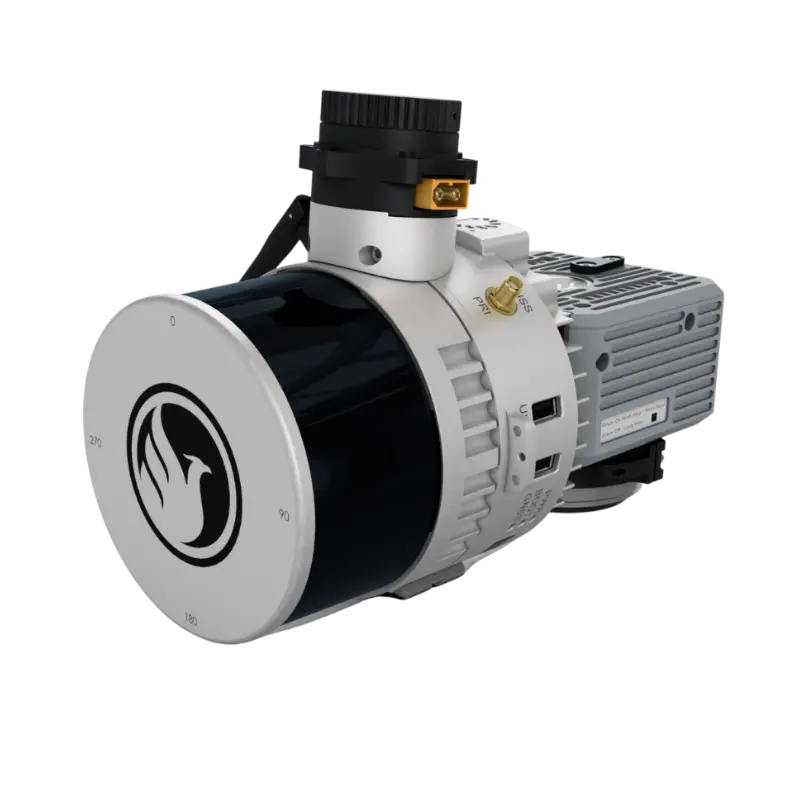

The Recon-XT is the ultimate value, entry-level system for the DJI Matrice 350. A strong fit for smaller scan areas and teams on a budget. The Recon-XT is designed to grow and adapt with your business.
Flexibility in mounting options is a key benefit of this Phoenix system. The RECON-XT is designed to fly on UAVs, and can also be deployed for mobile mapping applications.
Features:
- Ultralight LiDAR payload, designed for the M350 and Astro
- Flexible Mounting: Mount on a drone, vehicle, or even hand held
- Multi-Target Capacity—up to 2 target echoes per laser shot
- Fast and accurate measurement 640k shots/s, up to 1.28m points/s
Available in two variants for the two most popular mid-size drones.
- Recon-XT – DJI M300 and M350
- Recon-XT-A – Freefly Astro
Accessories & Options
M350 Recon-XT |
 Astro Recon-XT-A |
 Vehicle Mount |
Backpack |
Dimensions
Recon-XT/XT-A Point Density
Recon-XT/XT-A Field of View
Specs
Phoenix Recon-XT LiDAR Payload
Platform
| Dimensions |
20.7 x 11.7 x 15.7 cm |
| Weight | 1.8kg / 3.9 lbs |
| Camera FOV | 70° |
| Camera Resolution | 24 MP |
| External Sensor | 256GB USB drive included |
| Power Consumption | 20W typical |
| Operating Voltage | 12 – 28 VDC |
| Operating Temperature | -20°C – +40°C |
LiDAR Sensor
| Laser Properties |
905 nm Class 1 (eye safe) |
| Range Max | 120 m |
| RMS Ranging Error | 10 mm (Average within 0.5 ~ 70 m @ 50% reflectivity) |
| Pulse Rate | 640k points/s, up to 1.28M points/s dual return mode |
| Field of View | +15° -16° Vertical / 360° Horizontal |
| Multiple Echoes | 2 |
| Number of Lasers | 32 |
| Beam Divergence | 2.29 mrad / 1.52 mrad |
| Laser Beam Footprint H x V | 9 cm x 6 cm @ 40 m, 14 cm x 9 cm @ 60 m, 18 cm x 12 cm @ 80 m |
Navigation System
| Constellation Support |
GPS + GLONASS + BEIDOU + GALILEO |
| Support Alignment | Kinematic |
| Operation Modes | Post-processing only |
| Position Accuracy | 0.5 cm (PPK Estimated) |
| Attitude Accuracy | <0.01° Pitch & Roll; <0.05° Heading |
Compatibility
DJI Matrice 350/300
Freefly Astro
