Description

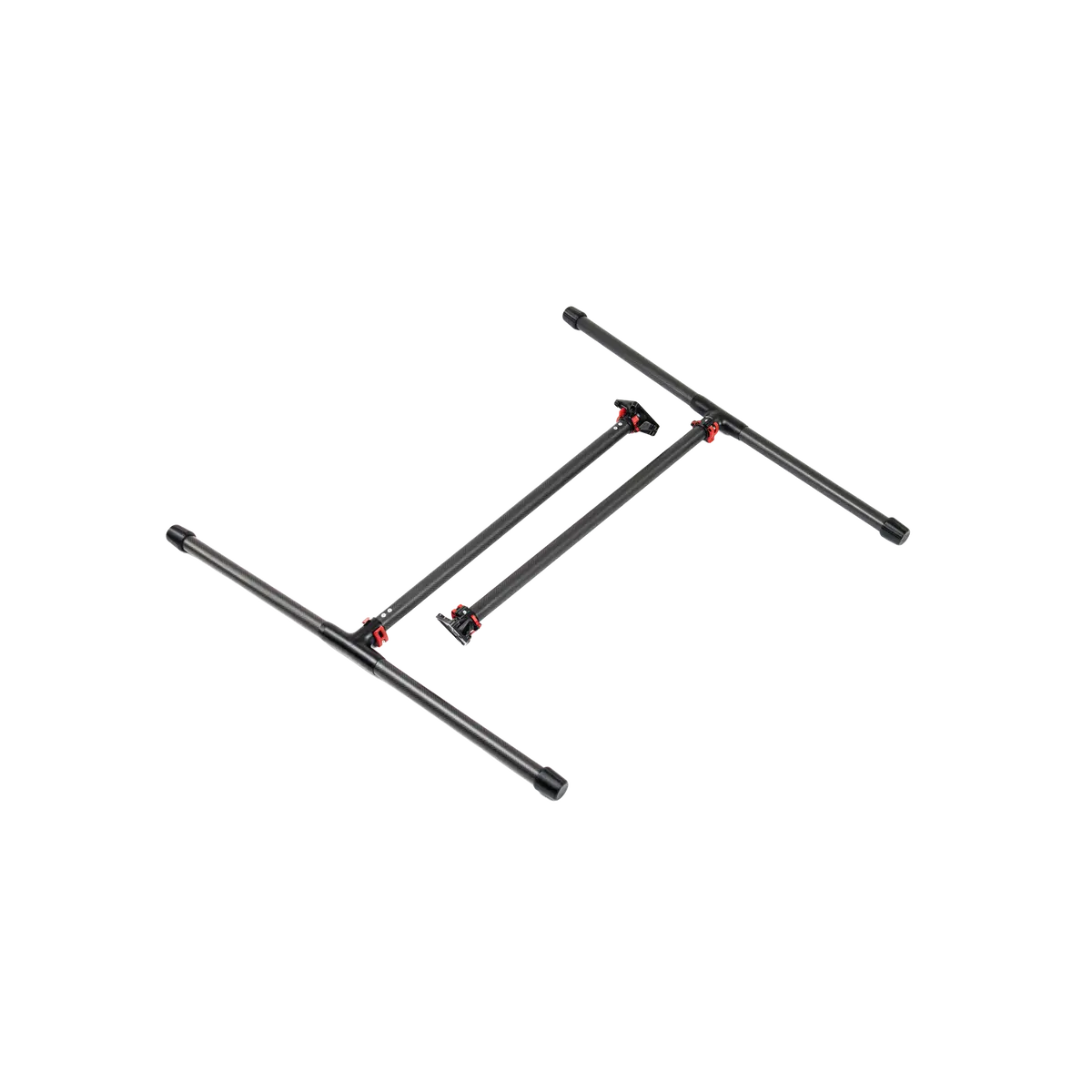

Freefly Alta X Skid Landing Gear gives your Alta X a stable, payload-friendly stance for smooth landings and confident takeoffs with cinema rigs, sensors, and custom integrations. The carbon-fiber and machined-aluminum construction keeps weight low while adding the footprint and rigidity heavy payloads demand.
Installation is fast and field-simple. Tool-less quick-release mounts lock the skids to the chassis, keyed leg hardware preserves alignment, and two leg sets let you choose the ground clearance that best protects gimbals and instruments on uneven terrain.
Stable Landings for Third-Party Payloads
- Optimized for non-Freefly payloads: supports a wide range of third-party cameras, sensors, and custom attachments under Alta X.
- Rigid, lightweight build: carbon fiber tubes and machined aluminum components balance strength with low mass.
- Smooth takeoffs and touchdowns: wide stance and skid profile reduce tip risk and vibration transfer to mounted gear.
Fast, Repeatable Field Setup
- Tool-less quick-releases: attach and remove skids at the field without breaking your payload build.
- Redundant locking: dual locking mechanisms secure each connection for mission reliability.
- Keyed leg hardware: consistent positioning every time to maintain payload balance and clearance.
Adjustable Ground Clearance
- Two leg lengths included: choose the clearance height that protects gimbals, LiDAR, or belly-mounted instruments.
- Uneven surfaces: added height and skid geometry help safeguard sensitive equipment during off-pavement operations.
Built for the Alta X Ecosystem
- Direct Alta X fit: chassis mounts, hardware, and drivers are included for first install.
- Serviceable design: end caps and hardware are user-replaceable for long-term fleet use.
*Alta X airframe and payload are not included with this kit.
Specs
Materials & Build
| Construction | Machined aluminum and carbon fiber |
| Locking | Dual locking mechanisms for redundancy and security |
| Positioning | Keyed leg hardware for consistent, secure alignment |
| Skid length | ≈29.0 in (737 mm) bottom skids with end caps |
Mounting & Installation
| Chassis interface | Quick-release mounts for Alta X chassis |
| Included hardware | 8 × M4 × 18 SHCS Dacromet screws; Loctite 243, 0.02 oz |
| Included tools | Hex driver 3 mm; torque driver 3.0 N·m |
Leg Options & Ground Clearance
| Medium legs | Height: 18.2 in (462 mm) per Tech Specs Alternative listing: 14.97 in (380 mm) per kit list Weight: 28 oz (1.75 lb) / 780 g |
| Long legs | Height: 23.35 in (593 mm) per Tech Specs Alternative listing: 20.47 in (520 mm) per kit list Weight: 29 oz (1.81 lb) / 826 g |
In the Box
(2) Bottom skids with end caps (≈29.0″ / 737 mm)
(2) Medium Legs (14.97″ / 380 mm)
(2) Long Legs (20.47″ / 520 mm)
(2) Quick-release mounts for Alta X chassis
(8) M4 × 18 SHCS Dacromet screws
(1) Hex Driver (3 mm)
(1) Torque Driver (3.0 N·m ≈ 26.6 in-lb)
(1) Loctite 243 Threadlocker, 0.02 oz
*Alta X airframe and payload are not included.
Compatibility
Airframes
Freefly Alta X (all configurations, including Alta X Gen2 and NDAA variants)
Note: Kit includes the required quick-release mounts for the Alta X chassis.
