Description

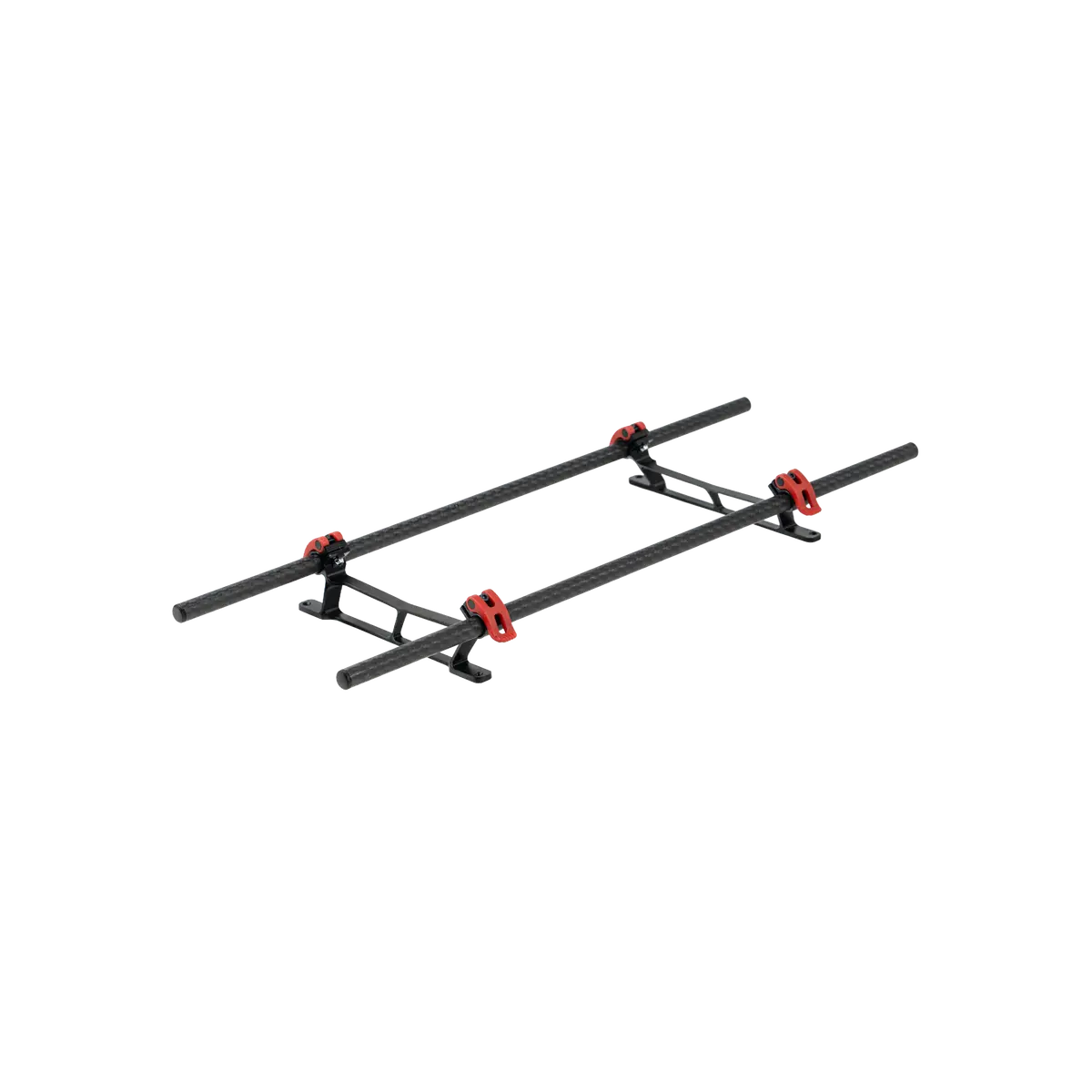

Freefly 12 mm Rail Payload Mount Kit gives Alta X a robust, lightweight twin-rail interface for third-party cameras, sensors, and accessories. The kit uses 12 mm (≈0.47 in) carbon tubes at 500 mm (≈19.7 in) length with a 149–150 mm center-to-center spacing (≈5.9 in) that matches common rail-mount payloads. Precision-machined aluminum brackets keep the structure rigid while holding system weight to just 6.6 oz.
Setup is fast and repeatable. Bright red quick-adjust levers make center-of-gravity tweaks obvious, lock securely for flight, and break down quickly for storage. The kit integrates cleanly with Alta X that has landing gear attached to the chassis and pairs naturally with Freefly Skid Landing Gear for under-belly payloads that need extra clearance.
Secure, Flexible Payload Interface
- Twin-rail standard: accepts payload brackets designed for 12 mm rails with ~149–150 mm spacing.
- Third-party ready: supports gimbals, instruments, and custom fixtures without custom machining.
- Rigid attachment: carbon fiber rails and aluminum mounts resist torsion for stable imagery and repeatable alignment.
Light, Strong, Field-Friendly
- Low mass: 6.6 oz in use to preserve flight time and payload headroom.
- Quick adjustments: visual lever position checks, fast COG tuning, and simple breakdown after the mission.
- Complete kit: includes fasteners and driver for the first install on the Alta X chassis.
Built for the Alta X Ecosystem
- Alta X integration: designed for airframes with landing gear mounted to the chassis.
- Pairs with Skid Landing Gear: add clearance for larger optics or downward-facing sensors.
*Landing gear, Alta X airframe, payloads, and gimbal mounts shown in photos are not included.
Specs
Rails & Dimensions
| Rail diameter | 12 mm (≈0.47 in) |
| Rail length | 500 mm (≈19.7 in) |
| Center-to-center spacing | 149–150 mm (≈5.9 in) |
| Weight in use | 6.6 oz (186 g) |
Materials & Construction
| Rails | Carbon fiber |
| Mount brackets | Precision-machined aluminum |
| Adjustment | Quick-adjust levers for COG tuning and breakdown |
Interface & Compatibility
| Payload interface | Twin 12 mm rail standard; supports brackets built for 149–150 mm spacing |
| Airframe fit | Freefly Alta X with landing gear attached to the chassis |
Installation
| Included hardware | Fasteners and 3 mm ball-head hex driver for first install |
In the Box
(2) Aluminum mount brackets
(2) Carbon payload rails (500 mm × 12 mm ≈ 19.7″ × 0.47″)
(4) M3 × 8 combo-head fasteners
(1) Hex driver (3 mm ball head)
*Alta X airframe, landing gear, payloads, and gimbal mounts are not included.
Compatibility
Airframes
Freefly Alta X with landing gear attached to the chassis (required)
Payload Interfaces
Third-party payload brackets designed for twin 12 mm rails with 149–150 mm center-to-center spacing
Recommended Pairing
Freefly Skid Landing Gear for added ground clearance with under-belly payloads
Not Compatible
Short Quick Release Mount (910-00621)
Cargo Landing Gear (910-00620)
Payload Vibration Damper (910-00750)
Skyview Landing Gear (910-00395)
Mōvi Pro (any variety)
