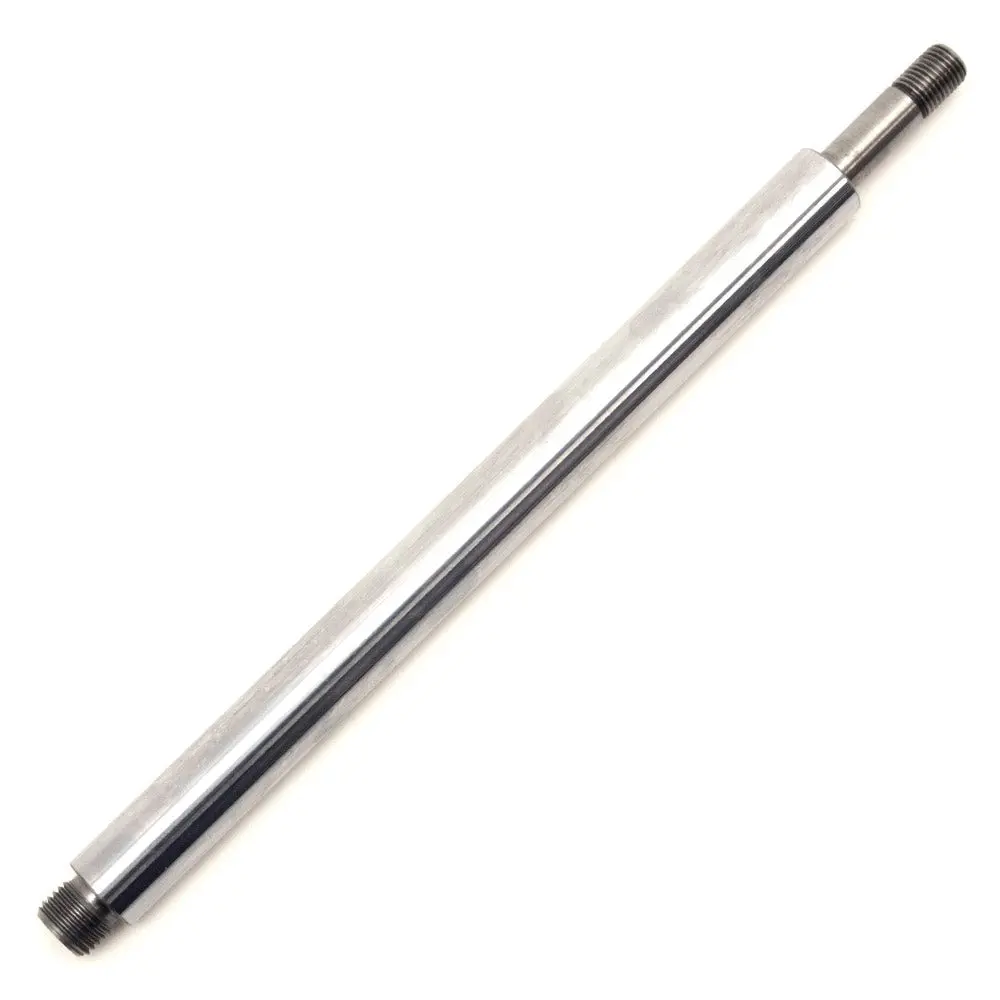

Walker Evans Solid Shock Shaft – 0.750″ OD (Custom Length & Mount Options)

Description

Includes (1) Solid Shaft

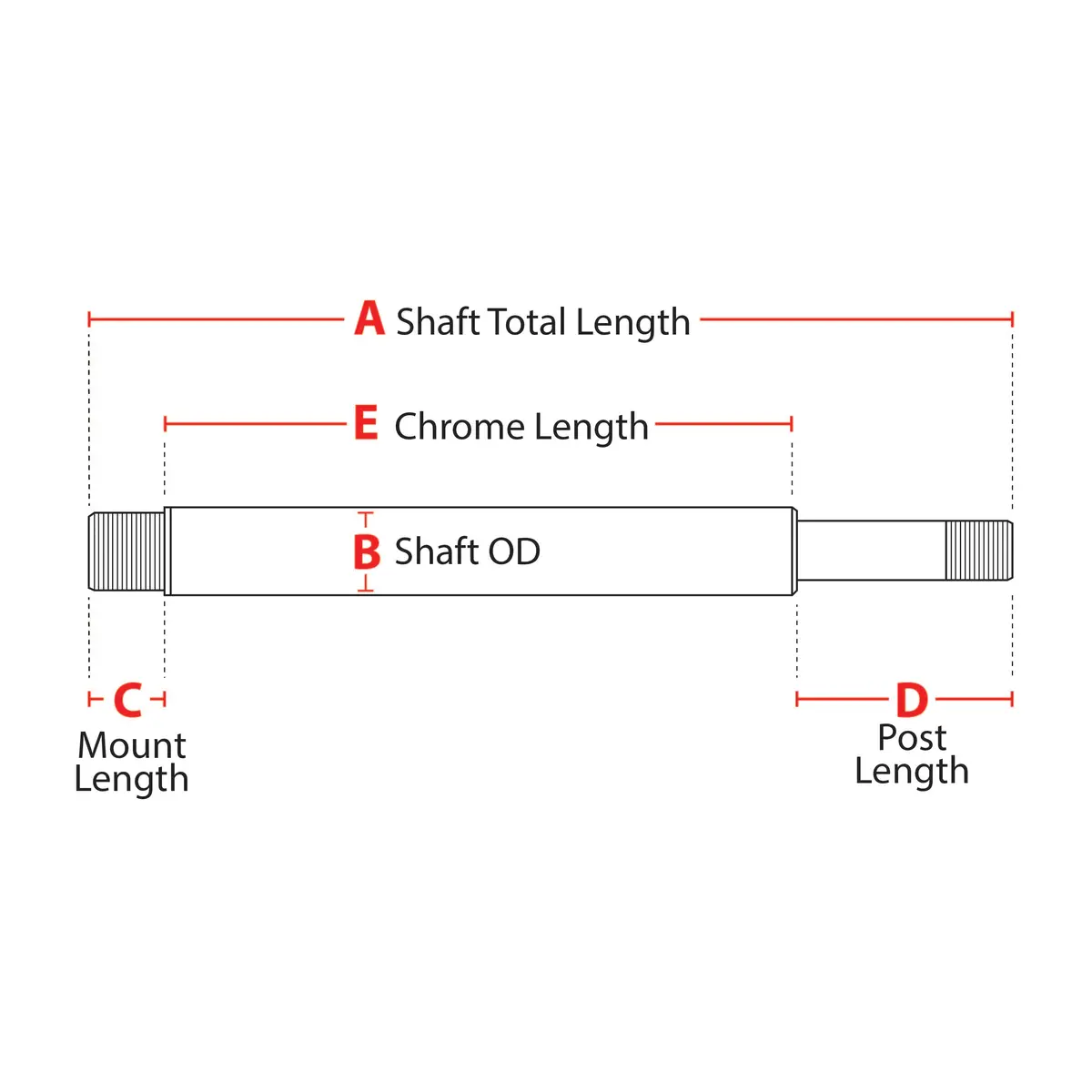

Dimensions

A: Shaft Total Length: Select above

B: Shaft OD: 0.750″

C: Mount 1.3″ Length x TPI (Select above)

D: Post Length x 7/16″ – 20 TPI

In order to provide you with the correct fitment, please measure the shaft and choose the measurements above.

A. Shaft Total Length:

Measure the entire length of the shaft from end to end.
B. Shaft Outer Diameter:

Measure the diameter of the shaft
C. Mount Length:
Measure the mount from the end of the chrome to the end of the threads.

D. Post Length:
Measure the post from the end of the chrome to the end of the threads.

E. Chrome Length:
Measure the length from beginning of the chrome to the end of the chrome.

Part Number:

This product has many variants. Not all specs are recorded. Contact us if you need specs that are not listed.

Recommended Shaft Clamp #64-35-030-A
