Walker Evans - Shock Shaft, 0.625” Od, Solid (Select Length/Mount) 1
Walker Evans - Shock Shaft, 0.625” Od, Solid (Select Length/Mount) 2
Walker Evans - Shock Shaft, 0.625” Od, Solid (Select Length/Mount) 3
Walker Evans - Shock Shaft, 0.625” Od, Solid (Select Length/Mount) 4

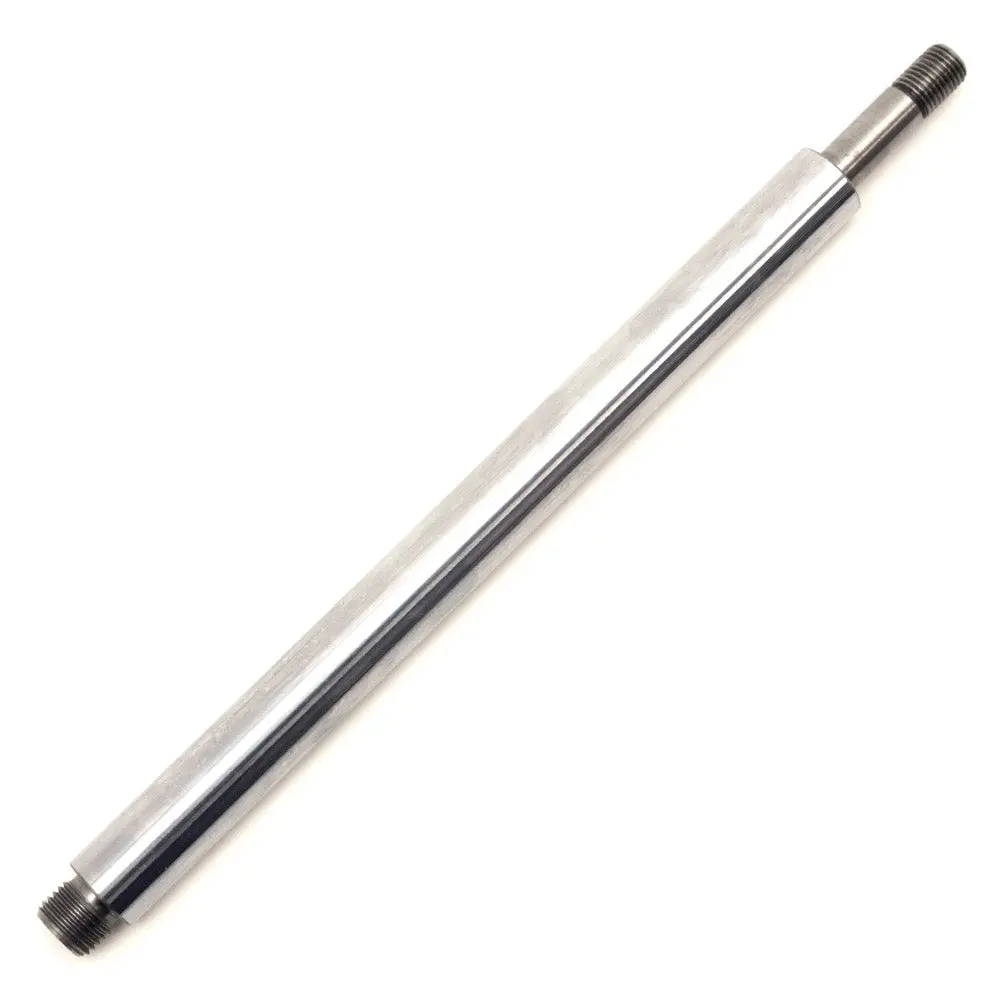

Walker Evans Solid Shock Shaft – 0.625″ OD, Configurable Length and Mount Type

Original price was: $84.99.Current price is: $56.66.

Quantity
SKU: N/A Category: Brand:

Description

Includes (1) Solid Shaft

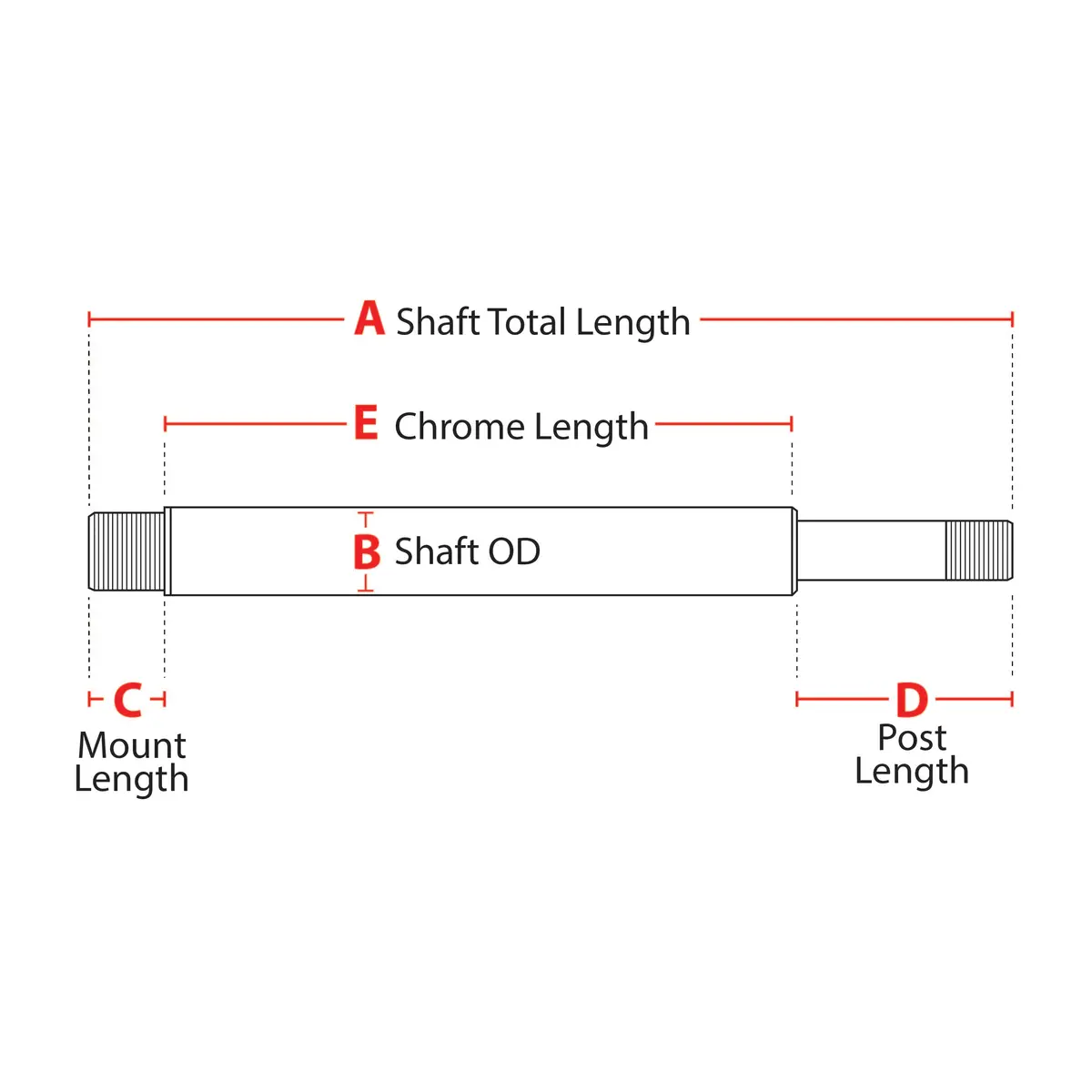

Dimensions

A: Shaft Total Length: Select above

B: Shaft OD: 0.625″

C: Mount 1.3″ Length x TPI (Select above)

D: Post 0.45″ Length x 3/8″-24 TPI

    In order to provide you with the correct fitment, please measure the shaft and choose the measurements above.

    A. Shaft Total Length:

    Measure the entire length of the shaft from end to end.
    B. Shaft Outer Diameter:

    Measure the diameter of the shaft
    C. Mount Length:
    Measure the mount from the end of the chrome to the end of the threads.

    D. Post Length:
    Measure the post from the end of the chrome to the end of the threads.

    E. Chrome Length:
    Measure the length from beginning of the chrome to the end of the chrome.

    Part Number:

    This product has many variants. Not all specs are recorded. Contact us if you need specs that are not listed.

    Recommended Shaft Clamp #64-35-030-A

    Explore more from our collection.

    Additional information

    Total Length

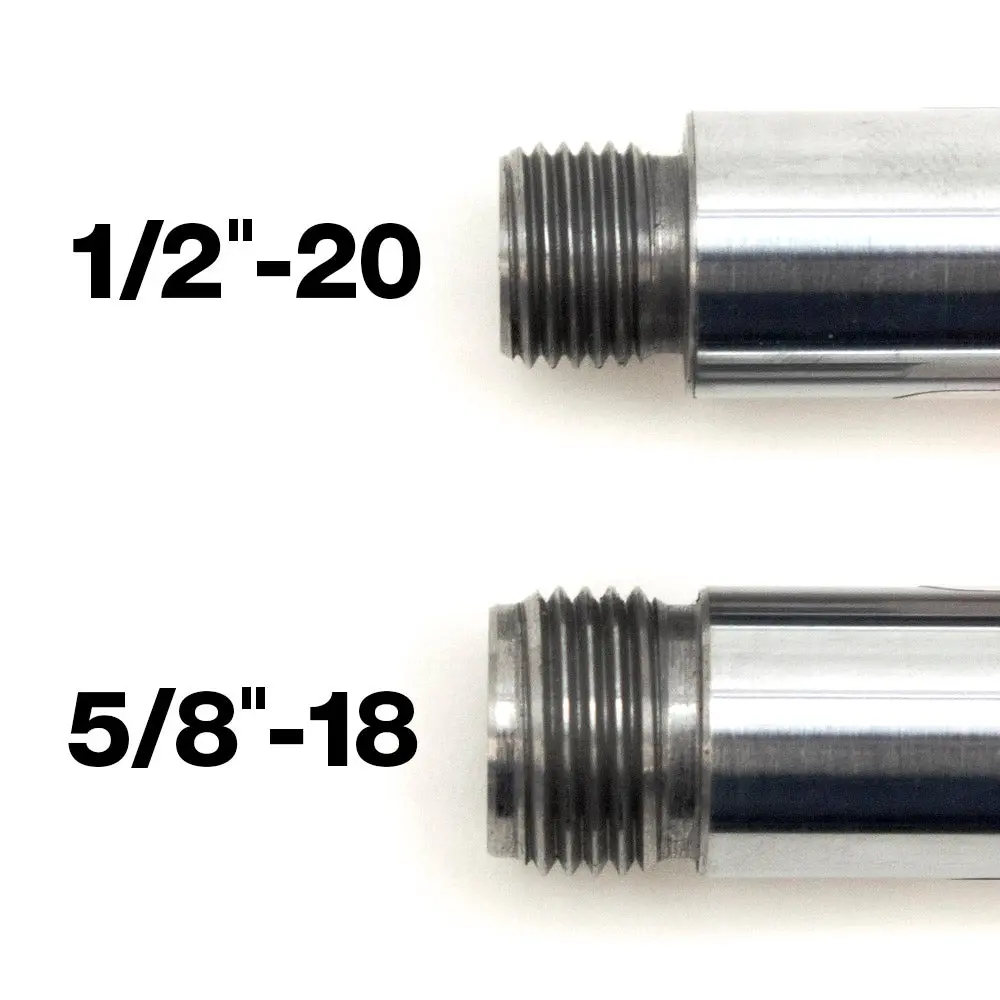

    6.35” TLG – 1/2"-20 Mount, 6.50” TLG – 5/8"-18 Mount, 7.20" TLG – 5/8"-18 Mount – 7/16"-20 x 1.45" Post, 8.70" TLG – 5/8"-18 Mount, 8.92" TLG – 5/8"-18 Mount, 9.00" TLG – 5/8"-18 Mount, 9.12" TLG – 1/2"-20 Mount, 9.15" TLG – 1/2"-20 Mount, 9.34" TLG – 5/8"-18 Mount
