Description

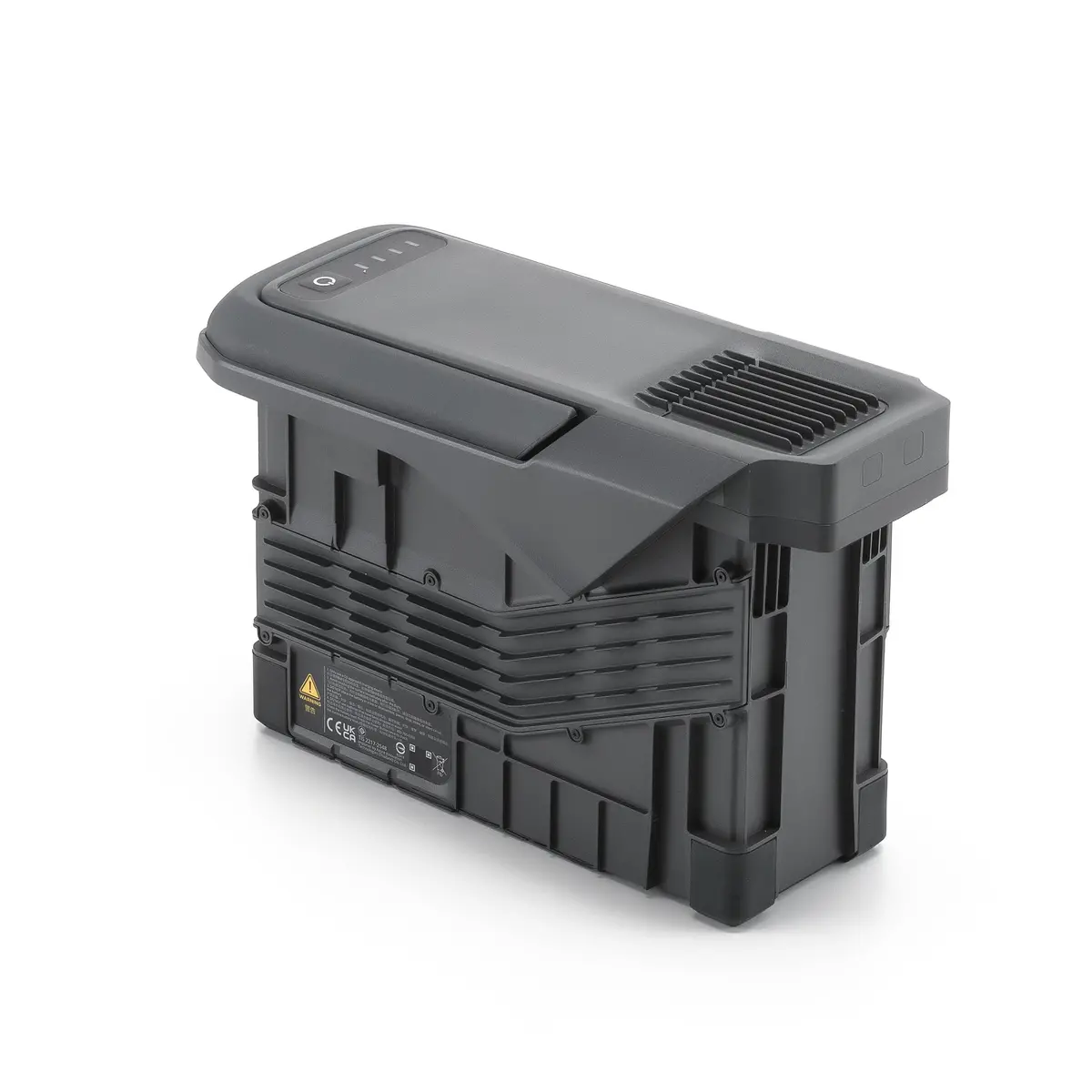

The DJI Matrice 400 TB100 Intelligent Flight Battery is an ultra-high-capacity 20 254 mAh pack that powers the DJI Matrice 400 for up to 59 minutes (no payload). Hot-swappable design keeps critical operations airborne during battery changes, while high-performance cells support ≈ 400 charge cycles to cut per-mission cost. Integrated self-heating and enhanced heat-dissipation ensure reliable performance from –4 °F to 122 °F (–20 °C – 50 °C).
Tips
DO NOT use swollen, leaking, or damaged batteries. If a battery appears abnormal, stop using it and contact us for assistance.
Specs
TB100 Battery Specs
| Name | TB100 |
| Capacity | 20 254 mAh |
| Standard Voltage | 48.23 V |
| Max Charging Voltage | 54.6 V |
| Battery Type | Li-ion 13S |
| Energy | 977 Wh |
| Net Weight | Approx. 4.72 kg (10.4 lbs) |
| Operating Temperature | –4 °F to 122 °F (–20 °C to 50 °C) |
| Charging Temperature | 41 °F to 113 °F (5 °C to 45 °C) (self-heating activates < 5 °C) |
| Discharging Temperature | –4 °F to 122 °F (–20 °C to 75 °C) |
| Self-Heating | Onboard • Battery Station • Single-battery modes supported |
| Discharge Rate / Max Charge Power | 4 C discharge | 2 C charge |
| Cycle Life | ≈ 400 cycles |
| Charging Time | Using BS100 Intelligent Battery Station: 220 V input: 45 min (0 → 100 %) 110 V input: 70 min (0 → 100 %) 110 min (Silent Mode, either input) |
Compatibility
DJI Matrice 400 Series
