Description

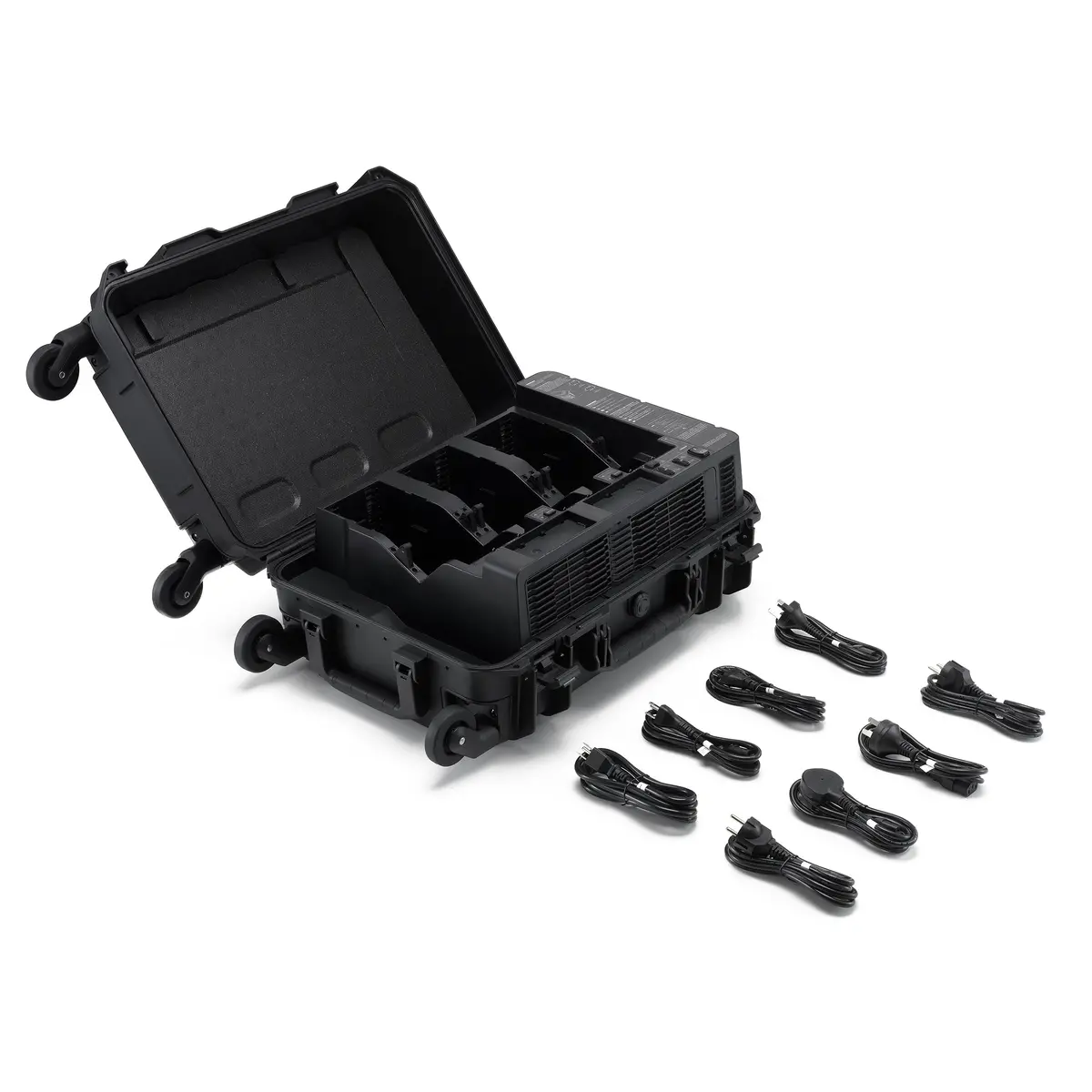

The DJI Matrice 400 BS100 Intelligent Battery Station is a one-stop hub for charging, storage, and transport of Matrice 400 power packs. It sequentially charges up to 3 × TB100 / TB100C flight batteries and 2 × WB37 controller batteries, offering Ready-to-Fly 90 % or Standard 100 % presets plus Fast and Silent modes. A single TB100 reaches 100 % in 45 min (220 V) or 70 min (110 V) on Fast mode, while Silent mode keeps noise to just 36 dB. Dual USB-C ports handle firmware maintenance and accessory charging, making BS100 an all-in-one field and hangar solution.
BS100 Battery Station Charging Times
| 110 V Power Supply | 70 min to fully charge one TB100 110 min in Silent mode |
| 220 V Power Supply | 45 min to fully charge one TB100 110 min in Silent mode |
Tips
- Do not close the station cover while charging.
- Avoid touching metal terminals on battery ports.
Specs
BS100 Battery Station Specs
| Model | BS100 |
| Net Weight | 11.8 kg (26 lbs) |
| Dimensions | 605 × 410 × 250 mm (L × W × H) |
| Supported Batteries | TB100 / TB100C Intelligent Flight Battery, WB37 Battery |
| Operating Temperature | –4 °F to 104 °F (–20 °C to 40 °C) |
| Input | 100–240 V AC, 50–60 Hz, 10 A |
| Output Power | TB100 Interface: • 100–110 V AC → ≈ 1185 W • 110–180 V AC → ≈ 1474 W • 180–240 V AC → ≈ 2184 W WB37 Interface: ≈ 52 W USB-C: 5 V 3 A, 9 V 3 A, 12 V 3 A, 15 V 3 A, 20 V 3.25 A |
| Charging Channels | 3 × TB100 / TB100C • 2 × WB37 (sequential) |
| Charging Modes | Ready-to-Fly 90 % • Standard 100 % • Fast • Silent |
| Charging Time* | TB100/TB100C 0 % → 100 %: • 45 min (220 V, Fast) • 70 min (110 V, Fast) • 110 min (Silent) |
*Tested at 25 °C (77 °F).
In the Box
(1) BS100 Battery Station
(1) Power Cables
Compatibility
DJI Matrice 400 Series
DJI TB100 / TB100C Batteries
DJI WB37 Batteries
