Description

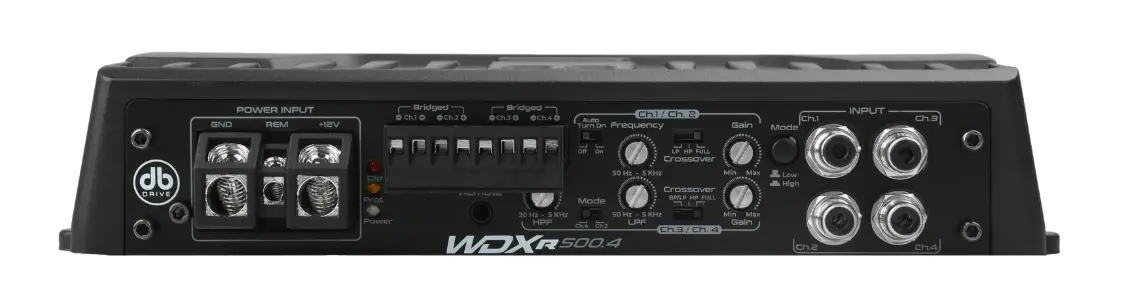

WDX-R500.4
| GENERAL SPECIFICATIONS | |
|---|---|
| Rated Power | |
| 4 x 125 Watts @ 4Ω | |
| 4 x 200 Watts @ 2Ω | |
| 2 x 420 Watts @ 4Ω Bridged |
| PARAMETERS | |
|---|---|
| Ch 1-2 High Pass Crossover: 50Hz- 5kHz | |
| Ch 1-2 Low Pass Crossover: 50Hz- 5kHz | |
| Ch 3-4 High pass Crossover: 20Hz- 5kHz | |
| Ch 3-4 Low pass Crossover: 50Hz- 5kHz | |
| Crossover Slope @ 12 dB | |
| Input Sensitivity: .425Mv – 8.5V | |
| Signal to Noise ratio : >90dB | |
L: 9.24″ W: 5.51″ H: 1.88″
- CLASS “D” CIRCUITRY
- Direct Connect Speaker Terminals
- Large Gauge Power Wire Input
- Selectable Low Level RCA Input Range
- ACT- Adaptive Crossover Technology
- PWM Mosfet Regulated Power Supply
- APC – Audio Protection Circuit
- SESI – Signal Evaluation Status indicator
- CHM – Collective Heat Management
- 2Ω stereo / 4Ω Bridged capability
