Description

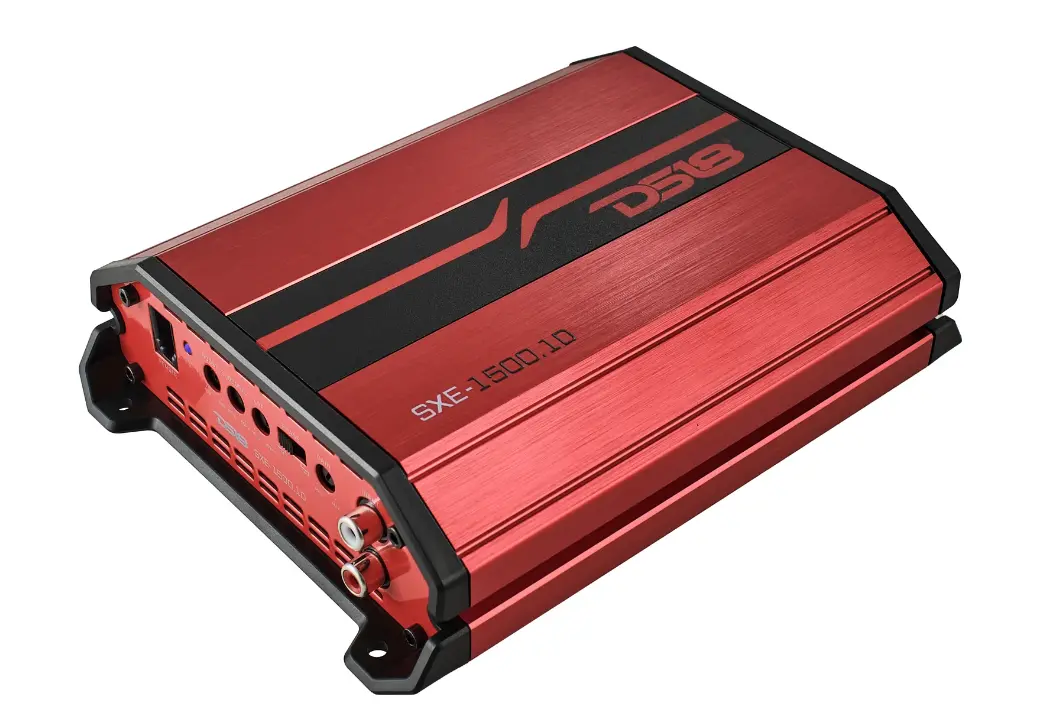

SXE-1500.1D/RD (Red) and SXE-1500.1D/BK (Black)
- Subwoofer Monoblock Amplifier
- 1 Channel
- Class D
- 1 ~ 4 Ohm Stable
SPECS
Total Watts (Peak)
1500W
RMS Power @ 4 ohm
200W
RMS Power @ 2 ohm
350W
RMS Power @ 1 ohm
500W
Audio
Frequency Response
10Hz-250Hz
Signal to Noise Ratio
90dB
Efficiency @ 4ohm
80%
Damping Factor
140
Input Impedance
20kΩ
Channel Separation
N/A
Total Harmonic Distortion (THD)
0.05%
Low Level Input Range
200mV-5V
High Level Input
No
Selectable X-Over
Fixed LPF
X-Over Filter Range
50-250Hz
Bass Boost Range
0-12dB
Bass Boost Frequency
45Hz
Infrasonic Filter
10-55Hz
Phase Selector
0-180°
Features
Amplifier Class
Digital (D)
Amplifier Type
Monoblock Subwoofer
Number of Channels
1
Minimum Impedance
1 Ohm
Led Indicator
Power/Protect/Clip
Power Input Terminal Size
4Ga
Fuse Size
2 x 30A (60A)
Remote Level Control
Yes
Cooling Fan
No
Voltmeter
No
Thermal Protection
Yes (70°)
Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes (16.5v)
Clipping Protection
Yes
Measurement
Overall Length
7.68″ / 195mm
Overall Width
5.5″ / 140mm
Overall Height
1.8″ / 48mm
Heatsink Length
6.18″ / 157mm
Gross Single Unit Weight
1.4KG
Extra Features
Remote Level Control with Clip Indicator
Yes
