Astro Compact Travel Case for Portable Drone Systems

Description

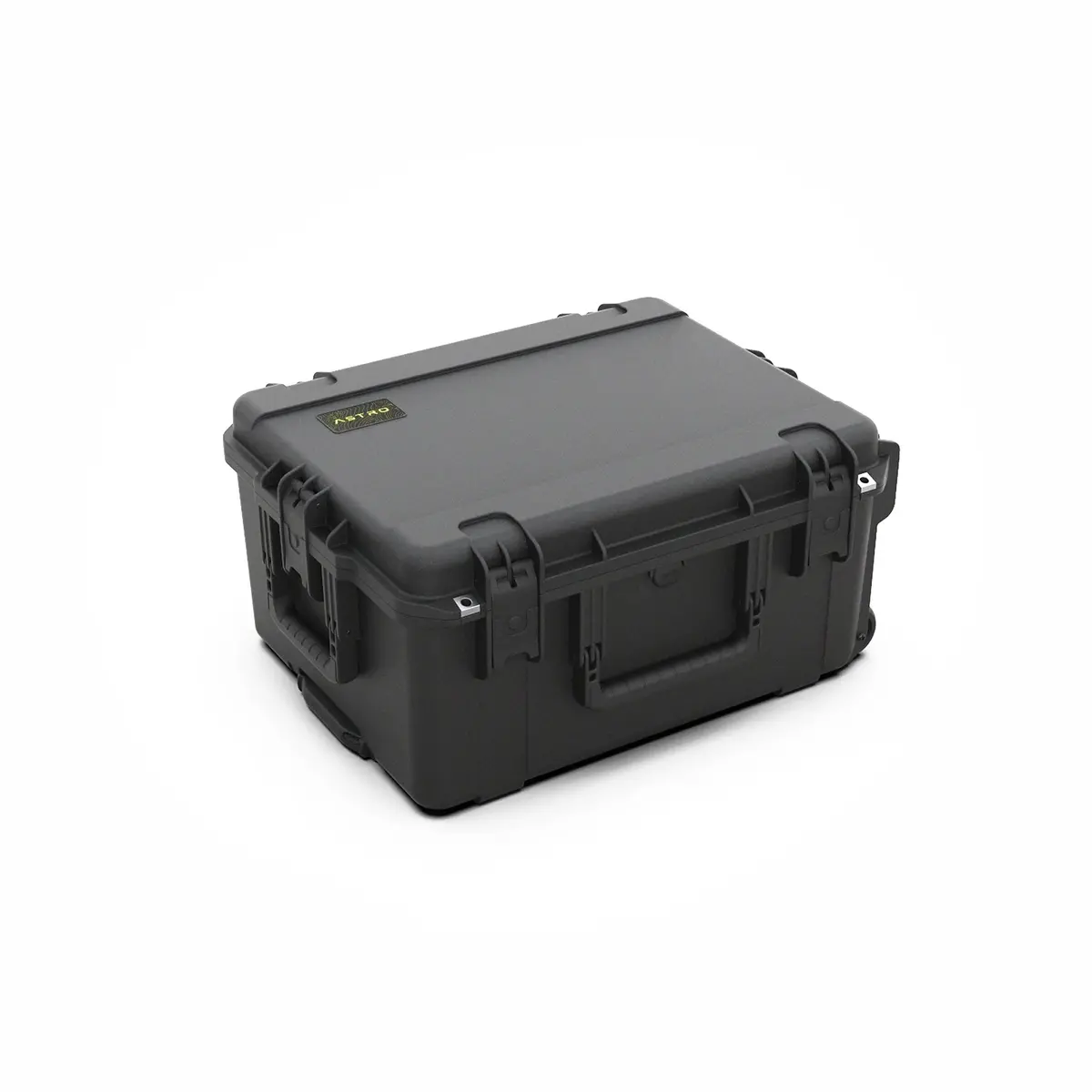

Astro Compact Travel Case is your roll-anywhere, lock-tight solution for hauling an entire Astro kit through airports, job sites, and backcountry roads. A rugged SKB 3i-2217-10 shell shrugs off drops, water, and dust, while precision-cut, closed-cell foam locks each component in place for worry-free transit.

Rugged, Ready for the Road

• Impact-resistant SKB shell with padlock hasps, gasket seal, and automatic pressure valve.
• Built-in wheels and a telescoping handle glide through terminals and work sites.
• Dual side carry handles make two-person lifts easy when the kit is fully loaded.

Custom-Fit Interior

• Cavities for Astro (with 2 × SL8 batteries installed) and Pilot Pro controller.
• Slots for LR1 payload with thermal or LRF module, 2 × SL8 Fast Chargers, spare props, and three hex drivers.
• Closed-cell foam tested to survive 1 m drops without shifting delicate gear.

Compact Specs

• Exterior: 24.52 ″ × 19.50 ″ × 12.22 ″ (62.28 × 49.53 × 31.04 cm)
• Empty: 20.3 lb / 9.21 kg
• Full Astro Prime kit (with batteries): 42.8 lb / 19.41 kg
• Checked kit (no batteries): 38.3 lb / 17.37 kg

Ecosystem Compatibility

• Astro, Astro Max, Astro Prime (standard & NDAA/Blue variants)
• Pilot Pro controller, LR1 payload*
• SL8 Fast Chargers, SL8 Batteries, spare props, tools
• *Sony A7R IV payload does not fit in the LR1 bay.

Specs

Astro Compact Travel Case

Case model	SKB iSeries 3i-2217-10 rolling hard case
Exterior dimensions (L × W × H)	24.52″ × 19.50″ × 12.22″ 62.28 × 49.53 × 31.04 cm
Empty weight	20.3 lb / 9.21 kg
Weight – full Astro kit	42.8 lb / 19.41 kg (includes batteries)
Weight – checked kit	38.3 lb / 17.37 kg (no SL8 batteries)
Material	Impact-resistant polypropylene copolymer
Ingress protection	Water- & dust-tight gasket seal; automatic pressure valve
Transport features	Built-in wheels, telescoping pull handle, dual side carry handles
Foam insert	Custom closed-cell PE; 1 m drop-tested
Security	Dual padlock hasps (TSA-compatible locks not included)

In the Box

(1) Astro Compact Travel Case

*Astro drone, batteries, payloads, and other accessories shown for reference are not included.

Compatibility

Designed Fit For

• Astro
• Astro (NDAA/Blue)
• Astro Prime
• Astro Prime (NDAA/Blue)
• LR1 Payload*
• Pilot Pro Controller
• 2 × SL8 Fast Chargers
• 2 × SL8-Air Batteries (installed in aircraft or loose)
• Spare Prop Pair (CW & CCW)
• 3 × Hex Drivers

*Sony Alpha 7R IV payload does not fit in the LR1 payload bay of this case.
