Z10 Series Slim Strobe Light Bar – 7 to 50 Inch White & Yellow LED

Description

The Z10 Series is not your typical high-output driving light. Instead, it’s engineered as a high-visibility warning and strobe light, designed to make your vehicle stand out in critical situations—whether you’re riding in low visibility, parked roadside, or leading a convoy.

With its ultra-slim profile and multi-mode strobe system, the Z10 delivers attention-grabbing signal lighting at an accessible price point.

---

Multi-Mode Strobe System (Core Feature)

The Z10 comes with a customized cycling strobe controller, allowing you to switch between multiple lighting states with a single button.

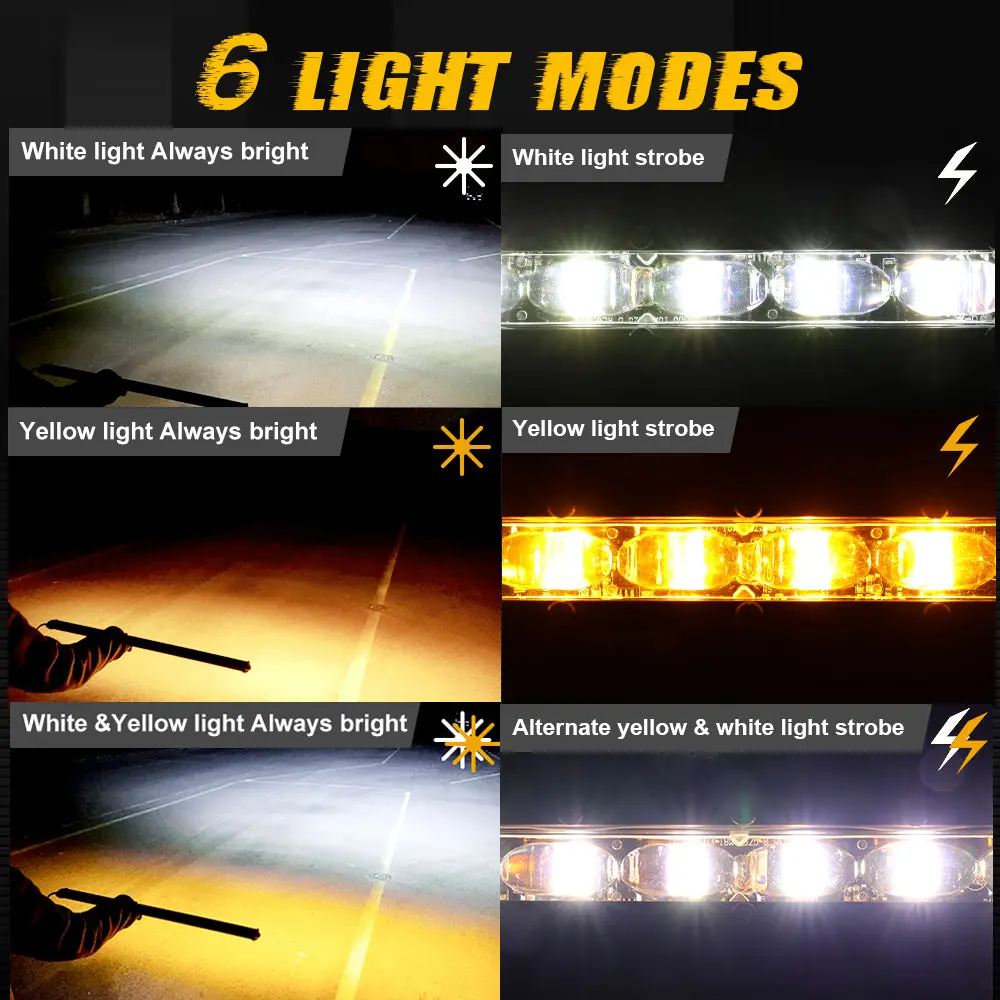

Available Modes:

• White steady beam
• Yellow steady beam
• White + Yellow steady on
• White flashing
• Yellow flashing
• White & Yellow alternating flash

How It Works:

• The light cycles through modes sequentially with each press of the switch
• No memory mode — always starts from default mode when powered on
• Designed for quick, intuitive operation while riding or driving

👉 Ideal for:

• Emergency signaling
• Fog / dust / rain visibility
• Group riding identification
• Roadside warning situations

---

6D Lens Design (Optimized for Visibility, Not Distance)

Unlike traditional reflectors, the 6D convex lens system produces a more uniform and controlled beam, ensuring your vehicle is clearly visible without excessive glare.

• Balanced light distribution
• Reduced scatter compared to standard reflectors
• Adjustable mounting angle to control projection distance

Example (8-inch version):

• 6 LEDs producing approx. 1890 lumens
• Effective visibility range: ~115m @ 1 lux

---

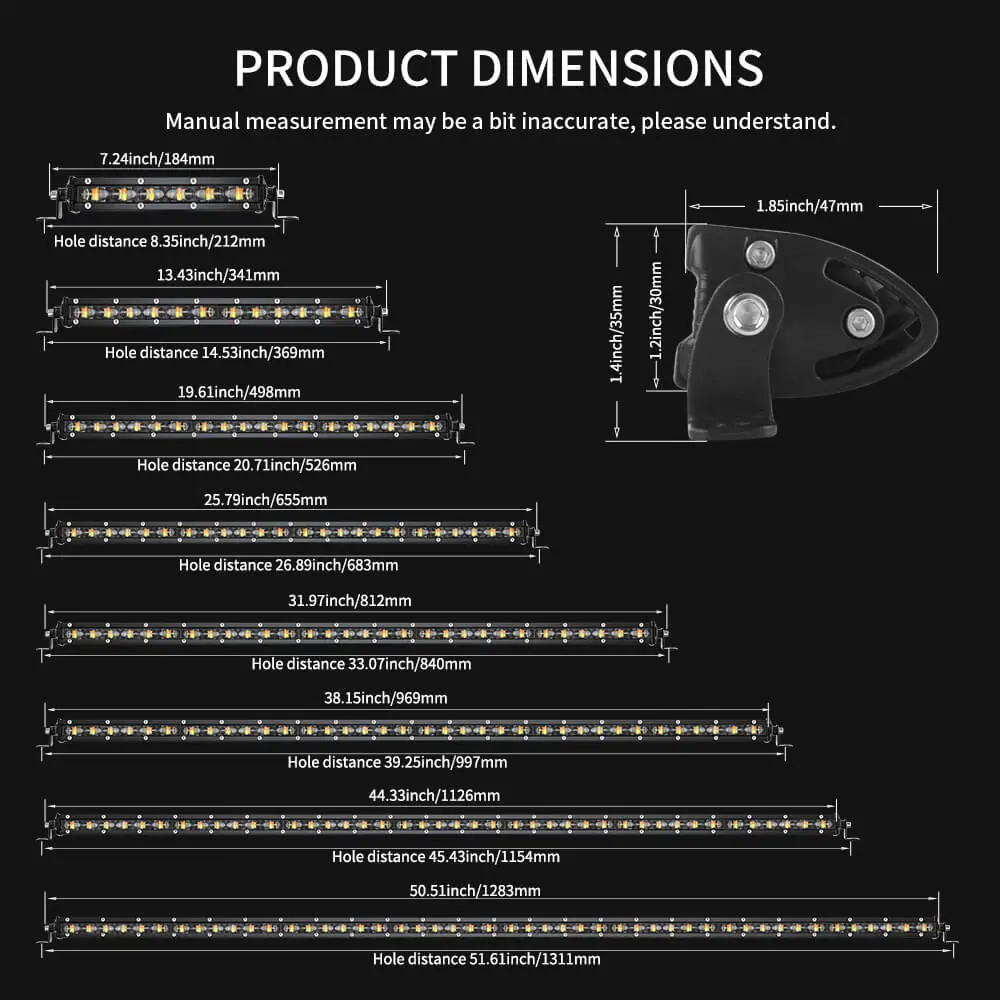

Ultra-Slim 3cm Profile (Flexible Mounting Anywhere)

With a height of only 3cm, the Z10 is designed for low-profile installation, making it easy to integrate into almost any vehicle without affecting appearance or aerodynamics.

Recommended Mounting Positions by Size:

Short Sizes (6″–10″)

• Motorcycle crash bars / forks
• Front fender brackets
• Rear racks (as warning light)

Medium Sizes (12″–20″)

• UTV / ATV front bumper
• Roof rack front edge
• Pickup grille or lower bumper

Long Sizes (30″+)

• Truck roof top (warning bar style)
• Rear bed rack (chase light setup)
• Emergency or utility vehicle light bar position

✔ Slim design reduces:

• Wind resistance
• Whistling noise at high speed
• Visual bulk on the vehicle

---

Durable Build for All Conditions

Built to handle tough environments, the Z10 combines durability with reliable performance:

• Die-cast aluminum housing for strength
• Black anodized coating for corrosion resistance
• High-impact PMMA lens for protection

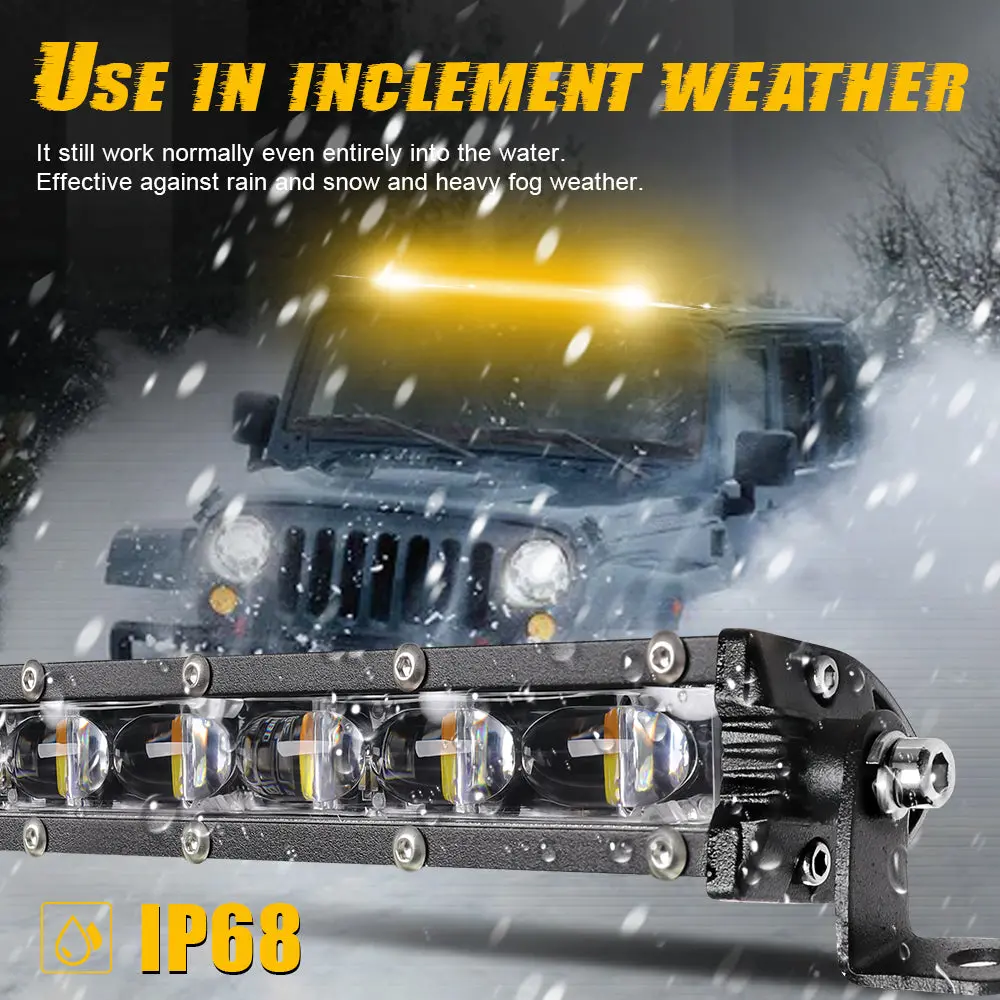

• Sealed rubber gasket for waterproofing (IP68)

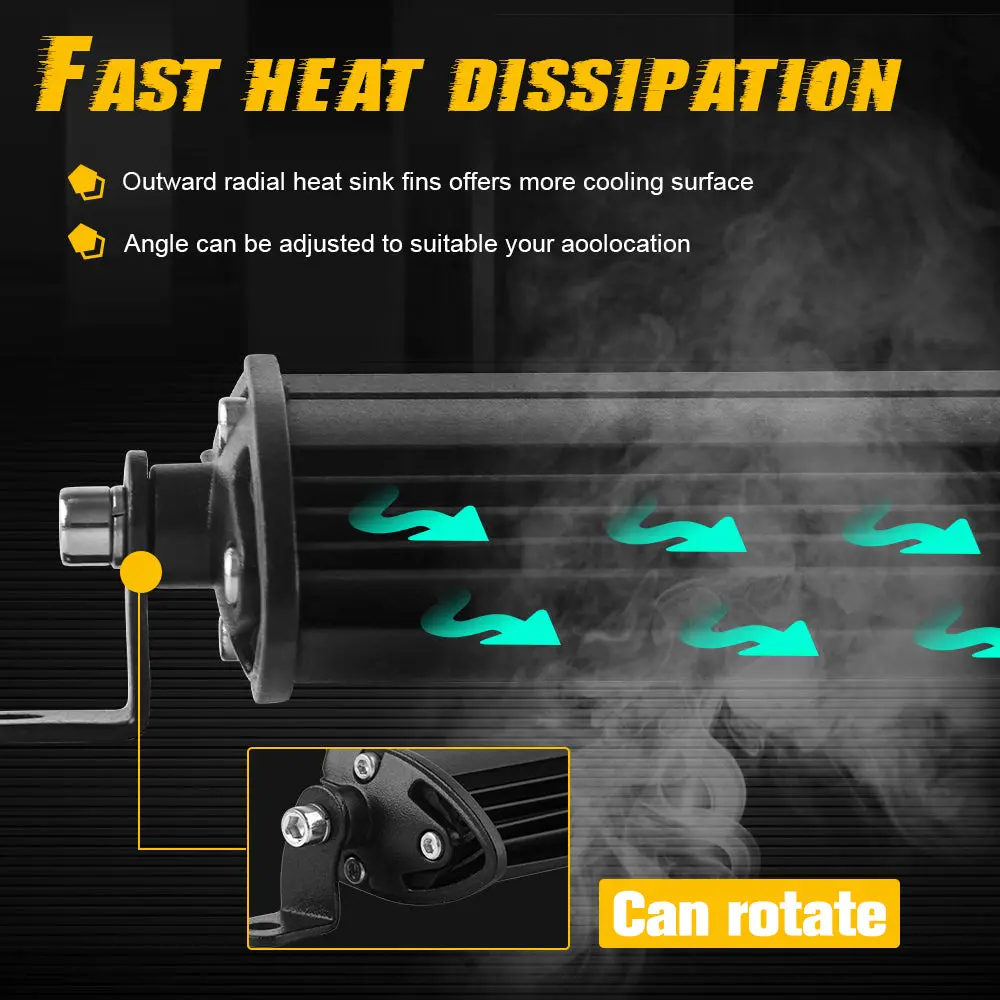

• Efficient heat dissipation for longer lifespan

If you’re looking for maximum brightness for long-distance driving, this is not the product.

But if your goal is to:
✔ Be seen instantly
✔ Add functional strobe warning
✔ Install a clean, low-profile light

The Z10 is one of the most cost-effective safety light bars you can add to your build.
