High-Density LiDAR for Precise Terrain Models

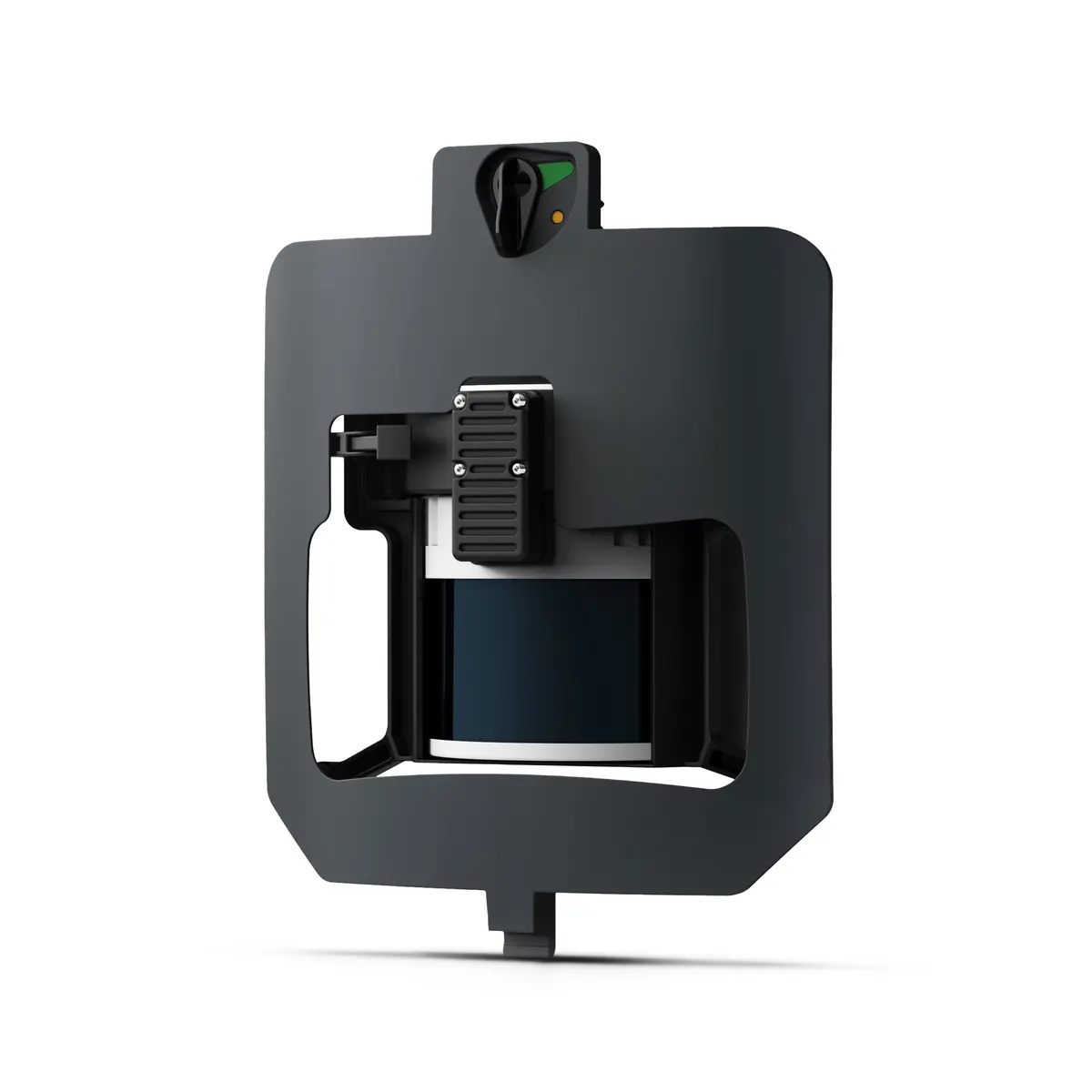

The WingtraRAY LiDAR payload penetrates dense canopy to capture sub-meter elevation detail for mining, construction, urban-planning, and environmental surveys. Deliver vertical RMS accuracy down to 3 cm / 1.2 in and achieve point densities up to 200 pts/m², all within Wingtra’s streamlined VTOL and WingtraCLOUD workflow.
Key Benefits
- Dense point clouds — Up to 660 pts/m² (triple return) at 150 ft AGL with 50 % overlap.
- Large-scale coverage — Map up to 460 ha / 1,140 ac per flight (300 ft, no parachute).
- Survey-grade accuracy — Vertical RMS ≤ 3 cm (1.2 in) at 300 ft.
- Seamless processing — LAS/LAZ outputs via Wingtra LiDAR App feed directly into CAD & GIS.
- All-terrain ready — VTOL launches from 6.6 × 6.6 ft pads; parachute option enables Cat 3 OOP.
Specs
LiDAR Technical Specifications
| Scanner | Hesai XT32M2X rotating sensor • 905 nm • ≤ 300 m range |
| Payload weight (incl. mount) |
1 060 g (2.34 lb) |
| Point density @ 150 ft (45 m) | 110 pts/m² (single) — up to 660 pts/m² (triple)* |
| Point density @ 300 ft (90 m) | 110 pts/m² (hard surface) — up to 330 pts/m² (triple) |
| Point density @ 400 ft (120 m) | 84 pts/m² (hard surface) — up to 252 pts/m² (triple) |
| Coverage with PRS* | 150 ft: 220 ha (545 ac) • 300 ft: 415 ha (1 025 ac) |
| Coverage w/o PRS* | 150 ft: 245 ha (605 ac) • 300 ft: 460 ha (1 140 ac) |
| Vertical accuracy (RMS) | ≤ 3 cm (1.2 in) @ 300 ft |
| IMU | Inertial Labs tactical-grade (0.006° roll/pitch) |
| Outputs | Corrected LAS / LAZ point clouds via Wingtra LiDAR App |
| *Assumptions | 30 % side-overlap, calm conditions |
In the Box
(1) Wingtra LiDAR payload module
(1) Wingtra LIDAR Usage License
(1) Quick-lock nadir mount (pre-installed)
(1) Protective transit bracket
(1) Payload transport sleeve
(1) Quick-start & safety guide
(1) LiDAR Perpetual license plus 3 years of updates & support
Compatibility
WingtraRAY
