Description

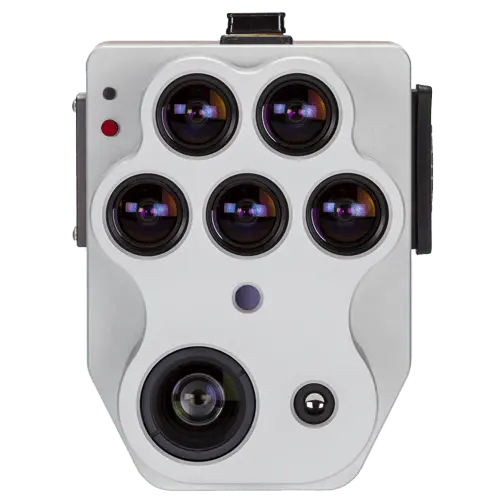

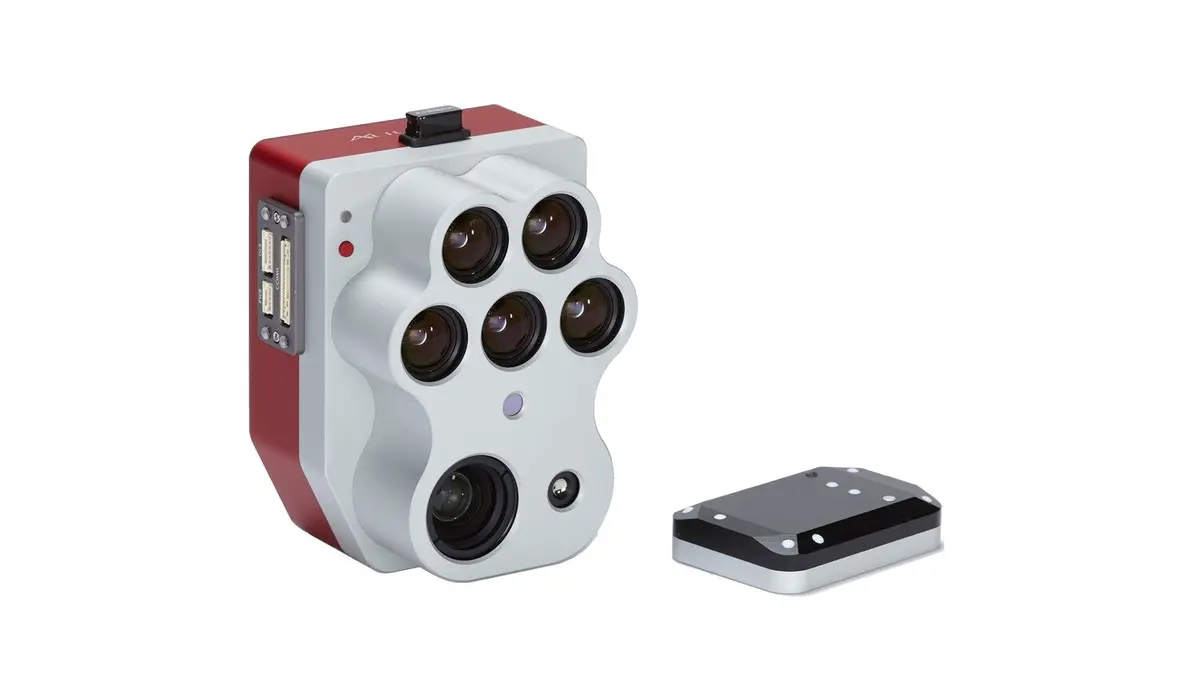

The MicaSense Altum-PT is the latest generation of the Altum ecosystem. With over twice the resolution of the original Altum, the Altum-PT integrates an ultra high-resolution panchromatic imager, a new thermal imager, and five discrete spectral bands. With the ability to capture such high-resolution data (1.2cm at 60m) , users have the ability for accurate planting counting, small canopy phenotyping, irrigation management, species classification, and more. Another key element to the Altum-PT is the ability for two image captures per second which translates to faster flight speeds and more acreage per flight.
Specs
MicaSense Altum-PT Specs
|
Weight |
460 g (16.2 oz.) Altum-PT + DLS2 |
|
Dimensions |
11.0 x 8.0 x 6.9 cm (4.3in x 3.1in x 2.7in) |
|
External Power |
7.0 V – 25.2 V |
|
Spectral Bands & Wavelength(nm) |
Blue (475 nm center, 32 nm bandwidth), Green (560 nm center, 27 nm bandwidth), Red (668 nm center, 14 nm bandwidth), Red Edge (717 nm center, 12 nm bandwidth), Near-IR (842 nm center, 57 nm bandwidth) |
| Thermal | FLIR LWIR thermal infrared 7.5-13.5um radiometrically calibrated |
|
Capture Rate |
2 captures per second raw DNG |
|
RGB Output |
12.4 MP (global shutter, aligned with all bands) |
| Sensor Resolution | 2064 x 1544 (3.2MP per MS band) 4112 x 3008 (12MP panchromatic band) 320 × 256 thermal infrared |
|
Ground Sample Distance (GSD) |
|
| Field of View | 50° HFOV x 38° VFOV (MS) 46° HFOV x 35° VFOV (PAN) 48º x 40º (thermal) |
|
Storage |
CFexpress card |
| Interfaces | 3 configurable GPIO: select from trigger input, PPS input, PPS output, and top of frame signals. Host virtual button. USB 2.0 port for WiFi. Serial. 10/100/1000 Ethernet. CF Express for storage |
| IP Rating | IP4X |
Note: Specifications are subject to change without notice
In the Box
Multispectral kit
(1) Altum-PT Camera
(1) DLS 2 with embedded GPS
(1) Calibrated Reflectance Panel (CRP 2)
(1) USB WiFi dongle
(1) Lens cover
(1) Necessary integration cables
(1) Assorted mounting hardware
(1) CFexpress card
(1) CFexpress card reader
(1) Hard Carrying Case
(1) Quick Start Guide
Multispectral kit with DJI SkyPort
(1) Altum-PT Camera
(1) DJI SkyPort mount
(1) DLS 2 with embedded GPS
(1) Calibrated Reflectance Panel (CRP 2)
(1) USB WiFi dongle
(1) Lens cover
(1) Necessary integration cables
(1) Assorted mounting hardware
(1) CFexpress card
(1) CFexpress card reader
(1) Hard Carrying Case
(1) Quick Start Guide
Compatibility
MicaSense Altum-PT Compatibility
DJI Matrice 350/300 Series
