KYB / HPG Solid Shock Shaft — 16mm OD × 10.23″ Length, 9mm Post, Smart Shox Compatible

Description

Includes (1) Shaft

Applications:

Commonly found on KYB Smart Shox IFS.

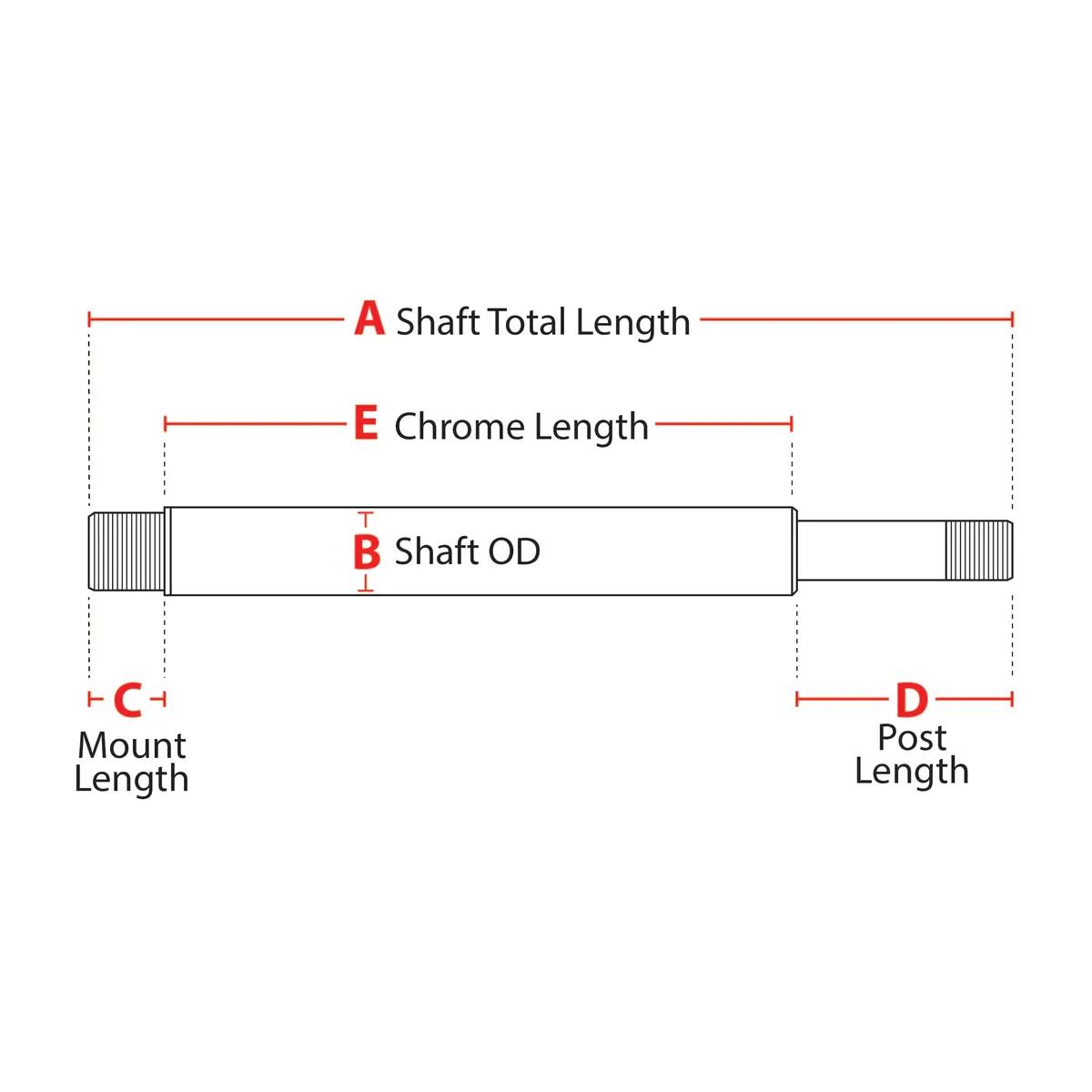

Dimensions:

A: Shaft Total Length: 10.23″

B: Shaft OD: 16mm

C: Mount: USE With Eyelet 23-35-009 (10.7″ Tip to Center Eye)

D: Post Length: 9mm-1.25 x 1.5″

In order to provide you with the correct fitment, please measure the shaft. Contact us if you need a spec not listed.

A. Shaft Total Length:

Measure the entire length of the shaft from end to end.
B. Shaft Outer Diameter:

Measure the diameter of the shaft
C. Mount Length:
Measure the mount from the end of the chrome to the end of the threads.

D. Post Length:
Measure the post from the end of the chrome to the end of the threads.

E. Chrome Length:
Measure the length from beginning of the chrome to the end of the chrome.

Recommended Shaft Clamp #64-35-030-A
