Freefly Ember Power + I/O Expansion Kit – Seamless Integration

Description

POWER + IO FOR FREEFLY EMBER

**** SOLD OUT – Will be approximately 4-6 weeks for new units ****

You can still order but just be aware of the wait time.

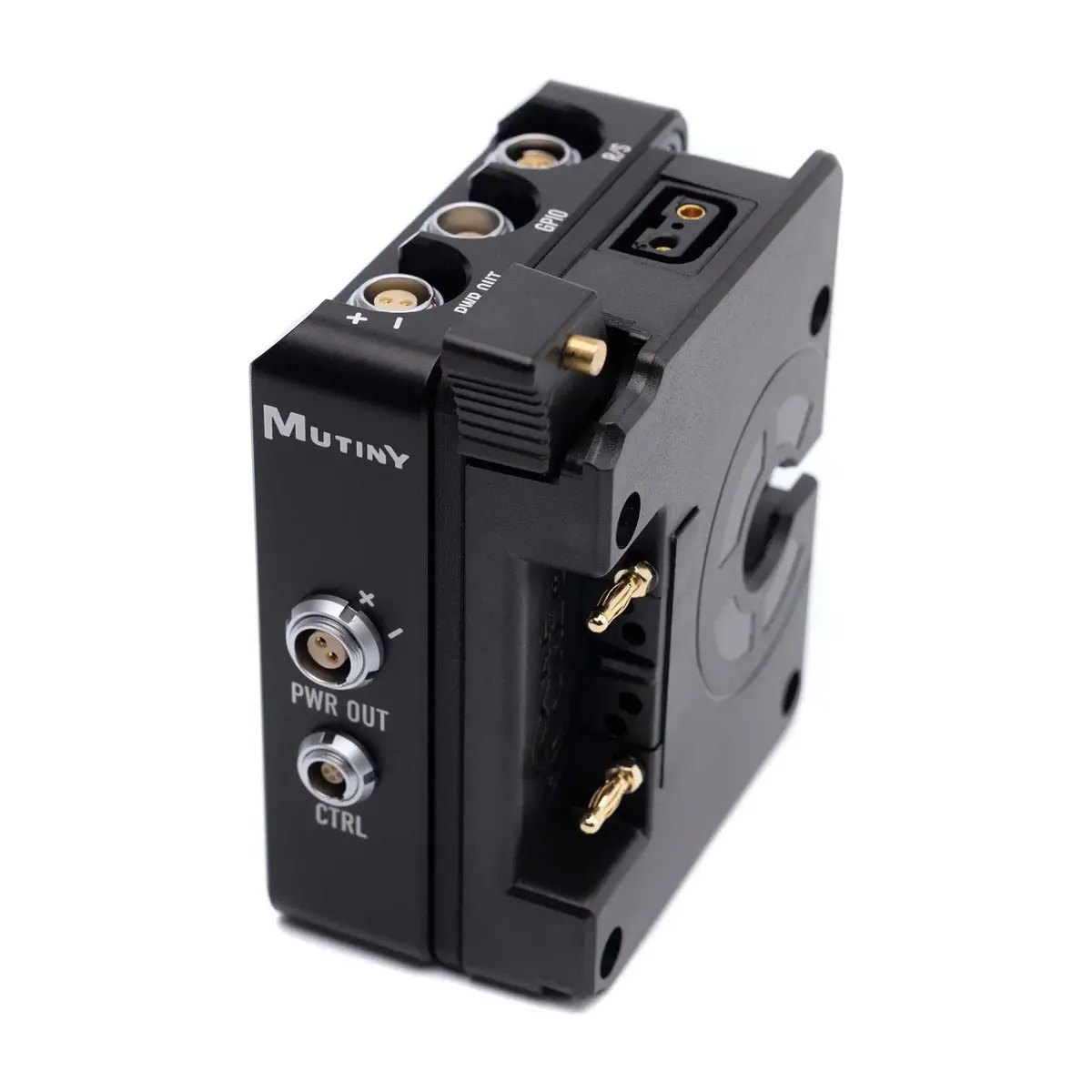

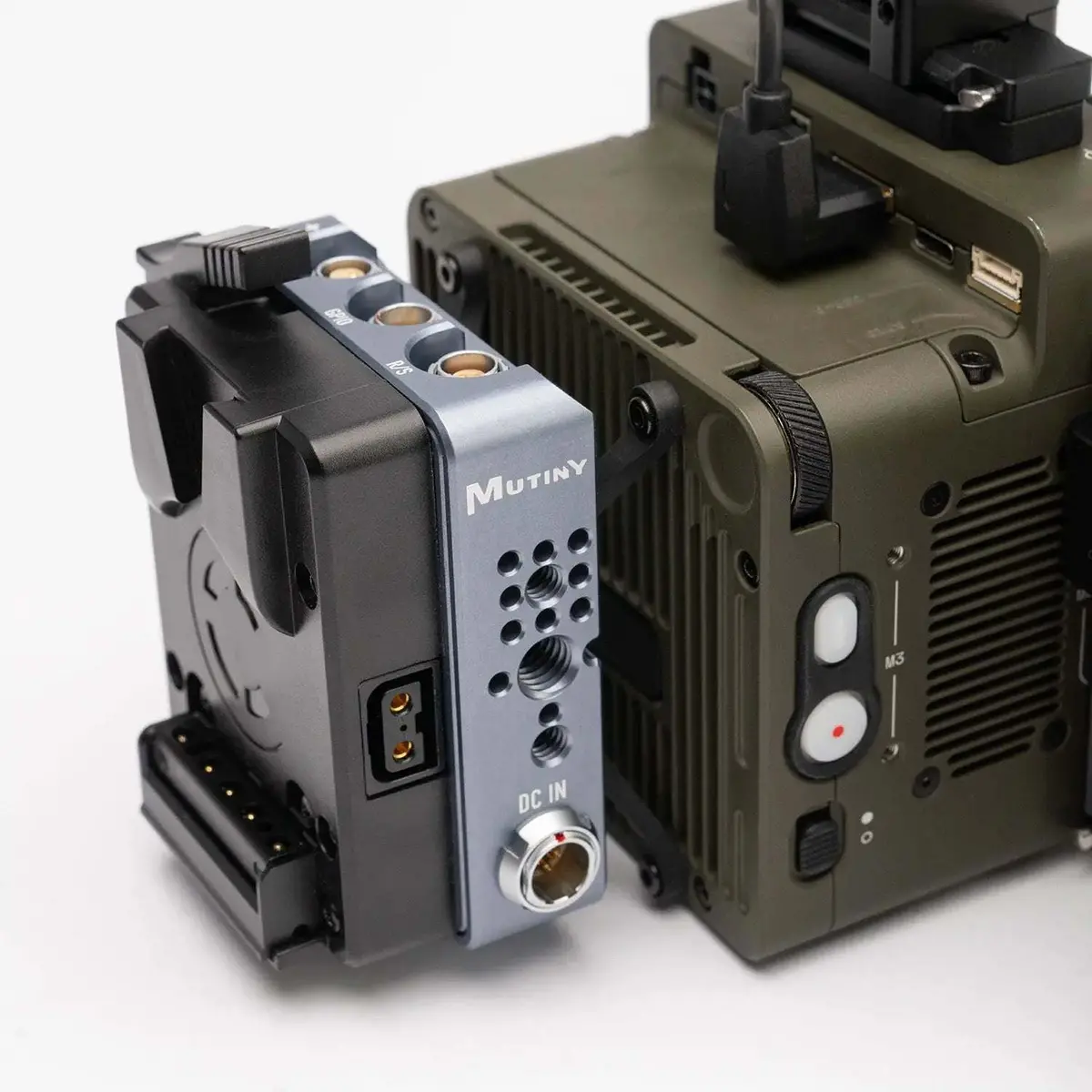

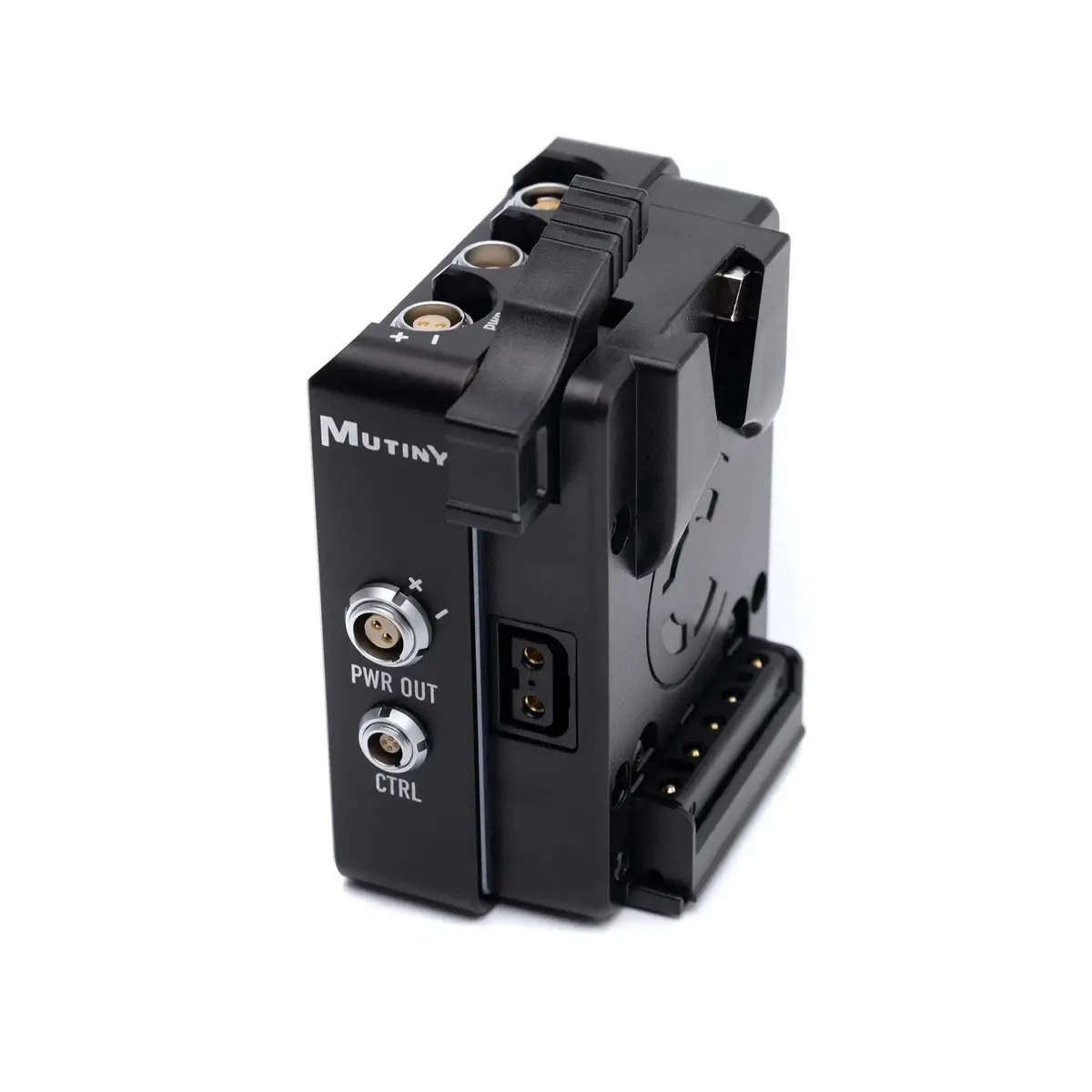

The MUTINY POWER + IO for Freefly Ember is a power distribution and IO box designed to address the needs of filmmakers using this amazing camera.  POWER + IO is CNC machined and hand assembled in New Hampshire.  (does not include cage)

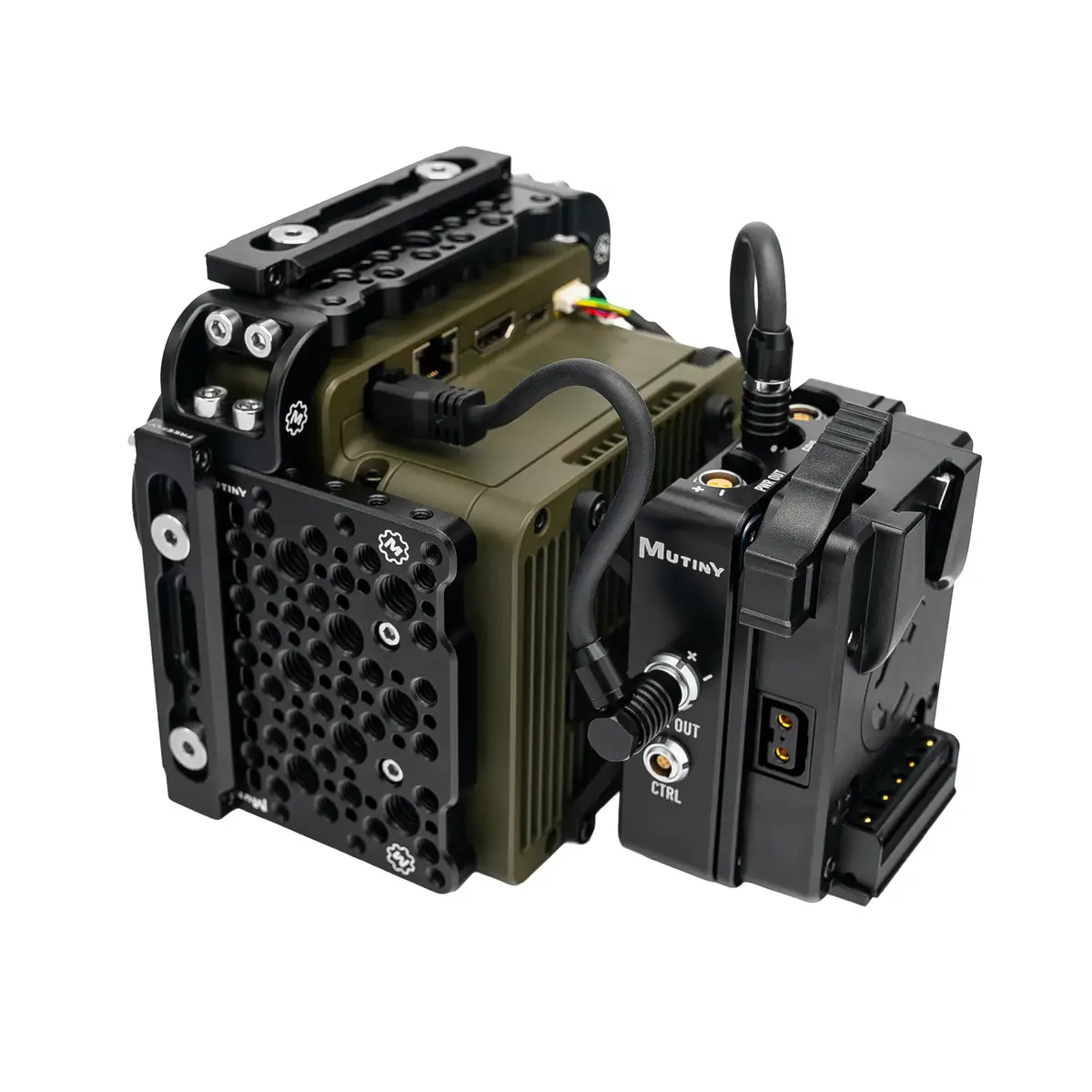

POWER + IO now comes with cables that can be used with the expander module or without.

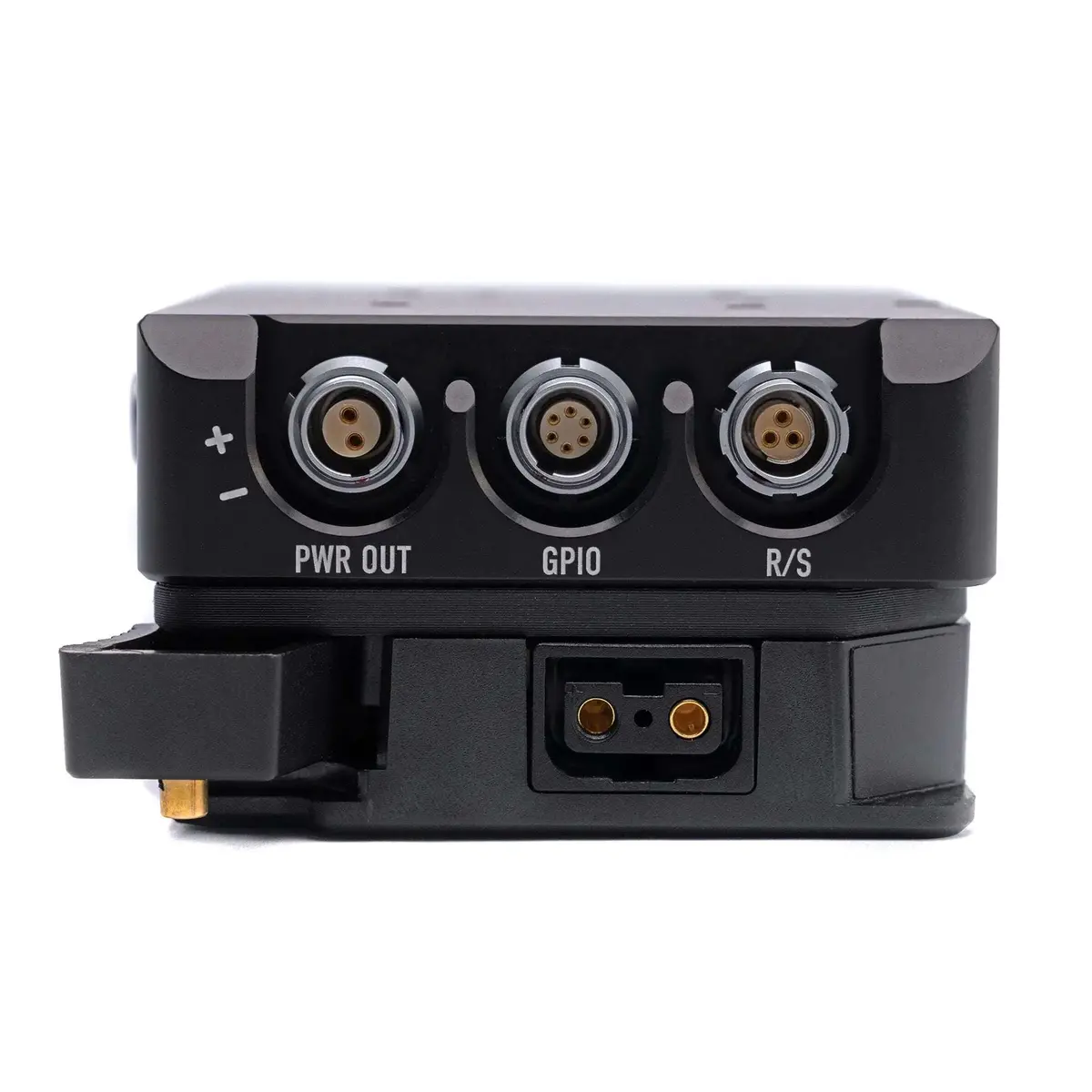

POWER + IO features

1x 6pin 1B DC input jack (uses same DC cable as DSMC2/ V-RAPTOR/Komodo X) 11-17 volts (do not use higher than 17v)

2x D-Tap power output connectors,

2x 2pin 0B power outputs,

1x Fischer 3 power + R/S 3pin port (pin 1 ground, pin 2 +, pin 3 R/S)

1x 6pin GPIO

1x 4pin 00b CTRL (RX/TX port for future expansion)

Includes:

1x 2pin 0B right angle to MOLEX 4 power cable

1x 6pin 0B Straight GPIO cable

Choice of Core V-mount or Gold mount battery plate (modified by us).

Instructions on installation:
