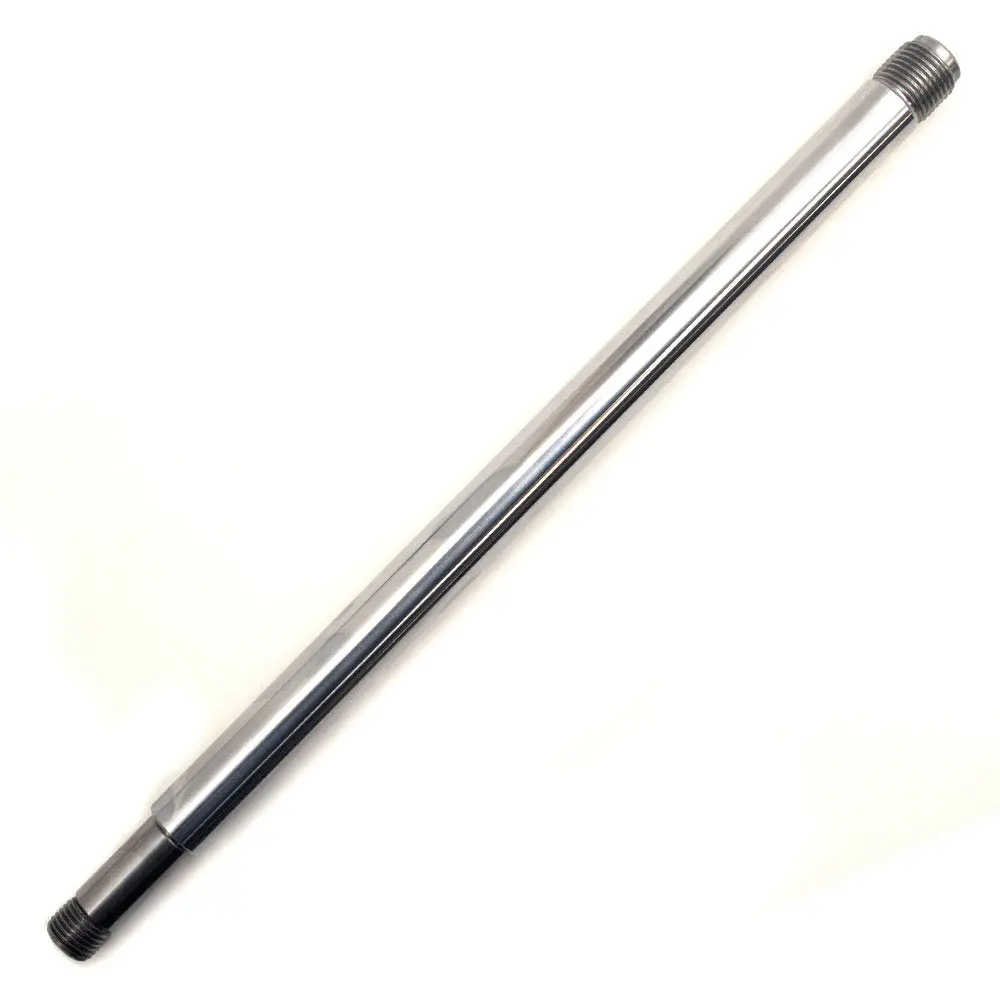

FOX Solid Shock Shaft – 0.625″ OD, Adjustable Length

Name: FOX Solid Shock Shaft – 0.625" OD, Adjustable Length
Brand: Fox
SKU: 115765
Availability: InStock

Price range: $48.66 through $65.33

TLG

Clear

Quantity

SKU: N/A Category: Fox, Shaft Brand: Fox

Description

Includes (1) Shaft

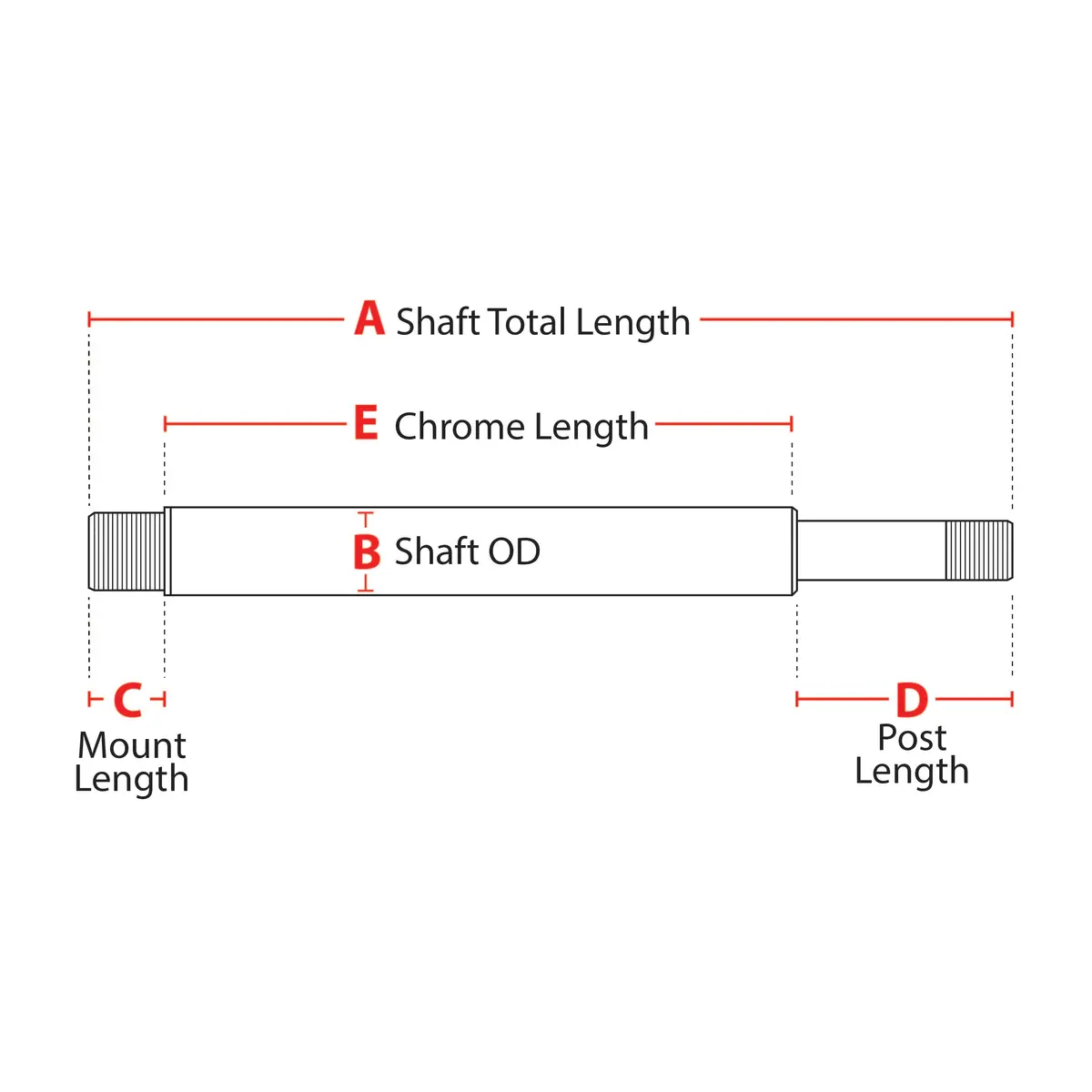

Dimensions

A: Shaft Total Length: Select above

B: Shaft OD: 0.625″

C: Mount 0.65″ Length x 5/8″-20 TPI

D: Post 1.4″ Length x 1/2″-20 TPI

In order to provide you with the correct fitment, please measure the shaft and choose the measurements above.

A. Shaft Total Length:

Measure the entire length of the shaft from end to end.
B. Shaft Outer Diameter:

Measure the diameter of the shaft.
C. Mount Length:
Measure the mount from the end of the chrome to the end of the threads.

D. Post Length:
Measure the post from the end of the chrome to the end of the threads.

E. Chrome Length:
Measure the length from beginning of the chrome to the end of the chrome.

Part Number:

This product has many variants. Not all specs are recorded. Contact us if you need specs that are not listed.

Recommended Shaft Clamp #64-35-030-A

Explore more from our collection.

TLG	10.25" TLG, 10.80" TLG – 3/8"-24 x 1.2" Post, 11" TLG, 14" TLG, 15" TLG, 15.5" TLG, 18.3" TLG –, 10.0, 10.1, 10.4, 10.75, 11.4, 13.60, 13.8, 14.5, 7.50, 7.65, 8.10, 8.20, 8.40, 8.65, 9.40, 9.55
