Description

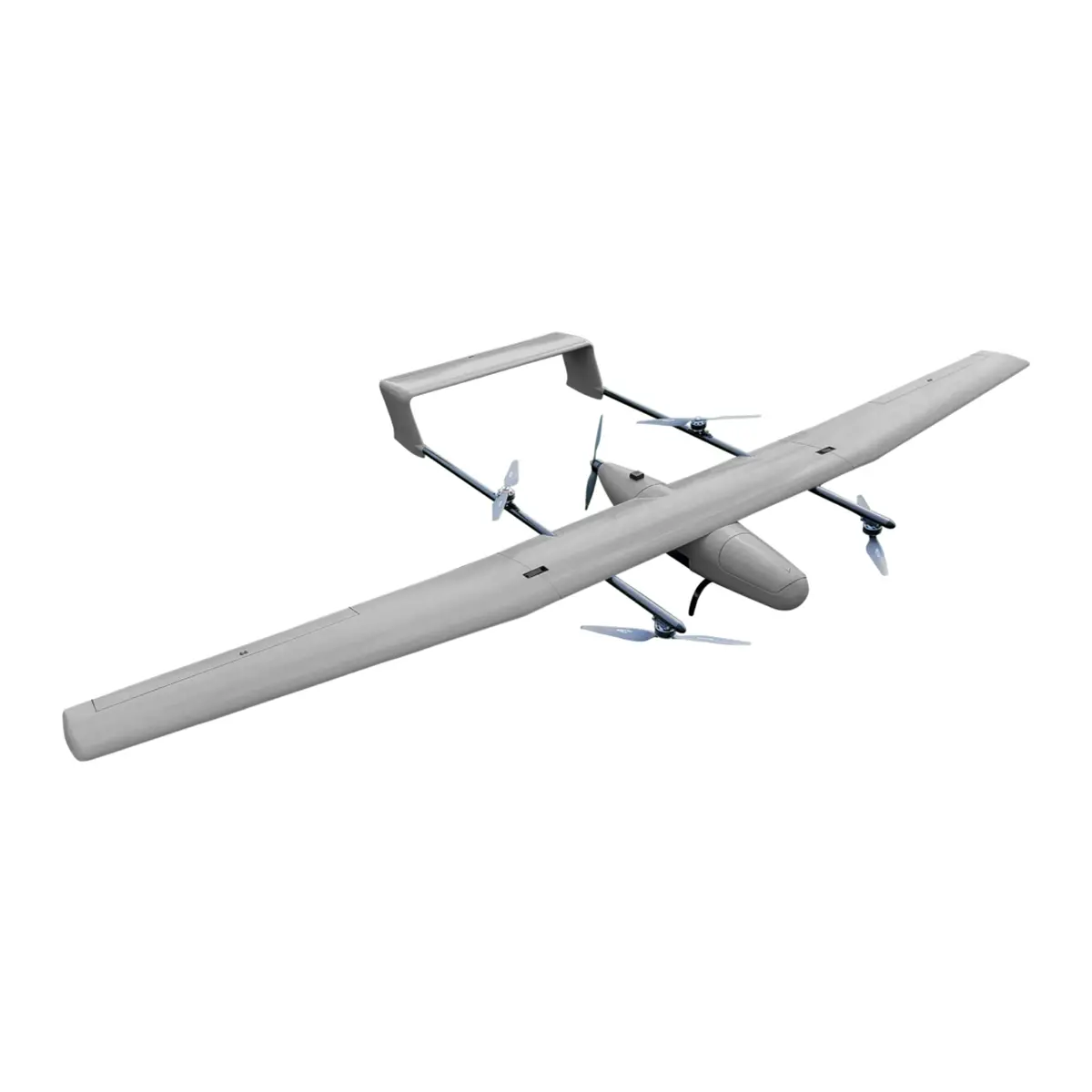

The Event 38 E400 ISR is a fixed wing VTOL drone built for security, surveillance and search and rescue. First responders such as police, firefighters, sheriffs, national guard units and border patrol agencies can use the long flight time and range of the E400 to rapidly reach a target and to stay with it for an extended period.
The E400 ISR boasts a 2.5 hour endurance. Its all electric power is mechanically simple, keeping maintenance and operating costs to a minimum while maximizing reliability.
Military-Grade Drone Technology for Easier Operation
In 2019, Event 38 started working with the Air Force’s Rapid Sustainment Office (RSO) and the US Air Force Air National Guard to experiment with building a ruggedized and easier to use version of our fixed wing drones for first responders. We redesigned the airframe in carbon fiber, incorporated a rugged ground control station, and a high zoom EO/IR visible/thermal payload.
Durable, Lightweight Carbon Fiber Body
A good drone needs to hold up against a rugged service environment. That’s why the E400 is made out of carbon fiber composite. It’s much more durable than foam and stiffer than fiberglass, so it can fly just fine no matter where you go. The E400 can take off from a back road, land in a rainforest clearing, and ride in the back of a truck without sustaining damage.
Proudly Made in the United States
Every E400 is manufactured at Event 39’s headquarters in Cleveland, Ohio. The parts are designed, manufactured, and assembled in the same place which gives us total control over the mechanical and electrical systems. The E400 is compliant with NDAA Section 848 and Executive Order 13981.
Rugged Ground Control Station
The tablet based ground control station is lightweight and portable. It includes everything needed to plan and fly missions. Using the joysticks or the map based point and click interface, you can control the aircraft’s flight path and point the payload simultaneously, and leverage autonomy to take the workload off the operator.
Swappable Payload Bay
The payload bay is easily removable and interchangeable with other E400 payloads. This makes it easy to have one aircraft perform multiple types of missions including mapping and surveillance. Perform routine patrols then be ready to respond quickly to a natural disaster by mapping damage in the critical hours afterwards.
Specs
Event 38 E400-ISR VTOL Specs
| Cruise Speed | 36 mph (16m/s) |
| Dash Speed | 49 mph (22m/s) |
| Airframe Construction | Carbon Fiber Composite |
| One-Way Flight Range | 90 miles (144km) |
| Telemetry Range | 3 – 10 miles (4.8 – 16km) |
| Flying Weight | 20lbs (9kg) |
| Setup Time | 4 minutes |
| Packed Dimensions | 36x45x13.5in (91x114x34cm) |
| Wind Resistance | Up to 18mph (8m/s) |
| Weather Rating | Designed to IP53 5-110°F (-15-43°C) |
Videos
E400 ISR Demo Flight
