Description
Sold individually

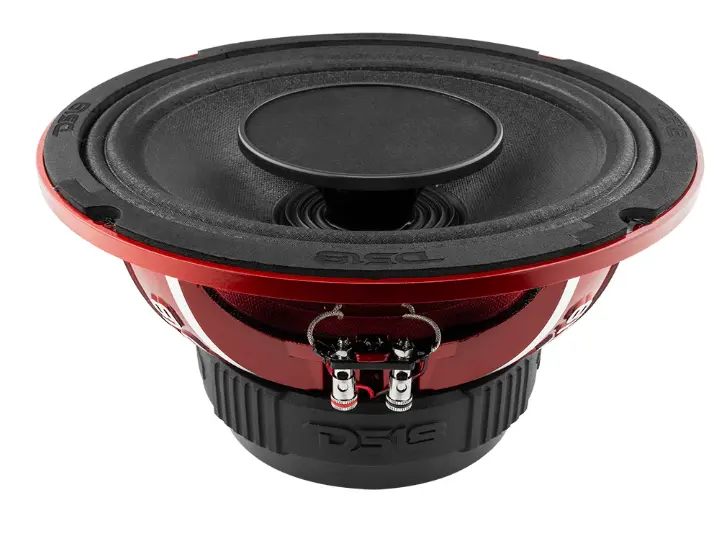

- 10″ Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 350 Watts(700 Watts Peak)
- Impedance: 4 Ohm
- Ferrite & Neodymium Magnets
- Water Resistant IPX5
- 100dB ~ w/Grill
SPECS
SKU
PRO-HY10.4B
Nominal Diameter
10″ / 254mm
Nominal Impedance
4 Ohm
RMS Power Handling
350W
MAX Power Handling
700W
Sensitivity (1w/1m)
100dB
Frequency Response
40Hz – 20KHz
Recommended HI Pass Crossover
70Hz
Number of ways
2 ways
Pair or Single
Single
Grill Included
Yes
Woofer Specifications
Voice Coil Diameter
2″ / 50.8mm
Voice Coil Former Material
Glass Fiber
Winding Material
CCAW
Cone Material
Water Resistant Paper (IPx5)
Surround Material
Cloth
Basket Material
Aluminum
Basket Color/Finish
Matte Black
Magnet Material
Ferrite
Magnet Weight
49 Oz
Displacement Volume
2.86L / 0.1ft3
Thiele & Small Parameters
Equivalent Volume Vas
21.8L / 0.76ft3
Excursion (one way) Xmax
10mm
Free Air Resonance Fs
95Hz
Mechanical Factor Qms
12.59
Electrical Factor Qes
0.995
Total Factor Qts
0.922
Mechanical Mass Mms
26.78g
Mechanical Compliance Cms
0.125 mm/N
BL Factor BL
6.851
Voice Coil Inductance Le
0.313mH
Cone Area Sd
352.99 Cm2
DC Resistance Re
3.4 ohms
Mechanical Mass w/o air Mmd
25g
Driver Specifications
Voice Coil Diameter
1.5″ / 38.6mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Titanium
Magnet Material
Neodymium
Horn Diameter
4.25″ / 108mm
Speaker Measurement
Overall Diameter
10.3″ / 261.5mm
Overall Depth
5.7″ / 144.4mm
Front Mount Baffle Cutout
9″ / 231mm
Mounting Depth
5.31″ / 135mm
Motor Diameter
5.7″ / 145mm
