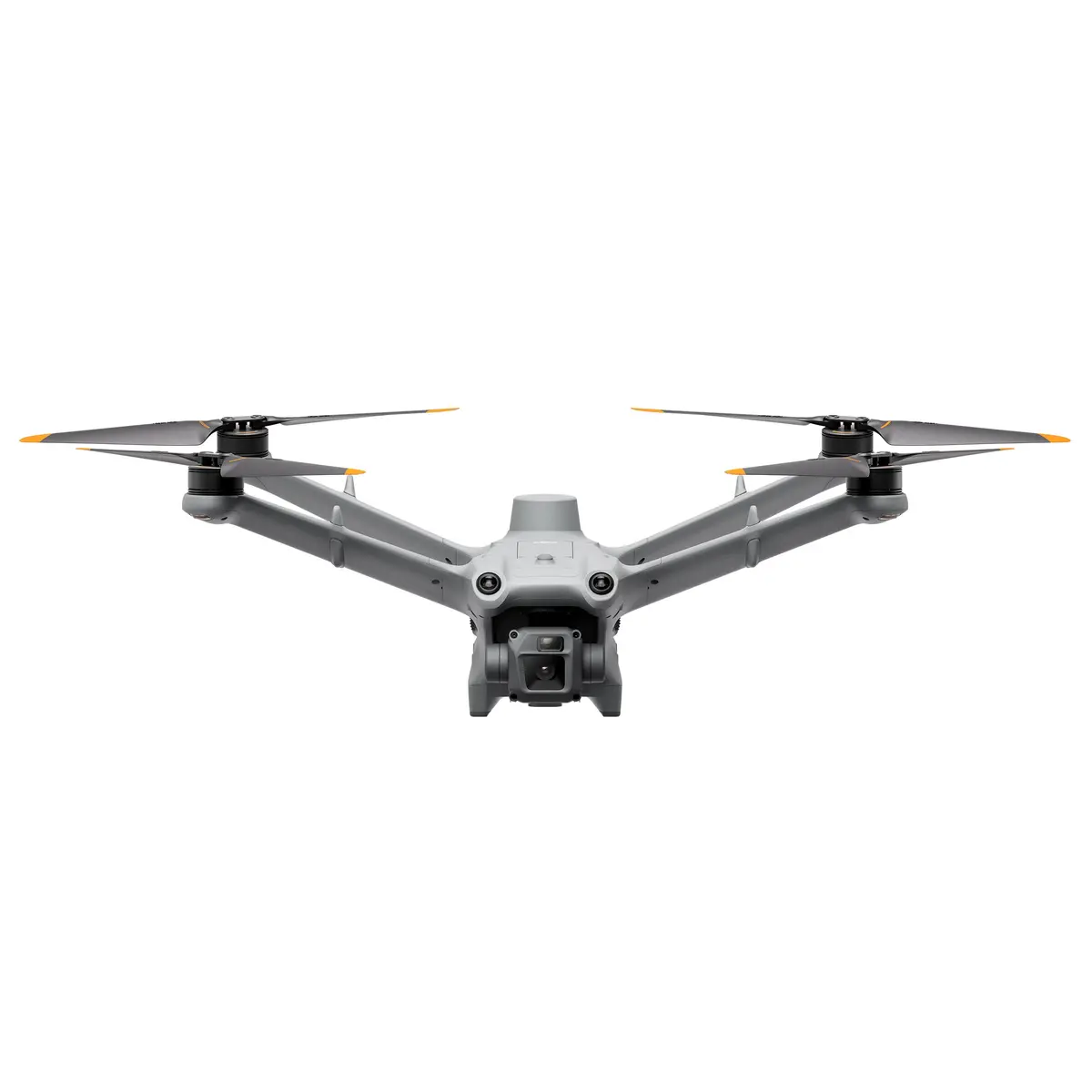

DJI Matrice 3D Drone Compatible with Dock 2

Description

The all-new DJI Matrice 3D is specifically designed for DJI Dock 2. Matrice 3D is equipped with both a tele camera and a wide-angle camera with a mechanical shutter, meeting the needs for 1:500 high-precision mapping tasks.

High-Performance Aircraft

Wide Angle Camera	Tele Camera
4/3 CMOS 24mm Format Equivalent 20MP Effective Pixels Mechanical Shutter	1/2-inch CMOS 162mm Format Equivalent 12MP Effective Pixels

Superior, Comprehensive Performance

Thanks to its powerful operation capabilities, DJI Matrice 3D meets the requirements of high-standard operations.

IP54 Dustproof and Waterproof	50 Mins Max Flight Time	6-Directional Obstacle Sensing System
10 km Max Effective Operating Radius	400 Battery Cycles	Integrated RTK Module ±3cm Positioning Accuracy

Specs

DJI Matrice 3D Specifications

Aircraft

Weight	3.1 lbs. (1410g)
Maximum take-off weight	3.54 lbs.
Dimensions	13.2″x15.66″x6″ (335x398x153mm)
Working Temperature	20°C–45 °C
IP Rating	IP54
Max Flight Time	50 min
Max Ascent Speed	13.4 mph (normal mode) 17.8 mph (sport mode)
Max Descent Speed	13.4 mph (normal mode) 13.4 mph (sport mode)
Max Flight Speed	Normal mode: obstacle avoidance turned on: forward flight 33.5 mph, backward flight 26.8 mph side flight 22.3 mph. Sports mode: forward flight 47 mph, backward flight 40.2 mph, side flight 35.7 mph.
Max Horizontal Flight Speed	21 m/s
Max Hover Time	40 min
Max Wind Resistance	Wind resistance during operation: 26.8 mph Wind resistance during takeoff and landing: 17.9 mph.
Max Take-off Altitude	1.55 mi.
Max Operational Range	6.21 mi.

Wide-Angle Camera

Sensor	1/1.32 inch CMOS
Equivalent Focal Length	24 mm; 20MP
Shutter	Mechanical Shutter

Telephoto Camera

Sensor	1/2-inch CMOS
Equivalent Focal Length	161 mm; 12MP
Zoom	56x hybrid zoom

In the Box

(1) Matrice 3D Aircraft
(1) CW Propellers (Pair)
(1) CCW Propellers (Pair)
(1) Screws and Washers

FAQ

Are the accessories of the Mavic 3 Enterprise Series compatible with the Matrice 3D series?
Only the DJI RC Pro Enterprise remote controller is shared between the two platforms.

Does the DJI Matrice 3D Series support manual flight with the RC Pro Enterprise?
Yes, but due to limited functions, it’s recommended to only use RC Pro Enterprise to complete configuration and link the M3D Series as a controller B.

Does the M3D Series support mobile time-laps, smart follow, and time-lapse photography?
No, it does not.

Why does it rattle when I shake the Matrice 3D aircraft?
This is normal, as a damper has been installed in he aircraft arm to reduce vibrations.
