Description

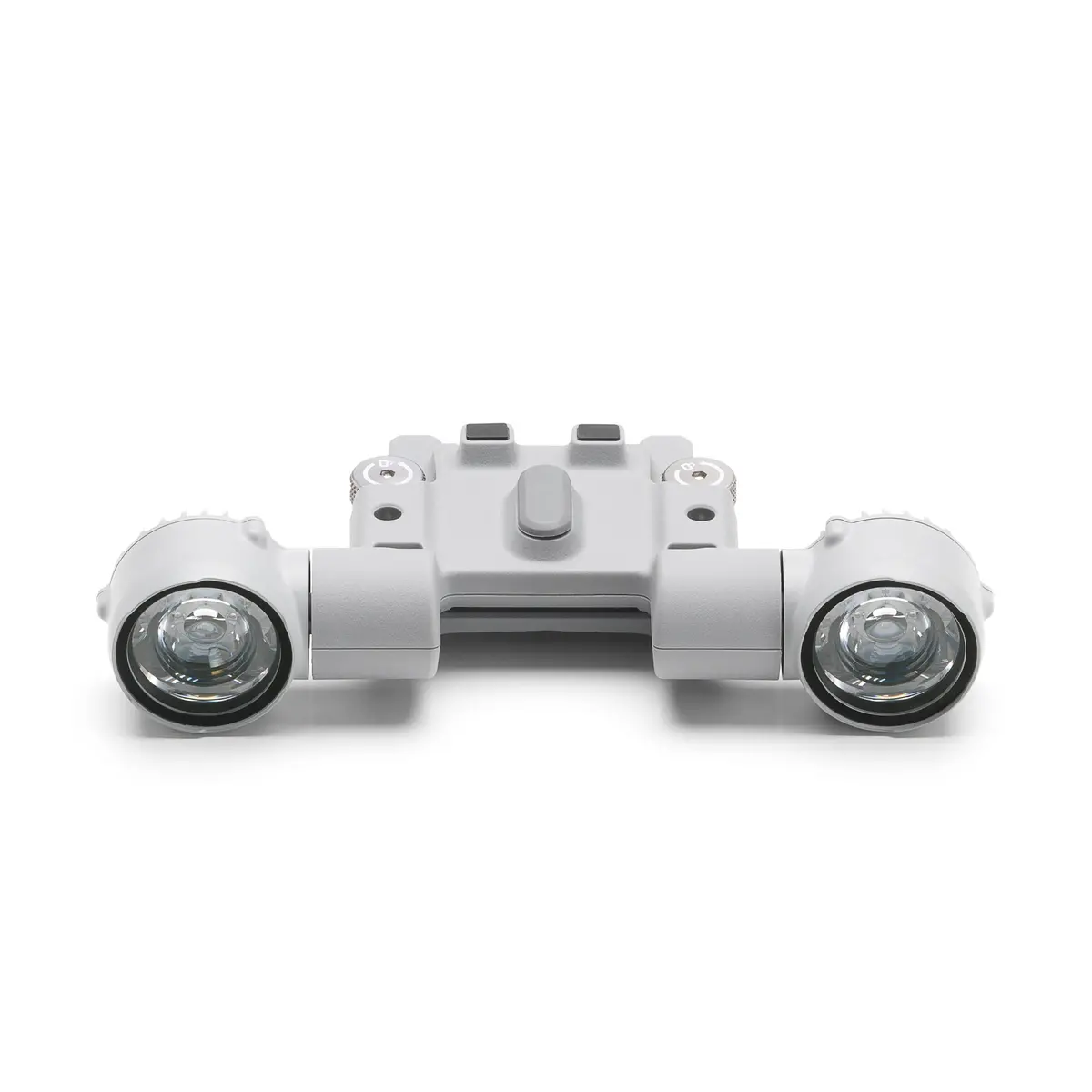

The DJI AL1 Spotlight supports two modes: always-on and strobe. It can clearly illuminate subjects even from a distance of 100 meters. [1] Additionally, it can intelligently link with the gimbal, following the camera’s movements to ensure the illuminated area matches the camera’s view. It also offers a wide fov lighting mode, which can light up a broader area when in wide-angle mode. The spotlight and speaker can be used independently or in combination, meeting the needs of more operational scenarios.
Tips
- Tighten the screws to ensure secure installation. When installing on the aircraft for long-term use, use the included hex key to tighten the screws again after installation.
- Activate the spotlight following the app prompts after installation. If a firmware update is available, please upgrade to the latest version promptly.
- The performance of the Matrice 4 Series aircraft’s propulsion and vision system will be affected after the spotlight is mounted. Fly with caution.
- DO NOT point the spotlight directly at people’s eyes.
- The spotlight may become hot after prolonged operation. Please be careful to avoid burns.
In the Box
(1) Spotlight
(2) Spare Screw
(1) Hex Key
Specs
| Weight (including bracket) | 99 g |
| Weight (excluding bracket) | Approx. 91 g |
| Dimensions (including bracket) | 95×164×30 mm (L×W×H) |
| Dimensions (without bracket) | 79×164×28 mm (L×W×H) |
| Max Power | 32 W |
| Illuminance | 4.3±0.2 lux @ 100 meters 17±0.2 lux @ 50 meters |
| Effective Illumination Angle | 23° (10% relative illuminance) |
| Effective Illumination Area | 1,300 square meters @ 100 meters (Normal Mode) 2,200 square meters @ 100 meters (Wide FOV Mode) |
| Modes | Always-on and strobe |
| Gimbal Mechanical Range (Tilt) | -140° to 50° |
| Gimbal Controllable Range (Tilt) | -90° to 35° |
| Max Control Speed (Tilt) | 120°/s |
| Gimbal Alignment Accuracy | ±0.1° |
| Operating Temperature | -4° to 122° F (-20° to 50° C) |
| Ingress Protection Rating | IP55 |
| Mounting Method | Quick-release hand-tightened screws |
Compatibility
DJI Matrice 4 Series Aircraft
DJI Matrice 4D Series Aircraft
