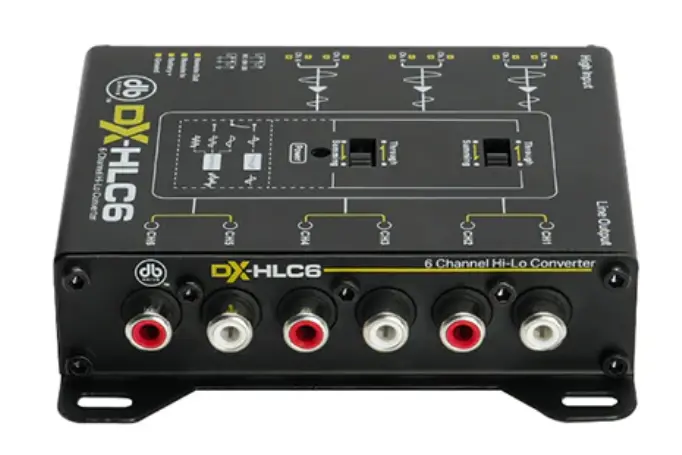

DB Link DX-HLC6 6-Channel High-to-Low Level Converter with Summing Function

Description

6 Channel Hi – Low Level Converter w Summing Capability

• 6 Channel speaker level inputs
• 6 – low level RCA output channels
• selectable summing input switches
• Signal Sensing remote turn on
• Variable level Matching output gains
• Built-in OEM load compatible
• 12 Volt -DC Remote Trigger Output
• Operating Voltage: 8-16V
• Current Draw: 100mA
• Input Impedance: 1 Ω
• Output Voltage: 8.5V
• Channel Separation: >65dB
• Output T.H.D.: 0.01%
• S/N: >100dB
• REM Output Current: 12V>100mA
• Frequency Response (+/-1dB): 10Hz-20KHz
• Input Sensitivity: 2-30V
