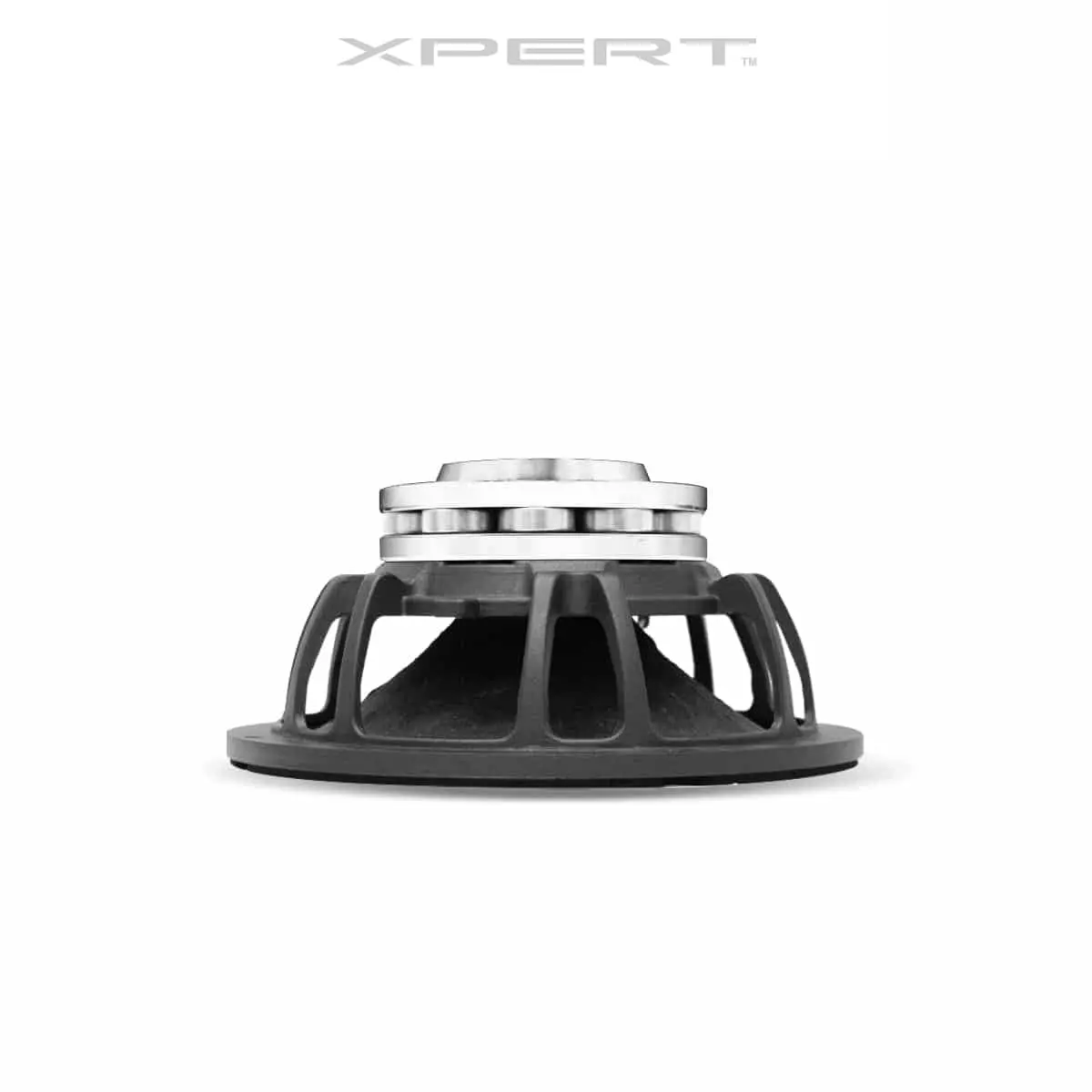

Description
EXM8N – Sold individually-*TERRITORY RESTRICTED*
- 8″ midrange
- 2″ (51mm) Voice Coil
- Neodymium 10 Piece Radially Equalized Magnet Assembly
- IP52 Rated Paper Cone With Treated Cloth Surround
- Die-Cast Aluminum Basket With Radial Venting
| T/S PARAMETERS | |
|---|---|
| Resonant Frequency (fs) | 71.3Hz |
| D.C. Voice Coil Resistance (Re) | 3.2Ω |
| Mechanical Quality Factor (Qms) | 3.11 |
| Electrical Quality Factor (Qes) | 0.31 |
| Total Quality Factor (Qts) | 0.28 |
| Compliance Equivalent Volume (Vas) | 24.8L |
| Mechanical Compliance (Cms) | 0.37 mm/N |
| Efficiency (1W/1M) | 99.7 dB |
| ADDITIONAL SPECS | |
|---|---|
| Nominal Impedance | 4Ω |
| Power Handling | 300 Watts |
| Dynamic Wattage | 600 Watts |
| Sensitivity (1w/1m) | 99.7 dB |
| Voice Coil Diameter | 2.0″ (51mm) |
| DIMENSIONS | |
|---|---|
| Mounting Depth: | 3.46″ (88mm) |
| Mounting Diameter: | 7.09″ (180mm) |
