Description

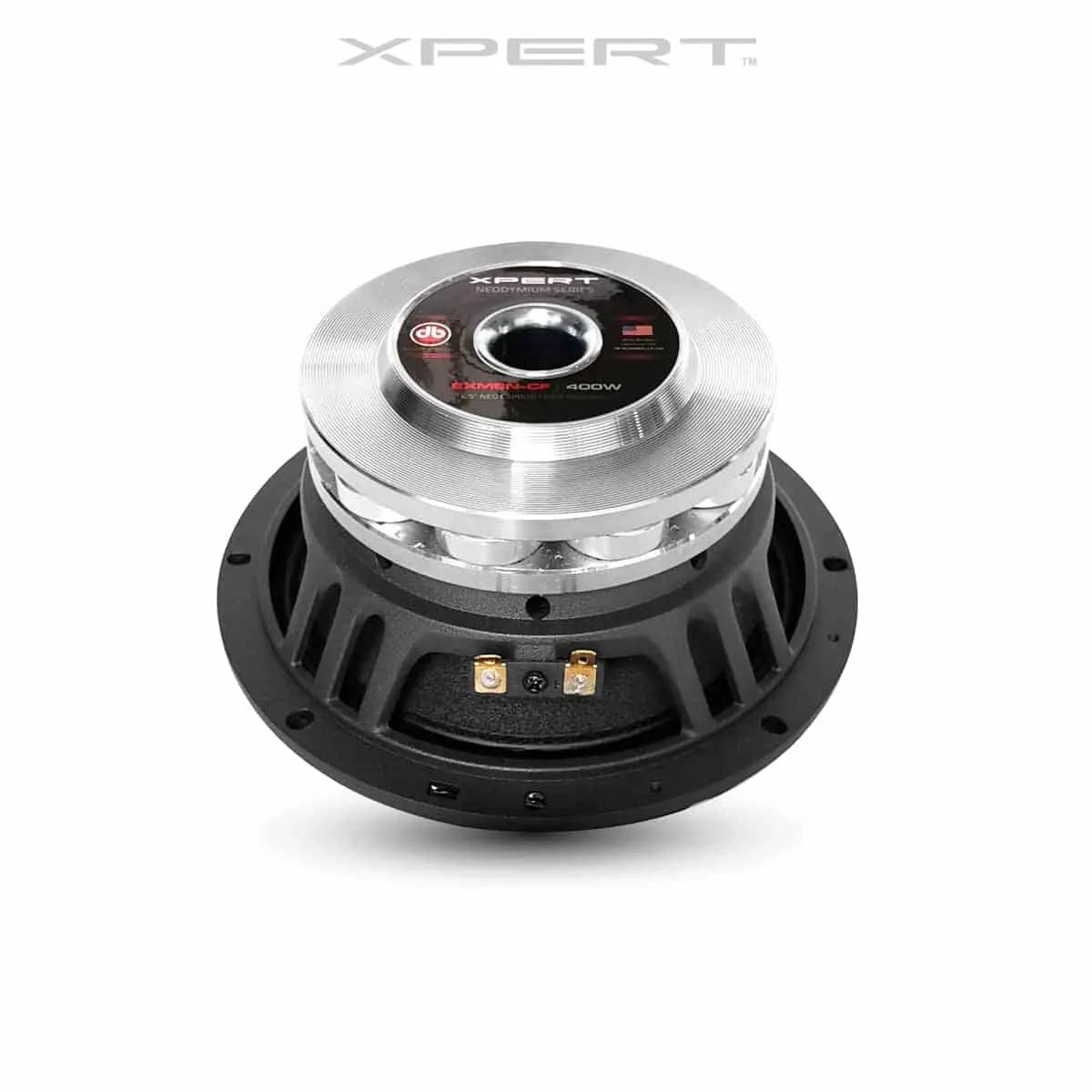

EXM6N-CF – Sold individually-*TERRITORY RESTRICTED*
- 6.5″ Neo Carbon Fiber midrange
- 2.0″ (51mm) Midrange Voice Coil
- 10 Neodymium Ring Magnet Assembly
- IP65 Rated Weather Resistant Carbon Fiber Cone with Rubber Surround
- Die-Cast Aluminum Basket with Radial Venting
| T/S PARAMETERS | |
|---|---|
| Resonant Frequency (fs) | 61.2Hz |
| D.C. Voice Coil Resistance (Re) | 3.2Ω |
| Mechanical Quality Factor (Qms) | 4.82 |
| Electrical Quality Factor (Qes) | 0.32 |
| Total Quality Factor (Qts) | 0.30 |
| Compliance Equivalent Volume (Vas) | 6.3L |
| Mechanical Compliance (Cms) | 0.28 mm/N |
| Efficiency (1W/1M) | 98.1 dB |
| ADDITIONAL SPECS | |
|---|---|
| Nominal Impedance | 4Ω |
| Power Handling | 200 Watts |
| Dynamic Wattage | 400 Watts |
| Sensitivity (1w/1m) | 98.1 dB |
| Voice Coil Diameter | 2.0″ (51mm) |
| DIMENSIONS | |
|---|---|
| Mounting Depth: | 2.76″ (70mm) |
| Mounting Diameter: | 5.71″ (145mm) |
