Description

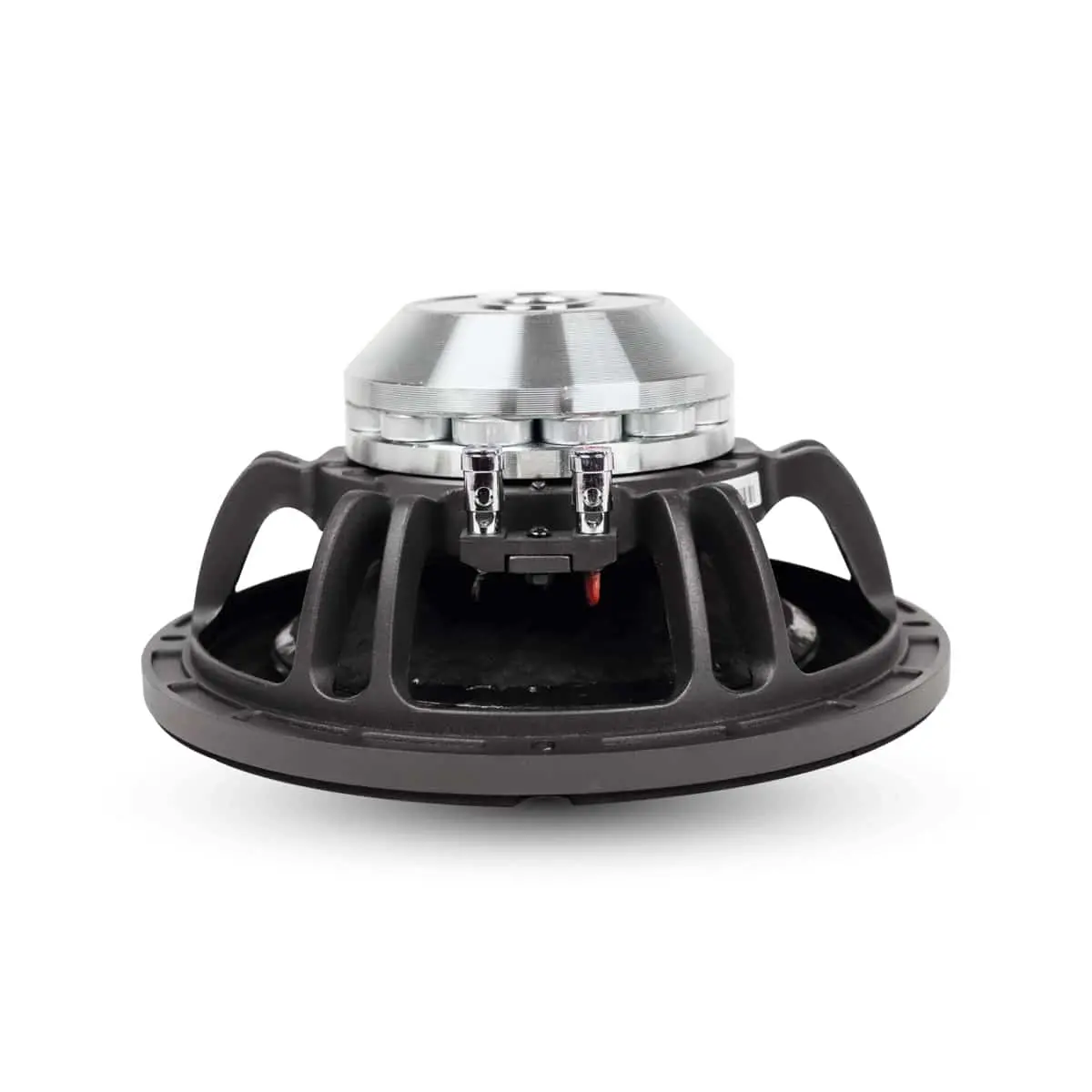

EX10NMB – Sold individually -*TERRITORY RESTRICTED*
- 10″ Neodymium Series MidBass
- 2.5″ (63.5mm) Midrange Voice Coil
- Neodymium 12 Piece Radially Equalized Magnet Assembly
- IP52 Rated Paper Cone with Treated Rubber Surround
- Die-Cast Aluminum Basket with Radial VentingDimensions
| T/S PARAMETERS | |
|---|---|
| Resonant Frequency (fs) | 40Hz |
| D.C. Voice Coil Resistance (Re) | 3Ω |
| Mechanical Quality Factor (Qms) | 2.913 |
| Electrical Quality Factor (Qes) | 0.485 |
| Total Quality Factor (Qts) | 0.416 |
| Compliance Equivalent Volume (Vas) | 25.94L |
| Mechanical Compliance (Cms) | 167.735 mm/N |
| Efficiency (1W/1M) | 92 dB |
| ADDITIONAL SPECS | |
|---|---|
| Nominal Impedance | 3Ω |
| Power Handling | 400 Watts |
| Dynamic Wattage | 800 Watts |
| Sensitivity (1w/1m) | 92 dB |
| Voice Coil Diameter | 2.5″ (63.5mm) |
| DIMENSIONS | |
|---|---|
| Mounting Depth: | 4.27″ (108.5mm) |
| Mounting Diameter: | 9″ (230mm) |
