Description

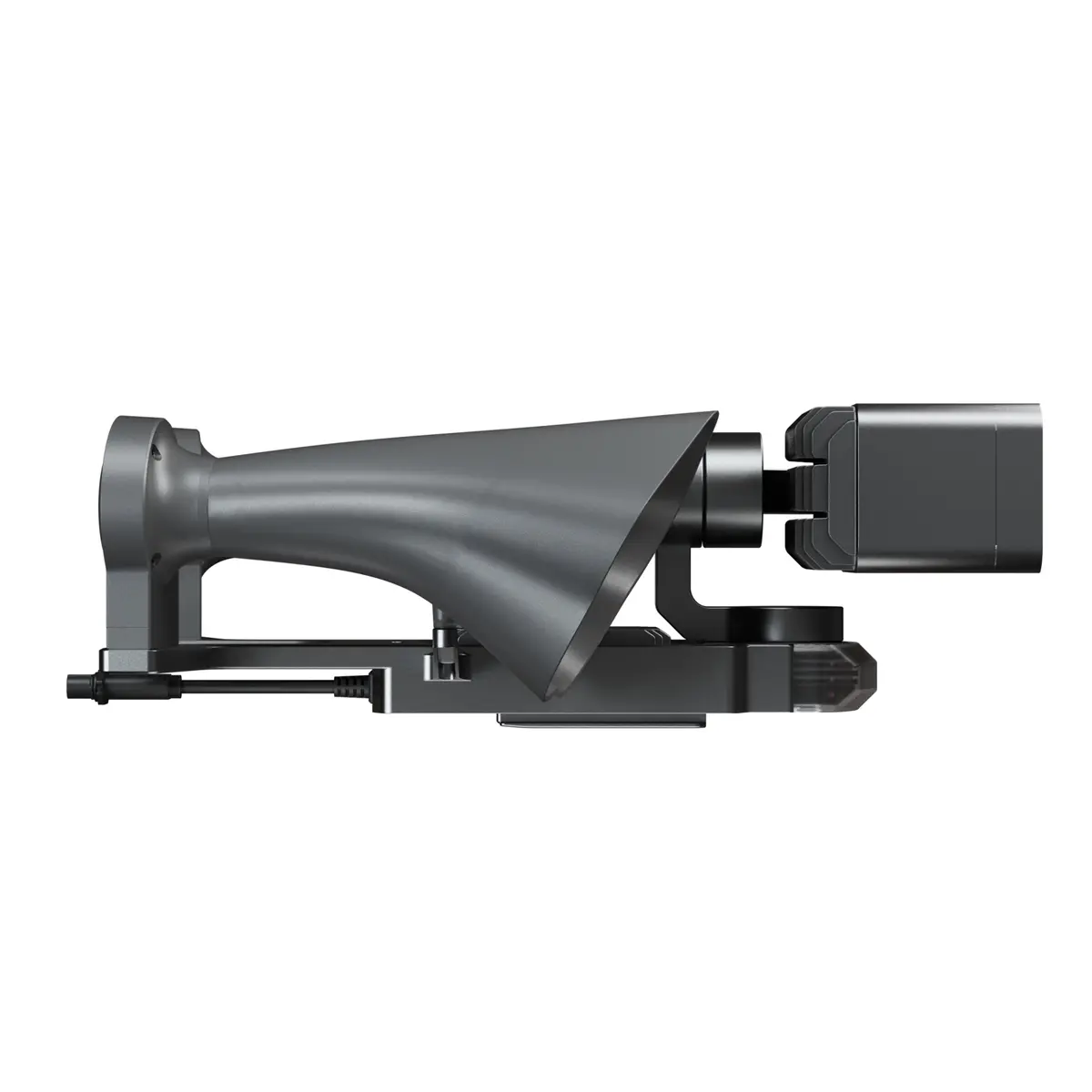

The CZI LP35 Searchlight and Broadcasting System boasts a maximum power output of 90W and can be integrated with the M350 RTK drones using the OSDK interface. It features a concentrated 13° beam that achieves uniform brightness across an area, illuminating up to 150 meters in height with a central intensity of 6.3 lux and effectively covering an area of 917 square meters. The system’s loudspeaker delivers robust sound penetration with a maximum sound pressure level of 126dB and an effective broadcast range of 400 meters. It supports live broadcasting, TTS, and other functionalities for quick and easy operation. Additionally, built-in red and blue flashing warning lights enhance the visibility of police drones and synchronize seamlessly with the gimbal camera to augment camera operations efficiently.
SPECS
| Dimensions / mm |
L235*W220*H85 |
| Weight |
≤550 g |
| Total Power |
96W（Max） |
| Electrical Interface |
DJI OSDK |
| Bluetooth Protocol |
1Bluetooth v4.2 BR&EDR and Bluetooth Low Energy |
| Bluetooth Operating Frequency |
2400‒2483.5 MHz |
| Operating temperature |
-20~+50℃ |
| Flashing Light Mode |
Red and blue blinking, Red blinking, blue blinking |
| Visual Distance |
13° |
| Maximum Power |
330W |
| Effective Broadcasting Distance |
400m |
| Broadcasting Method |
Live broadcasting |
| Light flux of Searchlight |
6000±3% |
| Searchlight FOV |
13° |
| Central Illuminance |
6.3 | 14.4 | 57 Lux |
| Illumination Distance |
150 | 100 | 50 m |
| Spot Diameter |
34 | 22.8 | 11.4 m |
| Illumination Area |
917 | 407 | 102 m2 |
| Searchlight LED Power |
60W |
| Range of Rotation |
Pitch -55°~+65° Horizontal ±35° Roll ±25° |
| Searchlight Functions |
Normally on |
| Compatibility |
M350 |
| APP Support |
czi Pilot, DJI Pilot, czi Audio (Android), czi Assistant (PC) |
Compatibility
DJI Matrice 350 RTK only
