CDC DJI Matrice 4 PRCs Rapid Charging Station for Professional Workflows

Description

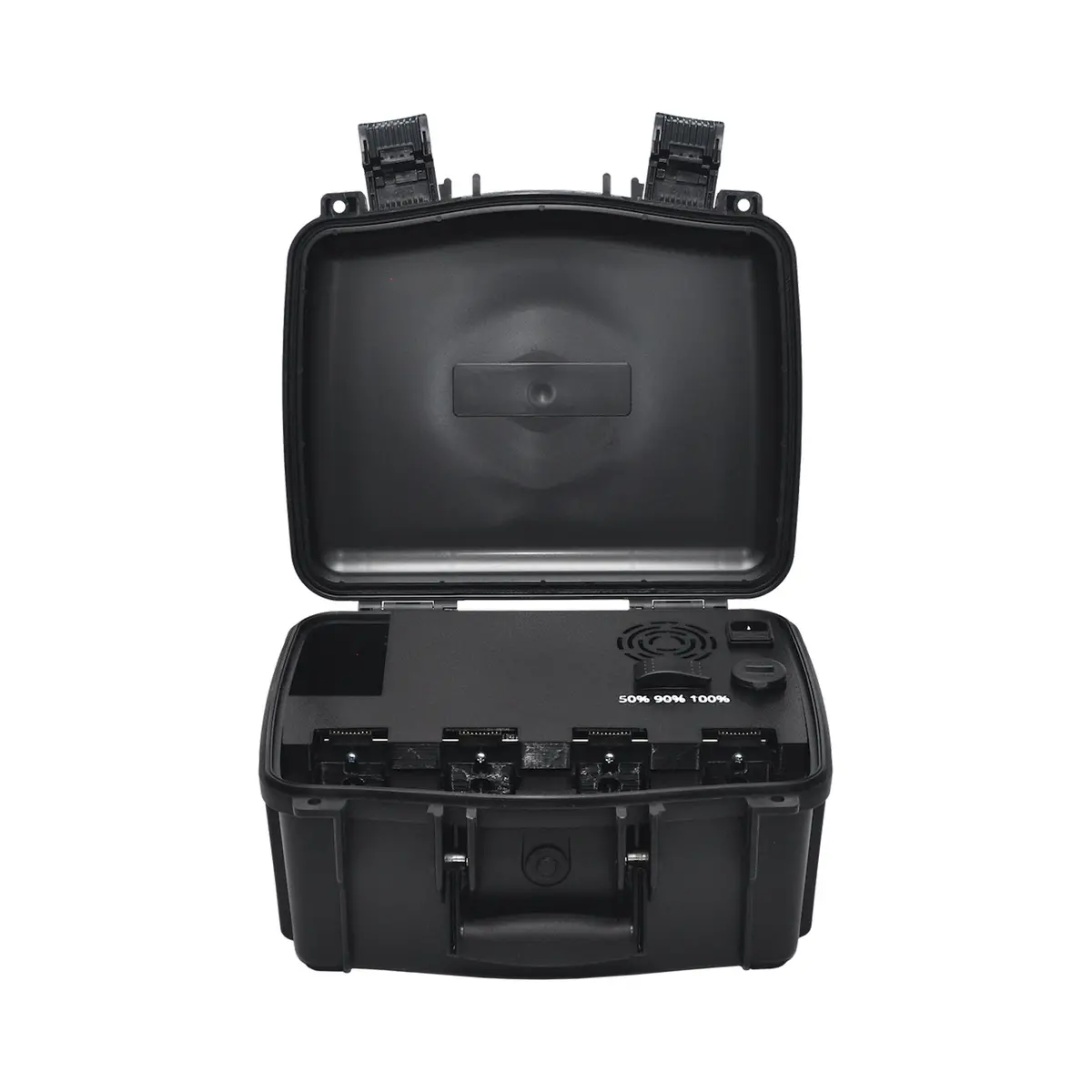

The Colorado Drone Chargers PRCS (Portable Rapid Charging System) for DJI Matrice 4T is a multi-battery solution that charges four flight batteries and two USB devices simultaneously. Select 50%, 90%, or 100% target levels to match your mission—turn aircraft faster with fewer batteries in rotation.

Four Batteries + Two USB, All at Once

Top off four Matrice 4T Intelligent Flight Batteries while powering one USB-A and one USB-C accessory. Typical turnaround is ~60 minutes from 20% to 90%, sustaining a 100% duty cycle for continuous field ops.

Smart, Selectable Charge Modes

Choose 50% for storage and longevity, 90% for rapid redeployments, or 100% for maximum endurance. Integrated voltage and temperature management with multi-fan cooling protects packs while optimizing throughput.

Field-Ready Power Flexibility

Runs on 88–264 VAC, 47–63 Hz from pure or modified sine-wave sources—ideal for inverters and generators. System output is 17 VDC for reliable, consistent charging wherever the job takes you.

Rugged, Portable Build

Housed in an impact-resistant, watertight, dust-proof hard case for real-world abuse. Compact footprint (14″ × 12″ × 6.9″) and 10.1 lb carry weight (without batteries) make transport simple between sites.

Note: Batteries not included. Includes lifetime warranty and free shipping within the contiguous U.S.

Specs

Electrical

Input Voltage	88–264 VAC (Automatic Switching)
Frequency	47–63 Hz
Max Power Rating	500 W
Output Voltage	17 VDC
Power Sources	Pure sine-wave or modified sine-wave (inverters & generators supported)

Charging Performance

Battery Compatibility	DJI Matrice 4T Intelligent Flight Batteries
Parallel Charging	4 flight batteries + 2 USB accessories simultaneously
USB Outputs	1 × USB-A, 1 × USB-C
Charge Modes	Selectable: 50%, 90%, or 100% target SOC
Typical Charge Time	~60 minutes (20% → 90%)
Duty Cycle	100% (continuous operation)
Battery Protection	Safe voltage & temperature management with multi-fan active cooling

Enclosure & Environmental

Protective Case

Impact-resistant, watertight, and dust-proof hard case

Physical

External Dimensions	14″ × 12″ × 6.9″
Weight (No Batteries)	10.1 lb

Warranty & Shipping

Batteries Included	No (sold separately)
Warranty	Lifetime warranty
Shipping	Free shipping in the contiguous U.S.

Compatibility

DJI Matrice 4 Enterprise
DJI Matrice 4 Thermal
