Autel Alpha Drone with L35T Thermal Camera Bundle

Description

Autel Alpha is an intelligent multi-purpose industrial drone, boasting significant enhancements in autonomous flight capabilities, anti-interference capabilities, obstacle avoidance capabilities, transmission technology, and battery systems.
With a foldable design and IP55-rating level, it tackles challenging environments. The built-in RTK dual-antenna system ensures precise control within millimeters when conducting the missions. The DG-L35T gimbal integrates a 560x super hybrid zoom camera, dual thermal imaging cameras, ultra-sensitive starlight night vision camera, and laser rangefinder, providing more professional and comprehensive solutions for public safety, energy inspections, emergency management.

 Specs

Aircraft

Weight (Battery and gimbal included)	13.77 lbs. (6250g)
Max. takeoff weight	18.5 lbs (8400g)
Diagonal Wheelbase	32″ (814mm)
Max Flight Time (windless)	40 mins
Max Hovering Time (windless)	38 mins
Max Horizontal Speed (windless near sea level)	25 m/s
Max Wind Resistance	12 m/s
Hovering Accuracy	Vertically: ±0.1 m (when vision systems working normally); ±0.3 m (when GNSS working normally); Horizontally: ±0.15 m (when vision systems working normally); ±0.3 m (when GNSS working normally)
IP Rating	IP55
Operating Temperature	-4°F to 122°F (-20℃ – 50℃)
Max Angular Velocity	Pitch: 300 Degree/s; Yaw: 120 Degree/s
Operating Temperature	-4 Degree F to 122 Degree F (-20 Degree C – 50 Degree C)
GNSS	GPS+GLONASS+BeiDou+Galileo

DG-L35T

Autel Alpha Wide Camera

Sensor	1/2 CMOS, Effective pixels: 48M
Lens	Equivalent Focal Length: 24 mm Aperture: f/2.8 Focusing Distance: 1m ~ ∞
ISO Range	ISO100~ISO3200

Autel Alpha Zoom Camera

Sensor	1/1.8″ CMOS
Zoom Range	Optical Zoom: 1.4~35 times Hybrid Zoom: 35~560 times
ISO Range	Photo: ISO100~ISO6400 Video: ISO100~ISO6400 (Ultra-sensitive starlight vision: up to ISO160000)
Photo	Format: 8bit JPG，12bit DNG Resolution: 3840*2160
Video	Format: MP4/MOV Max Resolution: 3840*2160 P30
Max Photo Size	8000 x6000
Max Video Resolution	7680 x4320

Autel Alpha Thermal Camera (Wide)

Sensor	Uncooled VOx Microbolometer
Lens	FOV：42° Focal length: 13mm Aperture: f/1.2
Resolution	640*512 P25
Temperature Measurement Range	-20℃ to +150℃, 0℃ to +550℃
Temperature Measurement Accuracy	“3℃ or ±3% of reading (using the larger value) @ ambient temperature range from -4℉ to 140℉ (-20℃ to 60℃)”

Autel Alpha Thermal Camera (Tele)

Thermal Imager	Uncooled VOx Microbolometer
Lens	FOV：12.3° Focal length: 45mm Aperture: f/1.2
Zoom Range	Wide Digital Zoom: 1~3.5 times Tele Digital Zoom: 3.5~56 times
Resolution	640*512 P25
Temperature Measurement Range	-20℃ to +150℃，0℃ to +550℃
Temperature Measurement Accuracy	3℃ or ±3% of reading (using the larger value) @ ambient temperature range from -4℉ to 140℉ (-20℃ to 60℃)

Autel Alpha Laser Rangefinder

Measurement Accuracy	10-2000m
Measuring Range	± (1m + D×0.15%) *D is the distance to a vertical surface

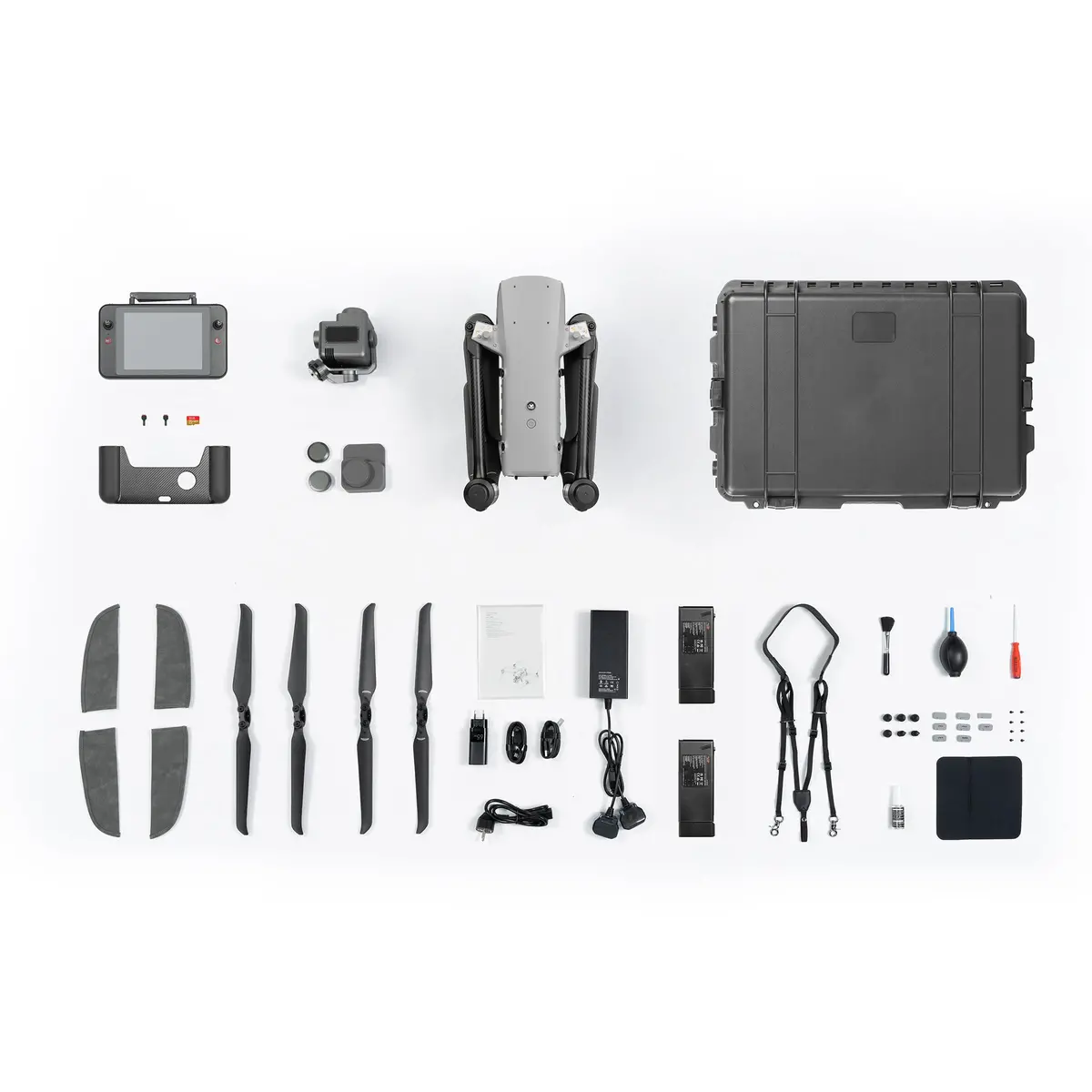

IN THE BOX

(1) Autel Alpha Aircraft with Propellers and L35T Gimbal
(1) Spare Pair Propellers (1 CW, 1 CCW)
(1) Autel Smart Controller V3
(1) AC Power Cable
(1) Battery Charger
(1) 128GB SD Card
(1) 1 Pair Alpha Smart Battery
(1) Dust Blower
(1) Cleaning Kit
(1) Autel Alpha Rugged Case
