Description

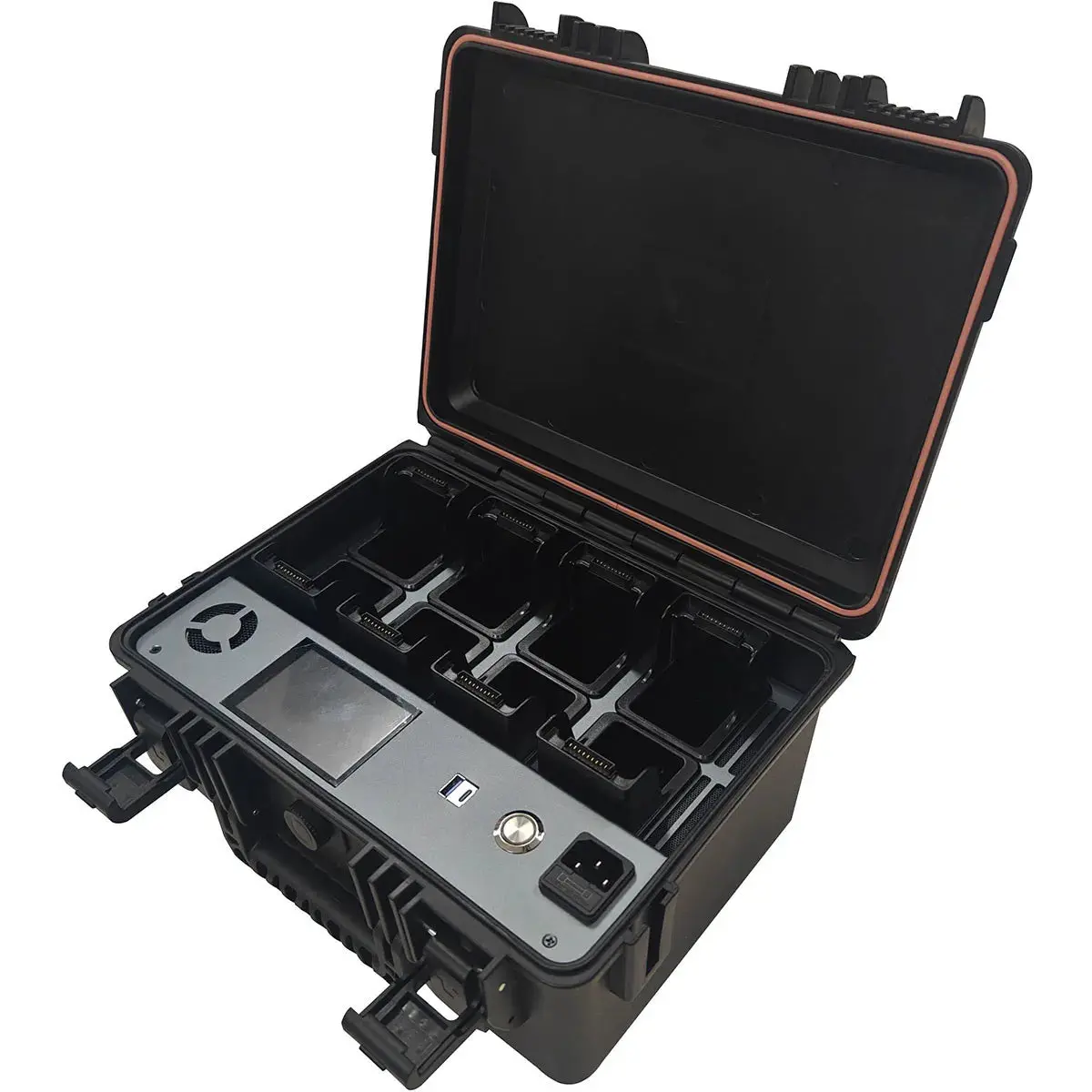

The AK M4T8 is a lightweight, fleet-ready charging hub built specifically for DJI Matrice 4 Series batteries. With a 600 W power budget and 8 charging channels (each supporting up to 150 W fast charging), it turns battery swaps into short turnarounds—while on-screen controls, health protections, and active cooling keep operations predictable and safe.
Fast, Flexible Fleet Charging
Choose the mode that fits your flight cadence. Fast Mode prioritizes quick turnarounds—charging ~3 batteries to ~90% in about 35–40 minutes. Standard Mode brings packs to 100% across the bank, with typical times of ~75–110 minutes for 8 batteries (manufacturer guidance: ~110 min at 220–240 VAC, ~120 min at 100–120 VAC). Storage Mode holds packs around 60% to help minimize long-term degradation.
Touchscreen Control & Telemetry
A 3.5-inch (8.89 cm) touchscreen provides per-slot status—low level, charging, full, or abnormal—plus quick access to Fast, Standard, and Storage modes. USB convenience power is built-in for field devices: USB-A 18 W and USB-C 45 W (DP protocol supported).
Battery Health & Safety
The hub’s MCU continuously monitors pack and system parameters and can cut charging on anomalies. Dynamic-current algorithms optimize charge profiles to reduce heat and extend battery longevity. Protection layers include over-/under-voltage, over-current, over-temperature, short-circuit, no-load, overcharge, overload, anti-backflow, and protocol safeguards. A high-performance fan maintains stable operation under continuous duty.
Field-Ready Design
Built for travel and trailer-bay deployments, the M4T8 weighs about 7.82 lb (≈3.55 kg) and measures 12.83 × 6.61 × 10.12 in (326 × 168 × 257 mm). Wide-range AC input 100–260 VAC, 50–60 Hz simplifies power in the field, and the operational envelope of 41–104 °F (5–40 °C) covers most mission environments.
Power I/O & Compatibility
Designed for the DJI Matrice 4E/T Series Intelligent Flight Battery, the hub supports eight simultaneous connections within its 600 W budget. Auxiliary device charging is available via USB-A 18 W and USB-C 45 W. UPC: 6976314660046.
Key Features
- 8-way hub for Matrice 4 Series batteries; each channel supports up to 150 W fast charging (total 600 W)
- 3.5″ touchscreen with live slot status and mode selection (Fast / Standard / Storage)
- Multiple protections: over-/under-voltage, over-current, temperature, short-circuit, no-load, overcharge, overload, anti-backflow, protocol
- Dynamic current charging to reduce heat and help minimize pack degradation
- USB convenience power: USB-A 18 W; USB-C 45 W (DP)
- Operating temp: 41–104 °F (5–40 °C); Active cooling with high-performance fan
- Dimensions: 12.83 × 6.61 × 10.12 in (326 × 168 × 257 mm); Weight: 7.82 lb (≈3.55 kg)
- Input: 100–260 VAC, 50–60 Hz
Specs
AK M4T8 Specifications
Electrical & Charging
| Charging Channels | 8 (each channel supports up to 150 W fast charging; total power budget 600 W) |
|---|---|
| Max Power | 600 W |
| AC Input | 100–260 VAC, 50–60 Hz |
| USB-A Output | 18 W |
| USB-C Output | 45 W (DP protocol supported) |
Interaction & Control
| Display | 3.5″ (8.89 cm) touchscreen |
|---|---|
| Charging Modes | Fast / Standard / Storage |
| Status Indicators | Low level, Charging, Full, Abnormal |
| Charge Management | MCU monitors battery status; auto cut-off on anomalies; dynamic current optimization |
Charging Performance
| Fast Mode | ≈35–40 min to charge ~3 batteries to ~90% |
|---|---|
| Standard Mode (8 batteries) | ≈110 min at 220–240 VAC; ≈120 min at 100–120 VAC |
| Field Guidance | ≈75–110 min to charge 8 batteries to 100% (conditions dependent) |
| Storage Mode | Maintains batteries around ~60% state of charge |
Protection & Safety
| Protections | Over-temperature/overheat, Over-voltage, Under-voltage, Over-current, Short-circuit, No-load, Overcharge, Overload, Anti-backflow, Protocol protection |
|---|---|
| Cooling | High-performance active fan |
Environmental
| Operating Temperature | 41–104 °F (5–40 °C) |
|---|
Mechanical
| Dimensions | 12.83 × 6.61 × 10.12 in (326 × 168 × 257 mm) ±1% |
|---|---|
| Weight | ≈7.82 lb (≈3.55 kg) ±5% (excludes cable weight) |
| Color | Black |
Compatibility & Identifiers
| Battery Compatibility | DJI Matrice 4E/T Series Intelligent Flight Battery |
|---|
Compatibility
DJI Matrice 4 Series Intelligent Flight Battery:
- Matrice 4E
- Matrice 4T
