Description

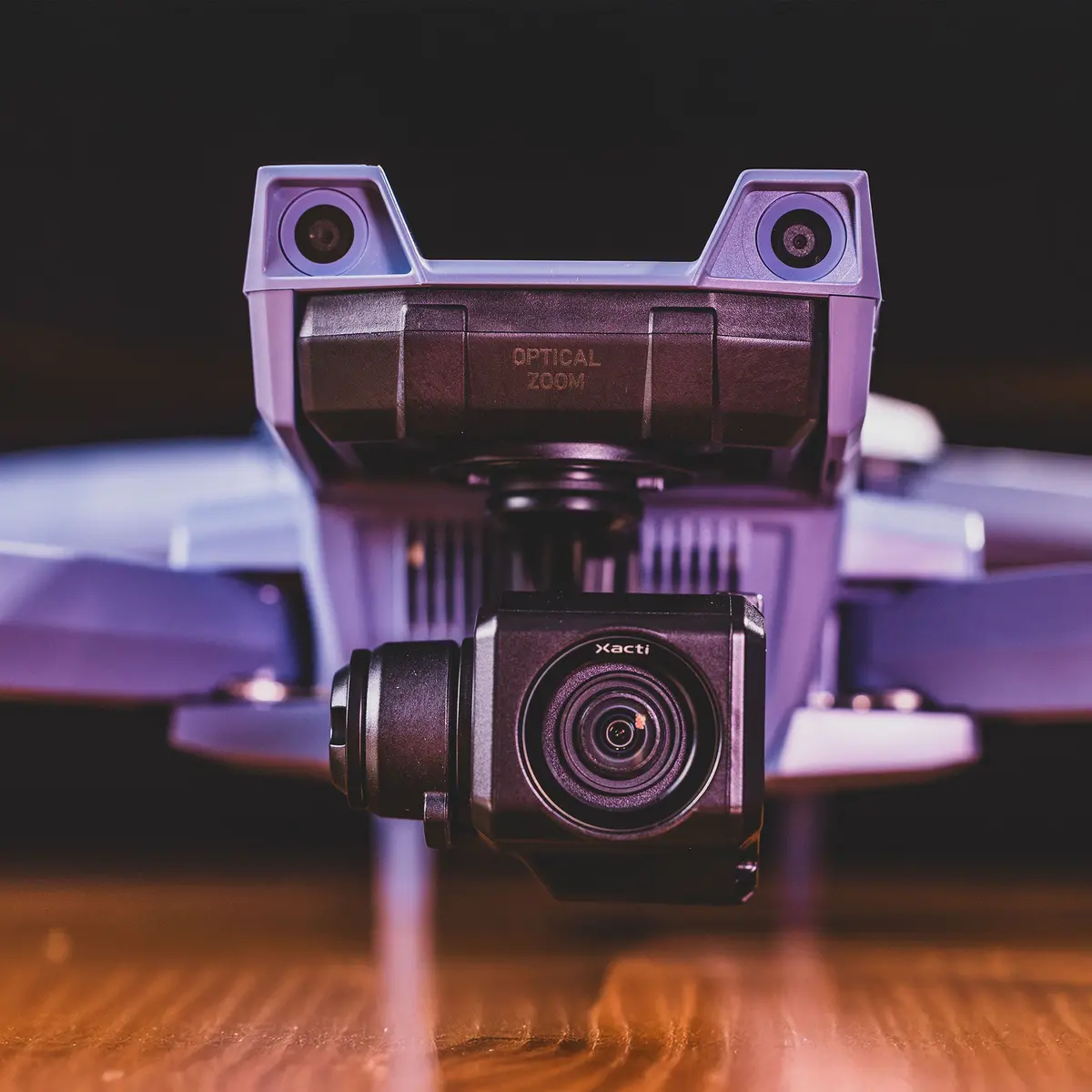

he ACSL SOTEN Optical Zoom Camera is a high-performance imaging payload designed for the ACSL SOTEN NDAA-compliant drone. Featuring a 2.5x optical zoom, 10x digital zoom, and 25x total zoom, it enables operators to capture both wide-area views and detailed close-ups for critical inspections, surveillance, and reconnaissance. Its 20MP 1/2.3-inch CMOS sensor, mechanical shutter, and adjustable aperture (f/2.0 – f/3.0) ensure high-quality imagery with minimal motion blur.
Built for mission adaptability, the CX-GB400 Zoom Camera integrates seamlessly with SOTEN’s swappable camera system, allowing for quick transitions between optical, thermal, multispectral, and standard RGB payloads. Compact and lightweight, it offers real-time image transmission and intuitive controls, making it an essential tool for public safety, infrastructure inspection, and defense operations.
Specs
CX-GB400 Zoom Camera
| Image Sensor | 1/2.3-inch CMOS |
| Effective Pixels | 20MP |
| Lens FOV | HFOV 64°, VFOV 44°, DFOV 73° (Wide) HFOV 43°, VFOV 30°, DFOV 51° (Tele) |
| Focal Length (35mm Equivalent) | 28mm (Wide) / 18-45mm (Zoom) |
| Aperture Range (F-Stop) | Wide: f/2.0 / Tele: f/3.0 |
| Mechanical Shutter Speed | 8 sec – 1/2000 sec |
| Electronic Shutter Speed | 8 sec – 1/8000 sec |
| ISO Sensitivity | Auto, 100–6400 |
| Still Image Size | JPEG: 3600 × 2400 (9MP) DNG: 3616 × 2414 (9MP) |
| Still Image Format | JPEG, DNG, JPEG+DNG |
| Interval Shooting (Minimum Interval) | JPEG: 2 sec DNG: 5 sec |
| Video Resolution & Frame Rate | 4K (3840 × 2160) / 30p |
| Video Format | MOV / H.264 |
| Streaming (UVC Protocol) | MJPEG Full HD / 30p |
| Supported SD Cards | microSD (UHS Speed Class U3, Video Speed Class V30 or higher, up to 512GB) |
| Dimensions (mm) | 78W × 87H × 72D |
| Weight | ~195g |
| Dust & Water Resistance | JIS C 0920 IP4X (IP43 when mounted on SOTEN drone) |
| Power Requirements | 12V, max power consumption 12W |
| Operating Conditions | Temperature: 0°C – 40°C Humidity: 10% – 90% |
| Interfaces | USB (UVC / Control signals) |
| Connection | 10-pin pogo connector |
| Gimbal Control Axes | 3-axis stabilization (Pan, Tilt, Roll) |
| Minimum Control Angle | ±0.02° |
| Motion Range | Pan: ±90° Tilt: -120° to +50° Roll: ±30° |
| Operational Motion Range | Pan: ±85° Tilt: -115° to +45° |
| Max Control Speed | Pan: 60°/s Tilt & Roll: 100°/s |
In the Box
(1) ACSL SOTEN Optical Zoom Camera (CX-GB400)
Compatibility
ACSO SOTEN
