Description
Designed for premium ADV and touring motorcycles, the ATLAS 3.5” delivers high-output performance in a compact, aggressive form factor—perfectly suited for models such as ADV, Touring, Harley, Pan America, BMW GS, CF Moto 450MT, and similar mid-to-large displacement bikes.
Good News: The 2nd batch of inventory has arrived, place your order now.
Signature Optical Design
The front profile features five high-efficiency reflector cups arranged in a petal layout, centered around a projector-style primary LED. This hybrid optical structure delivers:
- Focused long-range penetration
- Wide peripheral coverage
- Aggressive, high-end visual presence
Output: 87W per pair
Brightness: Up to 9500 lumens per pair
Engineered for Real-World Riding
- Dense rear heat-sink structure for sustained thermal stability
- Heavy-duty U-shaped bracket for upright or suspended mounting
- Included pipe clamp mounts (fits 0.78–1.18 inch / 20–30mm bars)
-
Compatible with crash bars and auxiliary mounting points
Multi-Mode Intelligent Control System
Supplied with a dedicated waterproof harness for advanced functionality:

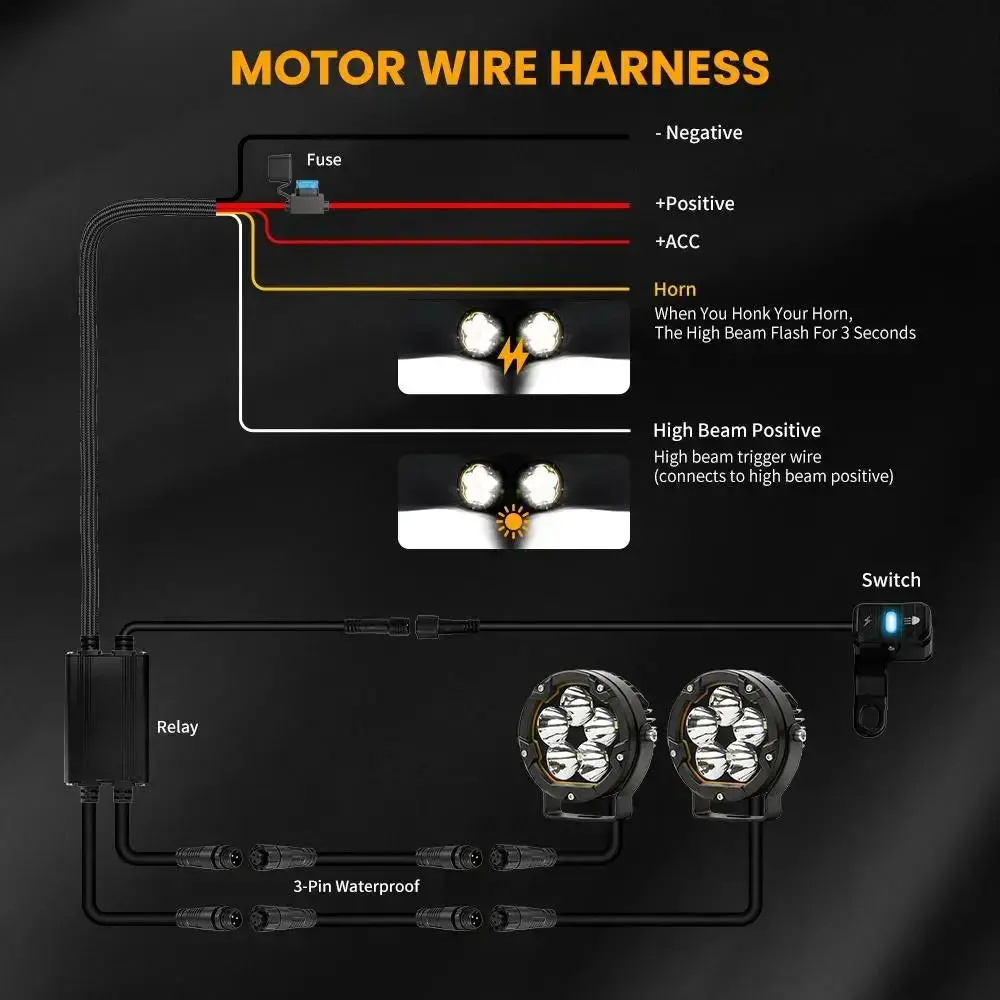

Wiring Overview
- Black: Ground/Negative
- Red: Main positive
- Red (ACC) wire: Ignition-triggered power (prevents battery drain)
- Yellow wire: Horn trigger (3-second strobe when horn is pressed)
- White wire: Connect to passing beam for flash alert or connect to high beam for synchronized operation
Functional Control
- Short Press – Main Beam Switch→ Main beam ON
- Short Press – Strobe Switch→ Main beam OFF
- Long Press – Strobe Switch (Cycle Modes)
→ Simultaneous strobe
→ Alternating strobe
→ Slow flash
→ Repeat - Long Press – Main Beam Switch (Cycle DRL Modes)
→ DRL Slow Flash
→ DRL OFF
→ DRL ON
→ Repeat
The light powers on with amber DRL by default. The DRL remains on by default after each restart.
Convertible Lens Protection
Included protective PC covers:
- Black cover – added protection and stealth styling
- Yellow cover – converts white beam into yellow output for fog, rain, and dust conditions
Important Note (Japanese Motorcycles)
Some Japanese motorcycles use reversed polarity in auxiliary lighting circuits.
In such cases, an additional polarity-conversion adapter may be required (not included).
Q: Can the 3.5″ Atlas Series be connected via HEX EZCAN?
A: Not recommended. We advise using the included wiring harness for installation, which enables more lighting functions and full performance.
